Eaton / Moeller Series

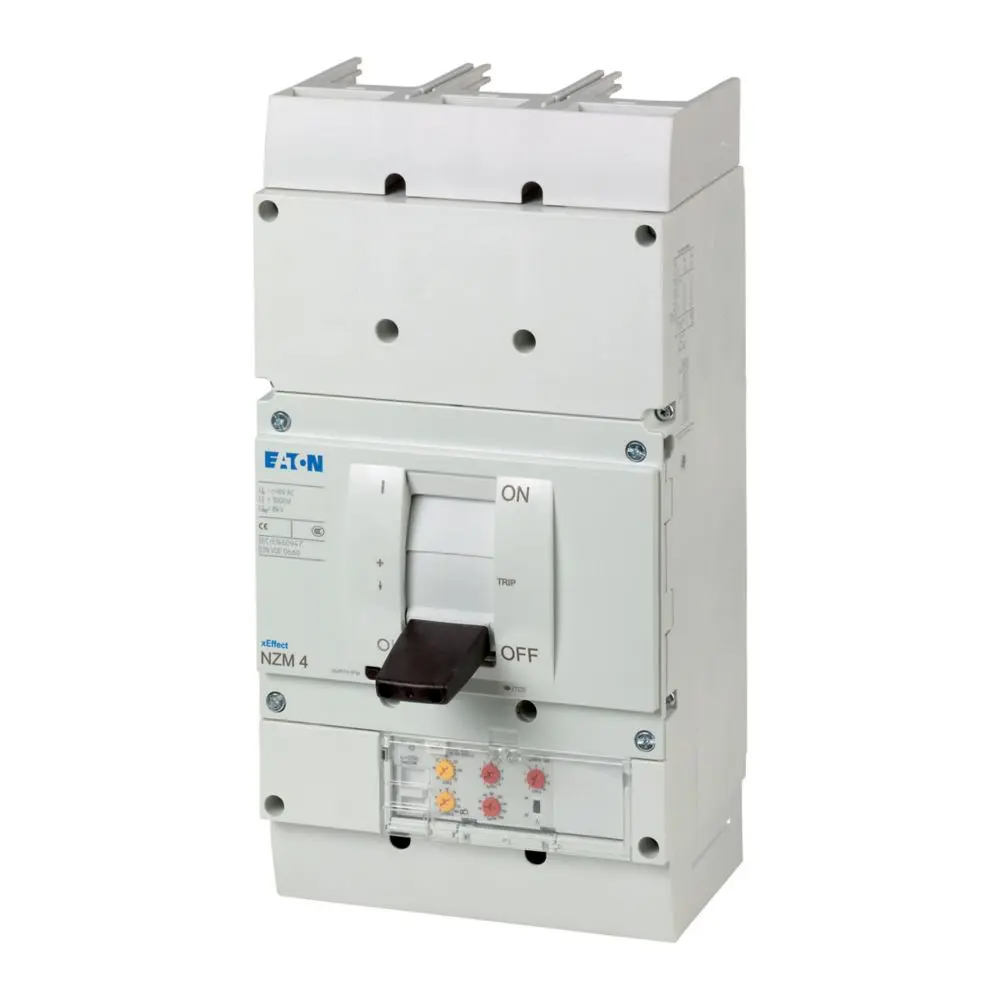

Eaton NZM circuit breaker, 1600 A, 690 V, electronic release, three-pole.
Eaton Moeller series NZM molded case circuit breaker electronic, Catalog Number 283217, Model Code NZML4-VE1600, Amperage Rating 1600 A, Voltage Rating 690 V, Circuit Breaker Frame Type NZM4, Compliance RoHS conform, Certifications IEC/EN 60947.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller series NZM molded case circuit breaker electronic |
| Catalog Number | 283217 |
| Model Code | NZML4-VE1600 |
| Compliance | RoHS conform |
| Certifications | IEC/EN 60947 |
| Number of Poles | Three-pole |
| Handle Type | Rocker lever |
| Release System | Electronic release |
| Specification | Value |
|---|---|
| Amperage Rating | 1600 A |
| Voltage Rating | 690 V - 690 V |
| Circuit Breaker Frame Type | NZM4 |
| Temperature Rise | Panel builder's responsibility |
| Short-Circuit Rating | Panel builder's responsibility |
| Electromagnetic Compatibility | Panel builder's responsibility |
| Pollution Degree | 3 |
| Climatic Proofing | Damp heat, constant, to IEC 60068-2-78 |
| Equipment Heat Dissipation | 284 W |
| Isolation | 300 V AC (between auxiliary contacts), 500 V AC (between auxiliary contacts and main contacts) |
| Ambient Operating Temperature - Max | 70 °C |
| Ambient Operating Temperature - Min | -25 °C |
| Rated Short-Circuit Breaking Capacity ICS | 63 kA at 230 V, 50/60 Hz |
| Rated Short-Circuit Making Capacity ICM | 220 kA at 400/415 V, 50/60 Hz |
