Eaton / Moeller Series
250A, 3P, thermal-magnetic breaker

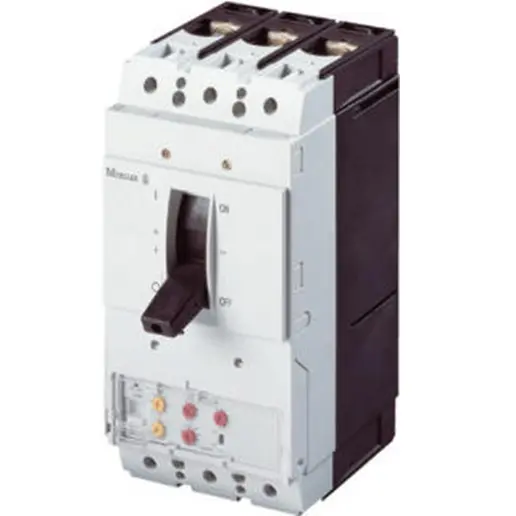

The Eaton NZMH3-AEF250-NA is a complete Series NZM molded case circuit breaker built on the NZM3 frame, featuring a thermal-magnetic trip unit for combined overload and short-circuit protection. Rated for 250 amperes, it supports operational voltages up to 690 V AC and offers an interrupting capacity of 100 kAIC at 480 V AC. This three-pole MCCB includes a rocker lever actuator and motor drive and is designed for front-panel mounting using screw terminals. Ideal for high-performance distribution circuit protection in industrial and commercial installations.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Manufacturer | Eaton |
|---|---|
| Catalog Number | NZMH3-AEF250-NA |
| Series | NZM |
| Frame Type | NZM3 |
| Circuit Breaker Type | NZMH3 |
| Trip Type | Thermal-Magnetic |
| Poles | 3 |
| Amperage Rating | 250 A |
| Voltage Rating | 690 V AC |
| Interrupting Capacity | 100 kAIC @ 480 V AC |
| Actuator Type | Rocker Lever with Motor Drive |
| Mounting | Front screw |
| Certifications | UL Listed |

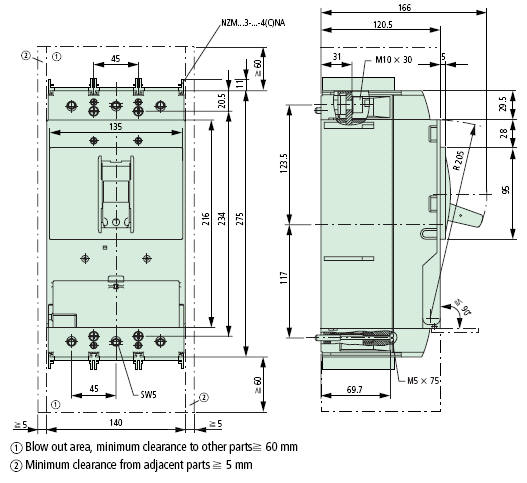

| Product Length/Depth | 11.693 in |
|---|---|
| Product Height | 5.512 in |
| Product Width | 6.535 in |
| Weight | 13.95 lb |
| Warranty | 1 year from installation / 18 months from shipment |
| EAN | 4015082692834 |
| Standards | UL Listed |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
