Eaton / Moeller Series
250A, 3P, breaker, electronic adjustable, IEC

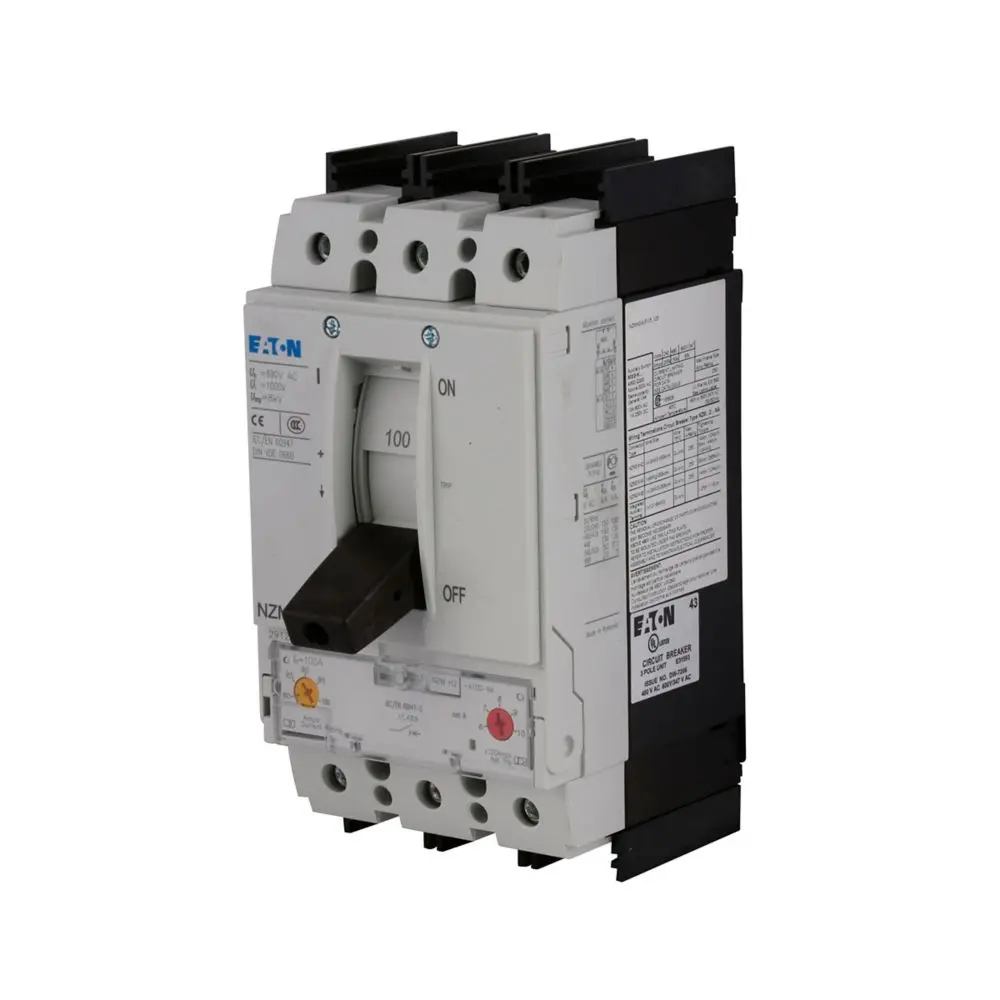

The Eaton NZMH2-VE250 is a 3-pole molded case circuit breaker designed for high-performance system, cable, and generator protection. Rated at 250A with an electronic trip unit, it offers adjustable overload and short-circuit protection from 125 A to 250 A and up to 3000 A respectively. Featuring a compact NZM2 frame, the unit delivers high switching capacities up to 150 kA at 400/415 V AC and includes integrated features like thermal memory and RMS current sensing. It complies with IEC/EN 60947 standards and is ideal for demanding industrial applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | Moeller NZM |
| Model | NZMH2-VE250 |
| Catalog Number | 259127 |
| Product Type | Molded Case Circuit Breaker |
| Frame Size | NZM2 |
| Trip Type | Electronic (adjustable) |
| Amperage | 250 A |
| Poles | 3 |
| Operator | Rocker lever |
| Mounting | Fixed, DIN rail optional |
| Weight | 2.345 kg |
| Dimensions | Not specified |
| Voltage Rating | 690 V AC |
|---|---|
| Rated Insulation Voltage (Ui) | 1000 V AC |
| Rated Impulse Withstand Voltage | 8000 V (main), 6000 V (aux) |
| Interrupting Capacity (Icu @ 400 V) | 150 kA |
| Interrupting Capacity (Icu @ 690 V) | 20 kA |
| Short-Circuit Making Capacity (Icm @ 400 V) | 330 kA |
| Short-Time Withstand Current (1s) | 1.9 kA |
| Overload Trip Setting (Ir) | 125–250 A |
| Short-Circuit Trip Setting (Ii) | 3000 A (fixed) |
| Short Delay Setting (Isd) | 2–10 × Ir |
| Utilization Category | A (IEC/EN 60947-2) |
| Electrical Life (400 V AC-1) | 10,000 operations |
| Mechanical Life | 20,000 operations |
| Protection Degree | IP20 (device), IP66 (with rotary handle) |
| Ambient Operating Temp | -25 °C to +70 °C |
| Terminal Type | Screw connection |
| Terminal Capacity (Copper Stranded) | Up to 185 mm² |
| Standards | IEC/EN 60947, VDE 0106 |
| Climatic Proofing | IEC 60068-2-78 / 60068-2-30 |
