Eaton / Moeller Series
160A, 3P, breaker, thermal-magnetic motor protection, 150 kAIC, 690 Vac/750 Vdc

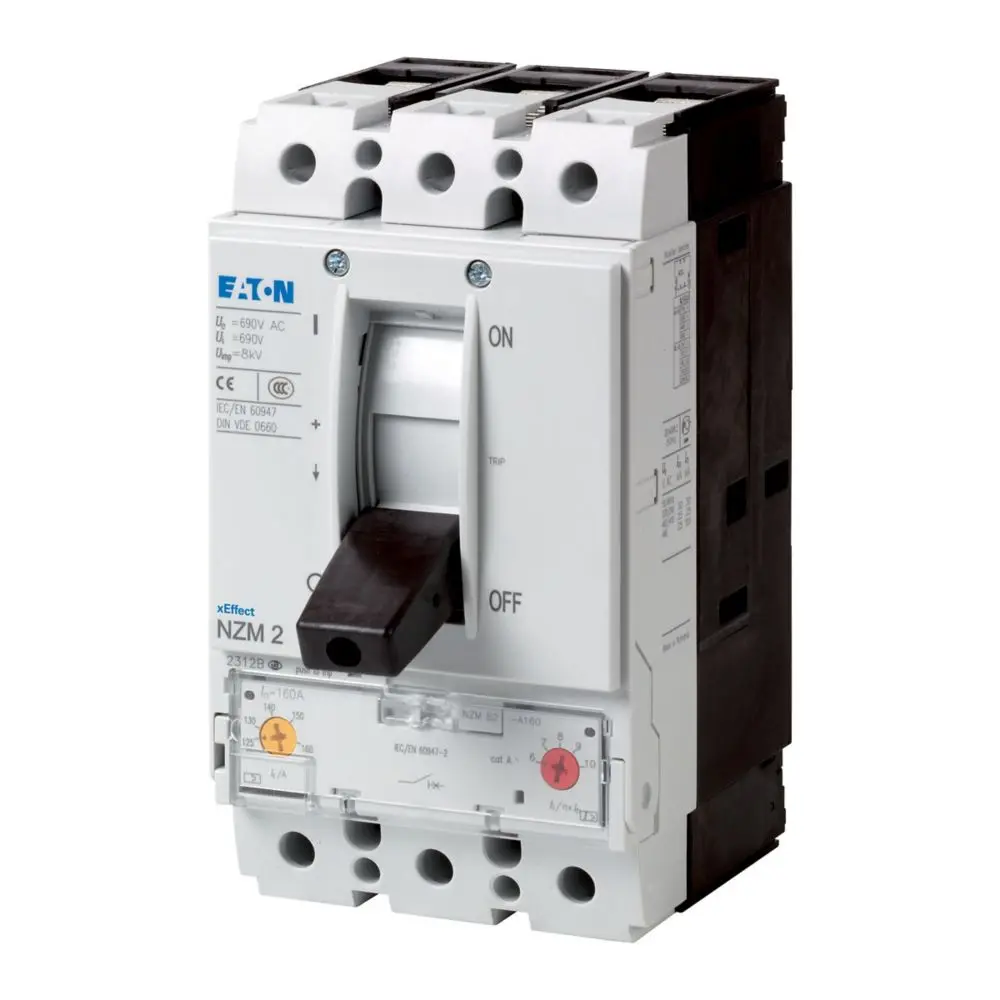

The Eaton NZMH2-M160 is a 3-pole molded case circuit breaker in the NZM2 frame, designed for motor protection applications. Rated at 160 A, it features a thermal-magnetic trip unit with an overload protection setting range of 160–200 A and a delayed trip rating of 1600–2800 A. The unit supports high fault interruption ratings up to 150 kAIC and operates at voltages up to 690 Vac and 750 Vdc. It includes screw-type terminals and is ideal for motor loads up to 110 kW at 400 Vac. Engineered for reliable performance in demanding industrial environments.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | NZMH2-M160 |
| Series | NZM |
| Product Type | Motor Protection Circuit Breaker |
| Trip Type | Thermal-magnetic (T268) |
| Amperage | 160 A |
| Poles | 3 |
| Frame Size | NZM2 |
| Operator | Screw terminal |
| Mounting | Fixed |
| Voltage Rating | 690 Vac, 750 Vdc |
|---|---|
| Trip Rating | 1600–2800 A (delayed) |
| Overload Setting Range | 160–200 A |
| Short-Circuit Breaking Capacity | 150 kAIC |
| Interrupt Rating | 85–150 kAIC |
| Rated Operational Power | 55 kW @ 230 Vac; 110 kW @ 400 Vac |
| Connection Type | Screw terminal |
| Special Features | Thermal-magnetic switch-off |
| Application | Motor protection |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
