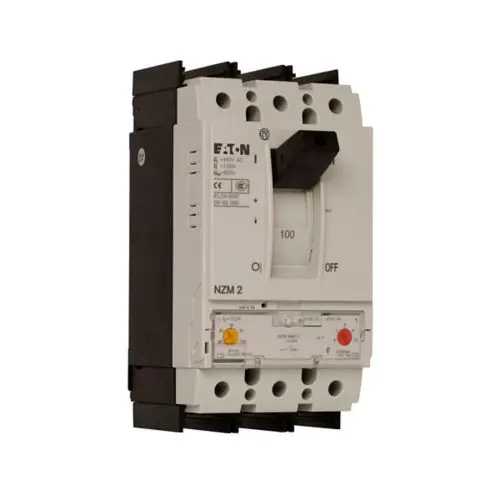

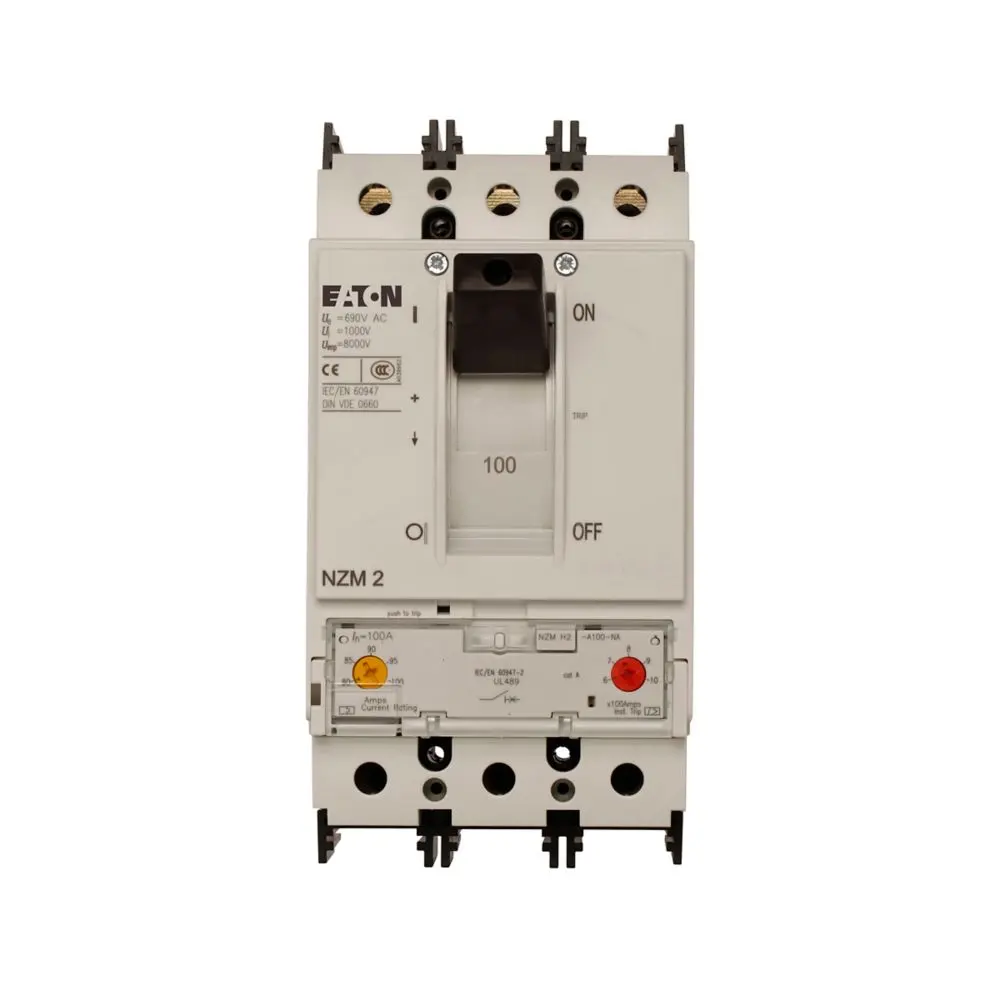

Eaton / Moeller Series
45A, 3P, breaker, thermomagnetic, IEC/UL/CSA/CE/RoHS
The Eaton Moeller series NZM molded case circuit breaker (model NZMH2-AF45-NA) is a 3-pole, 45A thermomagnetic breaker designed for system and cable protection in branch and feeder circuits. Featuring a fixed overload release, this MCCB supports operation up to 690 V AC and offers high short-circuit breaking capacity, ensuring rapid disconnection in fault conditions. It meets a wide range of international standards including IEC 60947-2, UL 489, CSA-C22.2 No. 5-09, and CE, making it ideal for both North American and global applications. The unit is RoHS conformant and provides IP20 protection, with optional enhanced protection via accessories.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | Moeller NZM |
| Model | NZMH2-AF45-NA |
| Catalog Number | 269194 |
| EAN | 4015082691943 |
| Product Type | Molded Case Circuit Breaker |
| Frame Size | NZM2 |
| Trip Type | Thermomagnetic |
| Amperage | 45 A |
| Poles | 3 |
| Operator | Rocker lever |
| Mounting | Fixed; DIN rail optional |
| Weight | 2.345 kg |
| Dimensions (H × W × D) | 195 × 105 × 149 mm |
| Voltage Rating | 690 V AC |
|---|---|
| Rated Insulation Voltage (Ui) | 1000 V AC |
| Rated Impulse Withstand Voltage | 8000 V (main), 6000 V (auxiliary) |
| Interrupting Capacity (Ics @ 400 V) | 150 kA |
| Short-Circuit Breaking Capacity (Icn) | See model-specific rating plate |
| Utilization Category | A (IEC/EN 60947-2) |
| Short-Circuit Total Break Time | < 10 ms |
| Rated Short-Time Withstand Current (1s) | 1.9 kA |
| Overload Current Setting (Ir) | 45 A (fixed) |
| Short-Circuit Release Range | 270 A – 450 A |
| Terminal Type | Screw connection |
| Terminal Capacity (Copper Solid) | Up to 16 mm² |
| Degree of Protection | IP20 (standard), IP40/IP66 (with accessories) |
| Certifications | UL, CSA, CE, IEC 60947-2, RoHS |
| Ambient Operating Temperature | -25 °C to +70 °C |
| Mechanical Life | 20,000 operations |
| Electrical Life | Up to 10,000 operations |
| Shock Resistance | 20 g (20 ms half-sinusoidal) |
| Pollution Degree | 3 |
| Overvoltage Category | III |
