Eaton / Moeller Series
50 A, 690 V, NZM2, 149 mm x 195 mm x 105 mm, 2.404 kg

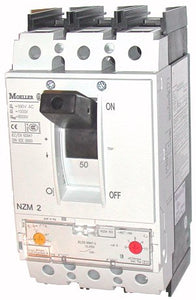

Eaton Moeller series NZM molded case circuit breaker thermo-magnetic, Catalog Number 269232, Model Code NZMH2-A50-NA, EAN 4015082692322, Amperage Rating 50 A, Voltage Rating 690 V, Circuit Breaker Frame Type NZM2, Product Length 149 mm, Height 195 mm, Width 105 mm, Weight 2.404 kg, RoHS compliant, certified by CSA, UL, IEC.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller series NZM molded case circuit breaker thermo-magnetic |
| Catalog Number | 269232 |
| Model Code | NZMH2-A50-NA |
| EAN | 4015082692322 |
| Product Length/Depth | 149 mm |
| Product Height | 195 mm |
| Product Width | 105 mm |
| Product Weight | 2.404 kg |
| Compliance | RoHS conform |
| Certifications | CSA, UL, IEC, CE marking |
| Specification | Value |
|---|---|
| Amperage Rating | 50 A |
| Voltage Rating | 690 V - 690 V |
| Circuit Breaker Frame Type | NZM2 |
| Temperature Rise | Panel builder's responsibility |
| Short-Circuit Rating | Panel builder's responsibility |
| Electromagnetic Compatibility | Panel builder's responsibility |
| Mechanical Function | Meets requirements if IL is observed |
| Corrosion Resistance | Meets product standard's requirements |
| Pollution Degree | 3 |
| Climatic Proofing | Damp heat, cyclic, to IEC 60068-2-30 |
| Rated Operational Current | 300 A (415 V AC-1), 50 A (660-690 V AC-3) |
| Rated Short-Circuit Breaking Capacity | 150 kA at 230 V, 150 kA at 400/415 V |
