Eaton / Moeller Series
63A, 3P, circuit breaker, magnetic only, IEC
The Eaton Moeller NZM1-S63 is a 3-pole molded case circuit breaker rated for 63 A. It features a magnetic-only trip unit for short-circuit protection and is suitable for AC-3 motor protection when used with a separate overload relay. Designed for voltages up to 690 V, it offers short-circuit breaking capacities up to 100 kA (230 V) and 35 kA (400/415 V). The breaker complies with IEC/EN 60947-2 and 60947-4-1 standards and is RoHS conformant. It features front-side rocker operation, is mountable as a fixed unit, and supports various terminal configurations for copper and aluminum conductors. With robust construction, it is ideal for demanding industrial applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Model | NZM1-S63 |
| Catalog Number | 284438 |
| Product Type | Molded Case Circuit Breaker |
| Release Type | Magnetic only |
| Amperage Rating | 63 A |
| Number of Poles | 3 |
| Frame Size | NZM1 |
| Handle Type | Rocker lever |
| Mounting Method | Fixed installation |
| Utilization Category | A (IEC/EN 60947-2) |
| Function | Short-circuit protection |

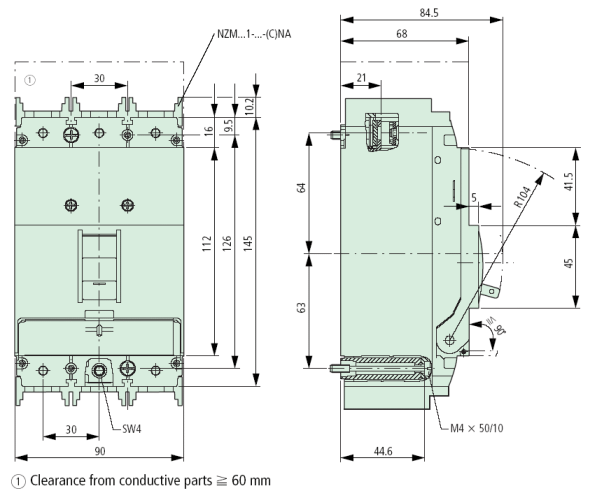

| Product Dimensions (H×W×D) | 145 mm × 90 mm × 84.5 mm |
| Weight | 1.046 kg |
| Certifications | IEC/EN 60947-2, 60947-4-1, RoHS conform |
| Voltage Rating | 690 V AC |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Rated Operational Current (Ie, 400 V AC-3) | 55 A |
| Rated Operating Power at 230 V AC-3 | 18.5 kW |
| Rated Operating Power at 400 V AC-3 | 30 kW |
| Short-Circuit Breaking Capacity Ics (230 V) | 100 kA |
| Short-Circuit Breaking Capacity Ics (400/415 V) | 35 kA |
| Short-Circuit Breaking Capacity Ics (690 V) | 7.5 kA |
| Short-Circuit Making Capacity Icm (400/415 V) | 220 kA |
| Short-Circuit Release Setting | 504–882 A |
| Overload Release | Not included |
| Power Loss | 6.7 W |
| Heat Dissipation | 14.17 W (current dependent) |
| Mechanical Lifespan | 20,000 operations |
| Electrical Lifespan (400 V AC-3) | 7,500 operations |
| Max Operations per Hour | 120 |
| Ambient Temperature Range (Operating) | -25 °C to +70 °C |
| Degree of Protection (Front) | IP40/IP66 (with handle) |
| Degree of Protection (Terminals) | IP00/IP10 |
| Shock Resistance | 20 g / 20 ms |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Connection Type | Box, tunnel, rear screw terminal |
| Cable Terminal Capacity | Up to 95 mm² (copper/aluminum) |
| Control Cable Capacity | 0.75–2.5 mm² |
| Standard Terminals | Box terminal |
| Optional Terminals | Rear screw, tunnel |
