Eaton / Moeller Series
50A, 4P, circuit breaker, thermomagnetic, IEC

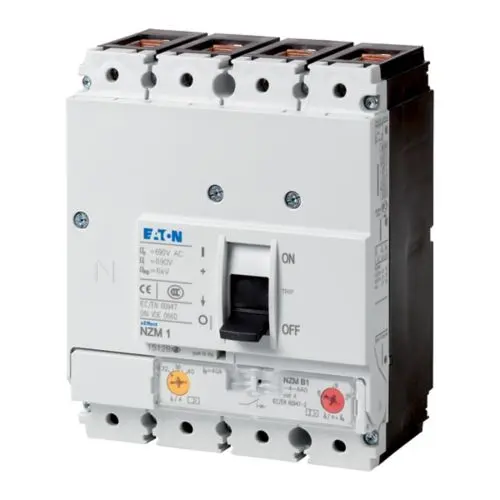

The Eaton Moeller NZM1-4-A50 is a 4-pole molded case circuit breaker with a rated current of 50 A and a thermomagnetic trip unit. Designed for voltages up to 690 V, this device offers excellent protection with a short-circuit breaking capacity up to 100 kA at 230 V. It is ideal for system and cable protection in industrial environments. The circuit breaker meets IEC/EN 60947 standards, is RoHS conformant, and can be DIN rail or fixed mounted. It features robust thermal and mechanical endurance, finger-safe terminals, and is built to withstand extreme operating conditions including temperatures from -25 °C to +70 °C. The unit is front-operated via a rocker handle and supports a range of copper and aluminum cable connections.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Model | NZM1-4-A50 |
| Catalog Number | 284424 |
| Product Type | Molded Case Circuit Breaker |
| Release Type | Thermomagnetic |
| Amperage Rating | 50 A |
| Number of Poles | 4 |
| Frame Size | NZM1 |
| Handle Type | Rocker lever |
| Mounting Method | Fixed (DIN rail optional) |
| Utilization Category | A (IEC/EN 60947-2) |
| Function | System and cable protection |
| Product Dimensions (H×W×D) | 145 mm × 120 mm × 84.5 mm |
| Weight | 1.325 kg |
| Certifications | IEC/EN 60947, RoHS conform |
| Voltage Rating | 690 V AC |
|---|---|
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V |
| Overload Current Setting (Ir) | 40–50 A |
| Short-Circuit Release Setting | 300–500 A |
| Short-Circuit Breaking Capacity Ics (230 V) | 100 kA |
| Short-Circuit Breaking Capacity Ics (400/415 V) | 50 kA |
| Short-Circuit Breaking Capacity Ics (690 V) | 7.5 kA |
| Short-Circuit Making Capacity Icm (400/415 V) | 220 kA |
| Power Loss | 13.2 W |
| Heat Dissipation (Current Dependent) | 13.2 W |
| Mechanical Lifespan | 20,000 operations |
| Electrical Lifespan (400–415 V) | 10,000 operations |
| Max Operations per Hour | 120 |
| Ambient Temperature Range (Operating) | -25 °C to +70 °C |
| Degree of Protection (Front) | IP40/IP66 (with handle) |
| Degree of Protection (Terminals) | IP00–IP10 |
| Terminal Types | Box, tunnel, rear screw |
| Cable Terminal Capacity | Up to 95 mm² (copper/aluminum) |
| Isolation Voltage (Auxiliary/Main) | 300 V / 500 V |
| Shock Resistance | 20 g / 20 ms |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Standards | IEC/EN 60947-2 |
| Climatic Proofing | IEC 60068-2-78, -2-30 (Damp Heat) |
| Direction of Incoming Supply | As required |
| Auxiliary Contacts | 0 (can be added) |
