Eaton / Moeller Series
8A, 3P, breaker, magnetic only, 25 kAIC, IEC
The Eaton NZMB2-S8-BT-CNA is a three-pole, 8A molded case circuit breaker designed for motor protection applications that do not require overload protection. It features a magnetic-only trip unit with a delayed short-circuit release adjustable from 48–84A. This NZM2-frame breaker operates at up to 440 Vac with an interrupting capacity of 25 kAIC. It includes box terminals and connects via front frame clamp. Designed with motor drive and rocker lever accessories, it complies with IEC standards and is ideal for compact, high-performance motor protection.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | NZMB2-S8-BT-CNA |
| Series | NZM |
| Product Type | Molded Case Circuit Breaker |
| Amperage Rating | 8 A |
| Poles | 3 |
| Trip Type | Magnetic only |
| Trip Adjustment Range | 48–84 A delayed |
| Frame Size | NZM2 |
| Class | Motor protection without overload release |
| Voltage Rating | 440 Vac |
|---|---|
| Interrupting Capacity | 25 kAIC |
| Terminals | Box |
| Connection Type | Front frame clamp |
| Accessories | Rocker lever, motor drive |

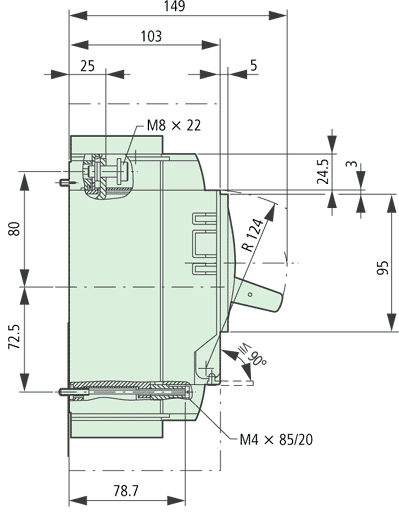

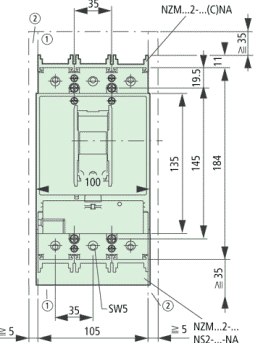

| Dimensions (H × W × D) | 7.24 × 4.13 × 4.05 in |
| Weight | 4.1 lb |
| Certifications | IEC (Contact manufacturer for details) |
| Warranty | 1 year from installation or 18 months from shipment |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
