Eaton / Moeller Series

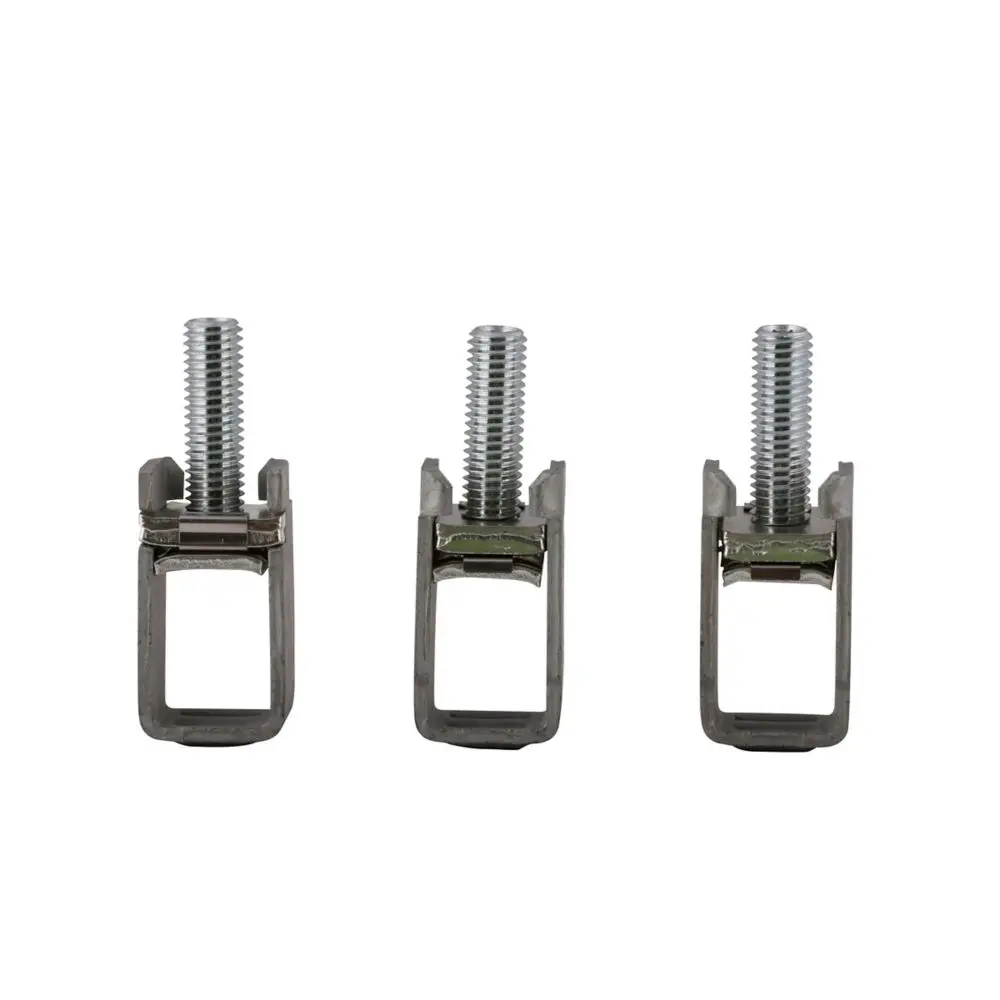

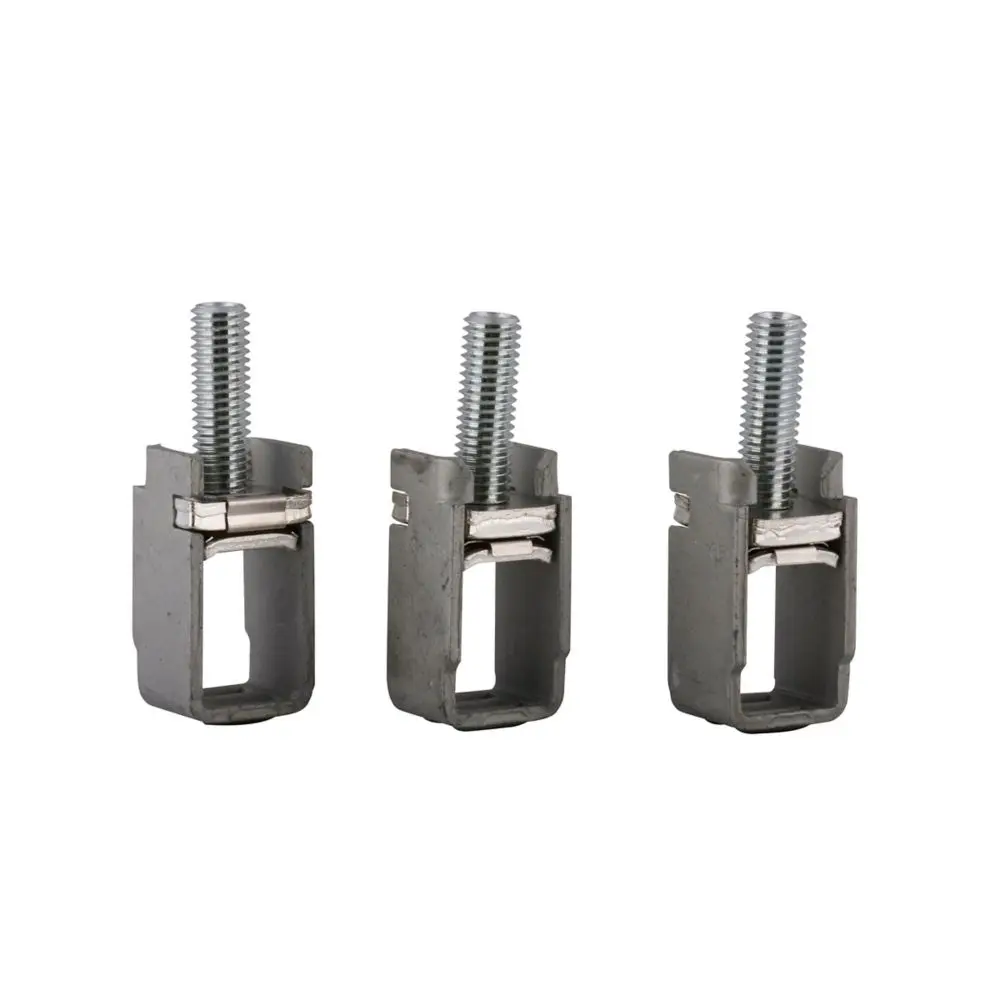

Set of 3 box terminals, rated 250A
NZM2-250-XKC - Box terminal, 3p,, fits N2, PN2, NS2, and NZM2, up to 250A
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Product Name | Eaton Moeller series NZM Connection Type |
|---|---|
| Model | NZM2-250-XKC |
| Part Number | 262244 |
| EAN | 4015082622442 |
| EL Number (Norway) | 4358779 |
| Product Type | Accessories |
| Product Sub Type | Connection Type |
| Tradename | NZM |
| Accessory Type | Box Terminal |
| Used With | NZM2(-4), PN2(-4), N(S)2(-4) |
| Suitable For | 3-Pole, Copper Cable |
| Compliance | IEC, UL/CSA, RoHS |
| Certifications | CE, UL489, CSA-C22.2 No. 5-09, IEC60947 |
| Product Category | Wiring set for circuit breaker (LV < 1 kV) |
| Model | NZM2-250-XKC |
|---|---|
| Part Number | 262244 |
| Poles | 3 |
| Amperage Rating | ≤ 300A |
| Frame | NZM2 |
| Type | Box Terminal |
| Accessory Type | Connection Type |
| Terminal Capacity (Stranded Cable) | 10 mm² – 185 mm² (1x); 10 mm² – 70 mm² (2x); 12 – 350 AWG/kcmil |
| Terminal Capacity (Copper Strip) | 2 × 9×0.8 mm up to 10 × 16×0.8 mm, or 8 × 15.5×0.8 mm |
| Product Dimensions | H: 184 mm, W: 105 mm, D: 103 mm |
| Weight | 0.233 kg |
| Certifications | IEC, UL489, CSA, CE, RoHS |
| Used With | NZM2(-4), PN2(-4), N(S)2(-4) |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
