Eaton / Moeller Series

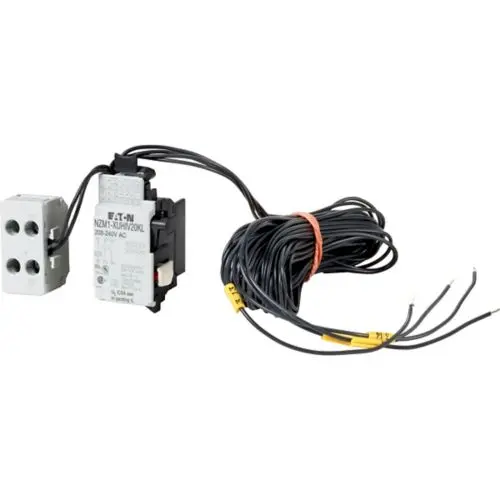

Undervoltage release, 24VAC
Eaton Moeller NZM1-XUHIV20KL24AC undervoltage release accessory, rated at 24VAC with two early-make N/O auxiliary contacts. Designed for NZM1(-4) and N(S)1(-4) series molded case circuit breakers. Used for interlocking, load-shedding, and emergency-stop circuits, it prevents accidental re-closure during undervoltage conditions. Features screw terminal connection, modular design, and early-make timing of approx. 20ms. Not compatible with remote operator (NZM...-XR), early-make contacts (NZM...-XHIV), or shunt release (NZM...-XA). UL listed, CSA certified, and CE marked.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Model | NZM1-XUHIV20KL24AC |
|---|---|
| Catalog Number | 284388 |
| Rated Control Supply Voltage | 24 V AC, 50/60 Hz |
| Voltage Type | AC |
| Early-Make Contacts | 2 N/O |
| Reaction Time | 19 ms |
| Early-Make Time | ~20 ms |
| Connection Type | Screw Terminal |
| Power Consumption | 1.5 VA (AC), 0.8 W (DC) |
| Voltage Tolerance | 0.85 – 1.1 x Us |
| Drop-out Voltage | 0.35 – 0.7 x Us |
| Compatible Frame | NZM1(-4), N(S)1(-4) |
| Mounting | Modular, internal accessory |
| Dimensions (HxWxD) | 66 mm x 32 mm x 37 mm |
| Weight | 0.056 kg |
| Certifications | UL, CSA, IEC, CE, RoHS |
| EAN | 4015082843885 |
| Not Compatible With | NZM...-XR, NZM...-XHIV, NZM...-XA |
| Use Case | Interlock, Load Shedding, Emergency-Stop Circuits |
