Eaton / Moeller Series
Undervoltage release, 110-130V

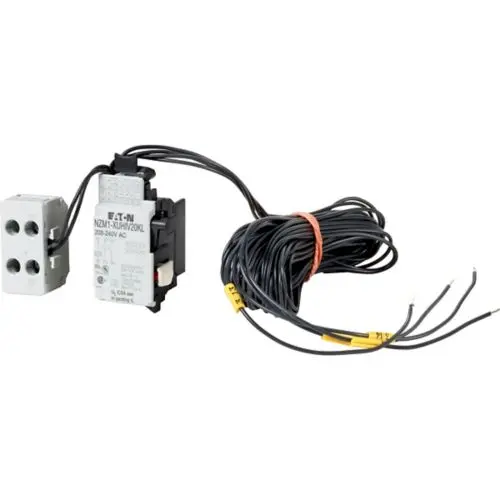

Eaton Moeller series NZM Undervoltage release, 110-130VAC +2early N/O, for NZM1. Specifications include a rated control supply voltage of 110-130 V at 50/60 Hz, with a power consumption of 1.5 VA (AC) and 0.8 W (DC). The device is suitable for off-load switch applications and features two early-make auxiliary contacts.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller series NZM Undervoltage release |
| Catalog Number | 284389 |
| Model Code | NZM1-XUHIV20KL110-130AC |
| EAN | 4015082843892 |
| Used With | NZM1(-4), N(S)1(-4) |
| Frame | NZM1 |
| Number of Contacts (Normally Open Contacts) | 2 |
| Number of Contacts (Normally Closed Contacts) | 0 |
| Number of Contacts (Change-Over Contacts) | 0 |
| Specification | Value |
|---|---|
| Rated Control Supply Voltage (US) at AC, 50 Hz - Max | 130 V |
| Rated Control Supply Voltage (US) at AC, 50 Hz - Min | 110 V |
| Rated Control Supply Voltage (US) at AC, 60 Hz - Max | 130 V |
| Rated Control Supply Voltage (US) at AC, 60 Hz - Min | 110 V |
| Drop-Out Voltage of Undervoltage Release AC/DC - Max | 0.7 x Us |
| Drop-Out Voltage of Undervoltage Release AC/DC - Min | 0.35 x Us |
| Terminal Capacity (Solid/Flexible Conductor) | 18 - 14 AWG (2x) for undervoltage releases, off-delayed |
| Power Consumption (Sealing AC) | 1.5 VA |
| Power Consumption (Sealing DC) | 0.8 W |
