Eaton / Moeller Series

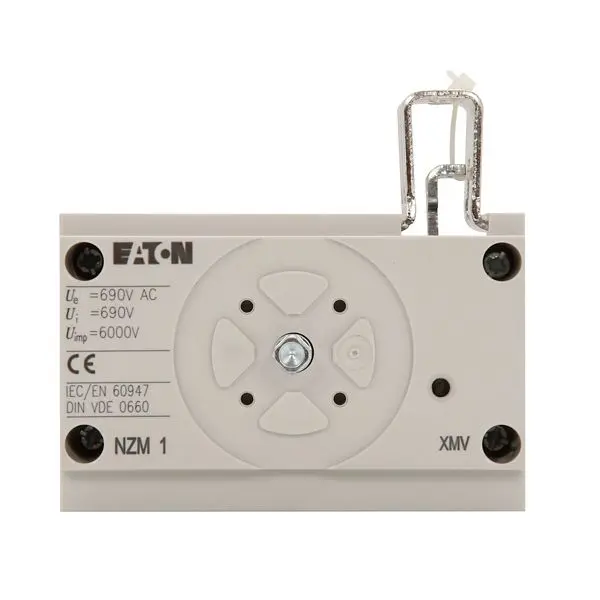

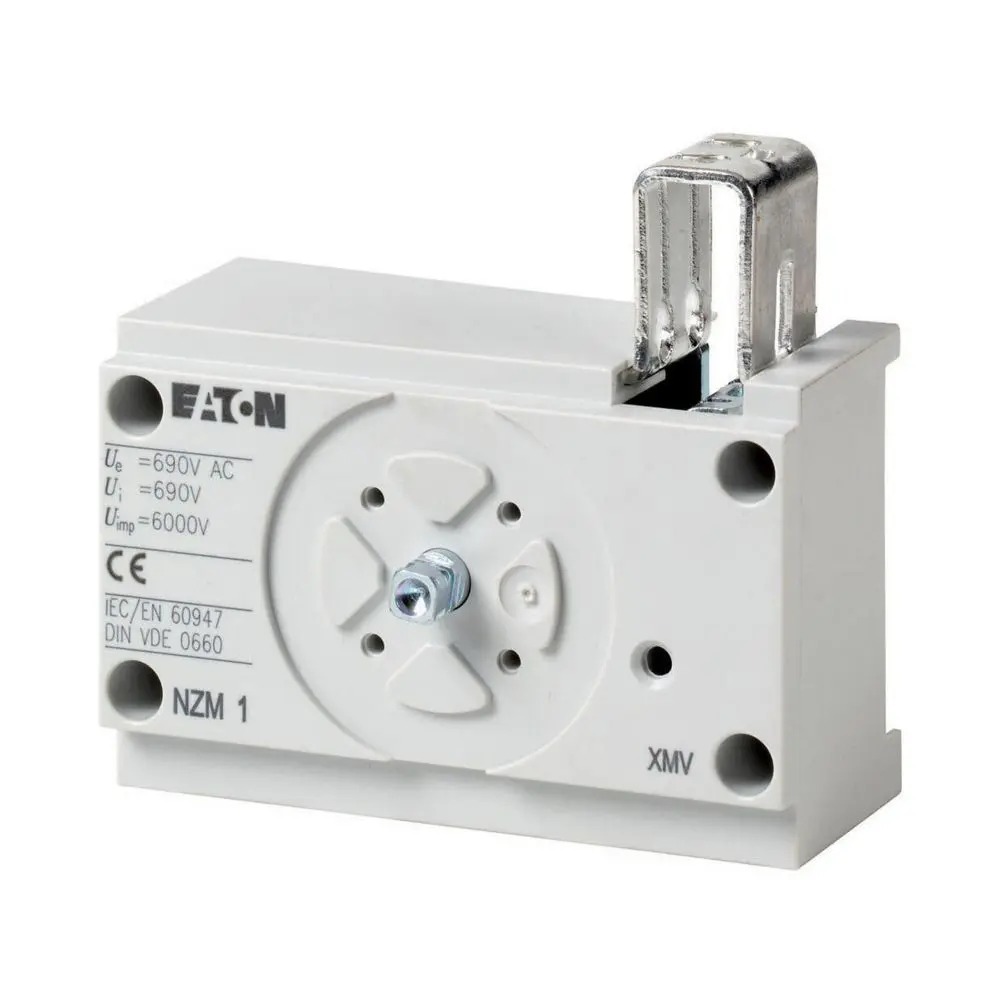

Interlock, mechanical, size 1
Eaton Moeller series NZM - Molded Case Circuit Breaker. Interlock, mechanical, size 1. Catalog Number: 281581, Model Code: NZM1-XMV, EAN: 4015082815813. Dimensions: 90 mm (L) x 50 mm (H) x 85 mm (W), Weight: 0.308 kg. Complies with UL/CSA, IEC, and RoHS standards.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller series NZM mounting accessory |
| Catalog Number | 281581 |
| Model Code | NZM1-XMV |
| EAN | 4015082815813 |
| Product Length/Depth | 90 mm |
| Product Height | 50 mm |
| Product Width | 85 mm |
| Product Weight | 0.308 kg |
| Compliances | UL/CSA, IEC, RoHS conform |
| Certifications | UL (Category Control Number DIHS), IEC60947, CE marking, CSA-C22.2 No. 5-09, CSA (Class No. 1437-01), UL489, UL listed, CSA certified, UL (File No. E140305), CSA (File No. 22086) |
| Global Catalog | 281581 |
| Specification | Value |
|---|---|
| Used With | NZM1, NZM1-NA, N(S)1(-4), NZM1-4, PN1-4, NS1, PN1, NZM1(-4), N1, N1-4, PN1(-4) |
| Temperature Rise | Panel builder's responsibility; Eaton provides heat dissipation data |
| Short-Circuit Rating | Panel builder's responsibility; specifications for switchgear must be observed |
| Electromagnetic Compatibility | Panel builder's responsibility; specifications for switchgear must be observed |
| Mechanical Function | Meets requirements if instruction leaflet is observed |
| Corrosion Resistance | Meets product standard's requirements |
| Thermal Stability of Enclosures | Meets product standard's requirements |
| Resistance of Insulating Materials to Normal Heat | Meets product standard's requirements |
| Resistance of Insulating Material to Abnormal Heat/Fire | Meets product standard's requirements |
| Resistance to Ultra-Violet (UV) Radiation | Meets product standard's requirements |
| Mechanical Impact | Does not apply; entire switchgear needs to be evaluated |
| Inscriptions | Meets product standard's requirements |
| Degree of Protection of Assemblies | Does not apply; entire switchgear needs to be evaluated |
| Clearances and Creepage Distances | Meets product standard's requirements |
| Protection Against Electric Shock | Does not apply; entire switchgear needs to be evaluated |
| Incorporation of Switching Devices and Components | Does not apply; entire switchgear needs to be evaluated |
| Internal Electrical Circuits and Connections | Panel builder's responsibility |
| Connections for External Conductors | Panel builder's responsibility |
| Power-Frequency Electric Strength | Panel builder's responsibility |
| Impulse Withstand Voltage | Panel builder's responsibility |
| Testing of Enclosures Made of Insulating Material | Panel builder's responsibility |
