Eaton / Moeller Series

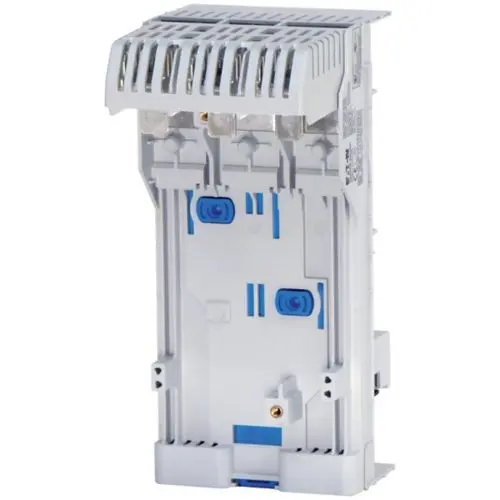

Busbar adapter for NZM 160A
Eaton xEffect SASY 60i MCCB adapter, Catalog Number 104554, Model Code NZM1-XAD160, EAN 4015081043729, Nominal Current 160 A, Three-pole, Voltage Rating Max. 600 V AC, Rated Operation Current 160 A, Temperature Resistance Up to 120 °C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton xEffect SASY 60i MCCB adapter |
| Catalog Number | 104554 |
| Model Code | NZM1-XAD160 |
| EAN | 4015081043729 |
| Nominal Current | 160 A |
| Number of Poles | Three-pole |
| Busbar Distance | 60 mm |
| Busbar Thickness - Min | 5 mm |
| Busbar Thickness - Max | 10 mm |
| Adapter Width | 92 mm |
| Specification | Value |
|---|---|
| Voltage Rating (UL CSA 13) | Max. 600 V AC |
| Voltage Rating at AC | 690 V AC |
| Rated Operation Current (IE) | 160 A |
| Creepage Resistance | CTI 200 |
| Equipment Heat Dissipation | 11.3 W |
| Temperature Resistance | Up to 120 °C |
