Eaton / Moeller Series

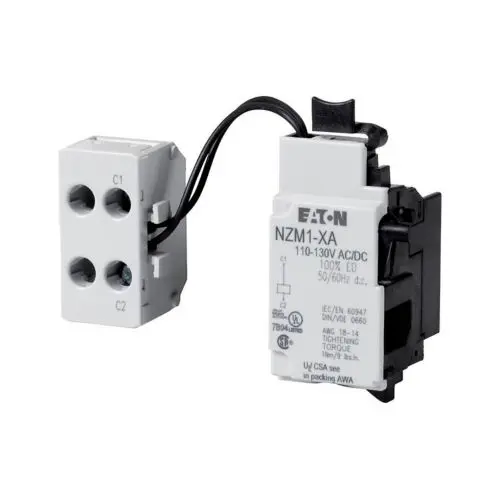

Shunt release, 110-130VAC/DC
Eaton Moeller series NZM Shunt release, 110-130VAC/DC, for NZM1, Catalog Number 259724, Model Code NZM1-XA110-130AC/DC, EAN 4015082597245. Used with NZM1(-4), N(S)1(-4). Type: Accessory, Shunt release. Connection Type: Screw connection. Terminal Capacity: 18 - 14 AWG (1x), 0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller series NZM Shunt release |
| Catalog Number | 259724 |
| Model Code | NZM1-XA110-130AC/DC |
| EAN | 4015082597245 |
| Used With | NZM1(-4), N(S)1(-4) |
| Type | Accessory, Shunt release |
| Connection Type | Screw connection |
| Terminal Capacity (Solid/Flexible Conductor) | 18 - 14 AWG (1x), 0.75 mm² - 2.5 mm² (1x) at shunt release with ferrule |
| Specification | Value |
|---|---|
| Voltage Rating | 0.7 - 1.1 x Us |
| Frequency Rating | 50 Hz / 60 Hz / 200 Hz / 400 Hz, DC (shunt release) |
| Minimum Command Time - Max | 15 ms |
| Minimum Command Time - Min | 10 ms |
| Reaction Time | 20 ms |
| Pick-Up Power Consumption (Shunt Release) | 2.5 VA/W |
| Rated Control Supply Voltage | 110 - 130 V AC/DC |
| Rated Control Supply Voltage (US) at AC, 50 Hz - Max | 130 V |
| Rated Control Supply Voltage (US) at AC, 50 Hz - Min | 110 V |
| Rated Control Supply Voltage (US) at DC - Max | 130 V |
| Rated Control Supply Voltage (US) at DC - Min | 110 V |
