Eaton / Moeller Series
Auxiliary contact, front mount, 1NO/1NC, screw terminals, IEC/UL/CSA/CE

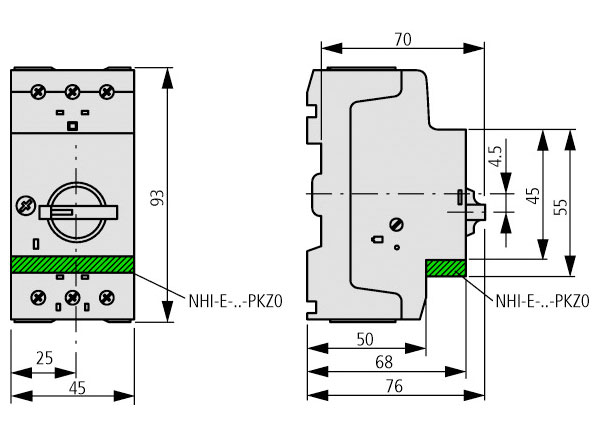

The Eaton/Moeller NHI-E-11-PKZ0 (new part number XTPAXFA11) is a standard front-mounted auxiliary contact designed for PKZM01, PKZM0, PKZM4, PKZM0-T, PKM0, and PKE motor-protective circuit breakers. It provides 1 normally open (NO) and 1 normally closed (NC) contact with screw terminal connections. This auxiliary can be mounted on top of motor-protective circuit breakers from serial number 01 or higher without changing the breaker’s overall width (45 mm for PKZM0/PKZM01 and 55 mm for PKZM4). It is rated up to 440 V AC / 250 V DC, with an operational current of 1 A (AC-15, 240 V). Certified to UL 508, CSA C22.2, and IEC 60947-4-1 standards, the NHI-E-11-PKZ0 provides compact and reliable auxiliary signaling in motor protection systems.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton / Moeller |
|---|---|
| Model | NHI-E-11-PKZ0 |
| Eaton Part Number | XTPAXFA11 |
| Series | PKZ0 Accessories |
| Product Type | Front Mounted Auxiliary Contact |
| Contacts | 1 NO, 1 NC |
| Connection Technique | Screw terminals |
| Mounting | Front mounting (top of breaker) |
| Compatible With | PKZM01, PKZM0, PKZM4, PKZM0-T, PKM0, PKE |
| Rated Operational Voltage (Ue) | 440 V AC / 250 V DC |
|---|---|
| Impulse Withstand Voltage (Uimp) | 4 kV |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current AC-15 | 1 A (240 V) |
| Rated Operational Current DC-13 | 2 A (24 V DC) |
| Lifespan (Mechanical) | >100,000 operations |
| Lifespan (Electrical) | >100,000 operations |
| Short-Circuit Protection | 10 A gG/gL fuse |
| Terminal Capacity | 0.75 – 2.5 mm² (with ferrule), 18–16 AWG |
| Approvals | UL 508, CSA-C22.2 No.14, IEC 60947-4-1, CE marking |
| UL File Number | E36332 |
| CSA File Number | 165628 |
