Eaton / Moeller Series

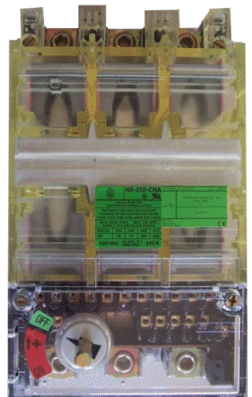

Klockner Moeller N9-250-CNA is a 3-pole molded case disconnect switch rated for manual motor control. Designed without overload or short-circuit trip functions, it serves as a non-automatic motor disconnect. It features a 3-position mechanism (OFF, tripped, ON) and can be equipped with accessories like shunt and undervoltage trip coils. Rated for up to 75 HP at 230V and 150 HP at 460V. UL recognized (UL 508) and CSA certified (C22.2 No. 14).
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Model | N9-250-CNA |
|---|---|
| Type | Manual Motor Disconnect Switch |
| Poles | 3 |
| Trip Function | None (Manual Only) |
| Switching Positions | OFF, Tripped, ON |
| HP Rating @ 230V | 75 HP |
| HP Rating @ 460V | 150 HP |
| Voltage Trip Options | Shunt Trip, Undervoltage Trip |
| Certifications | UL 508, CSA C22.2 No. 14 |
