Eaton / Moeller Series

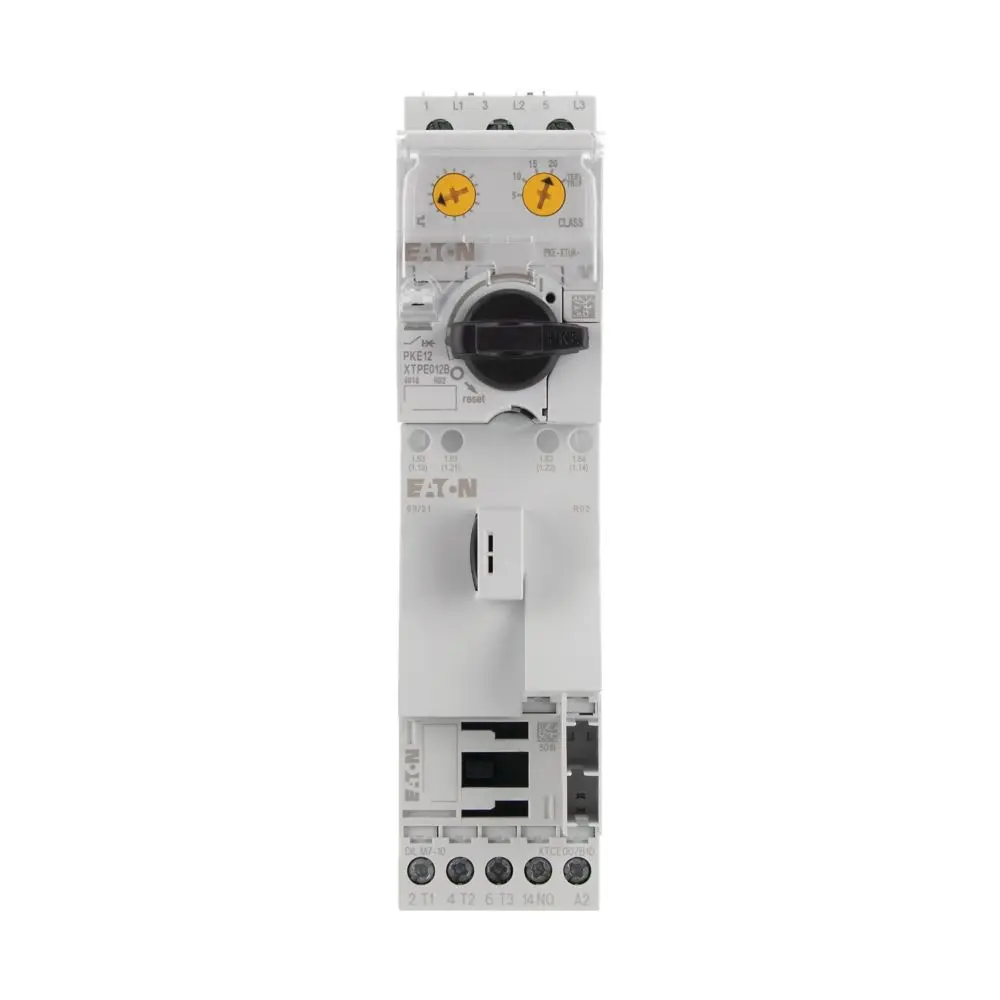

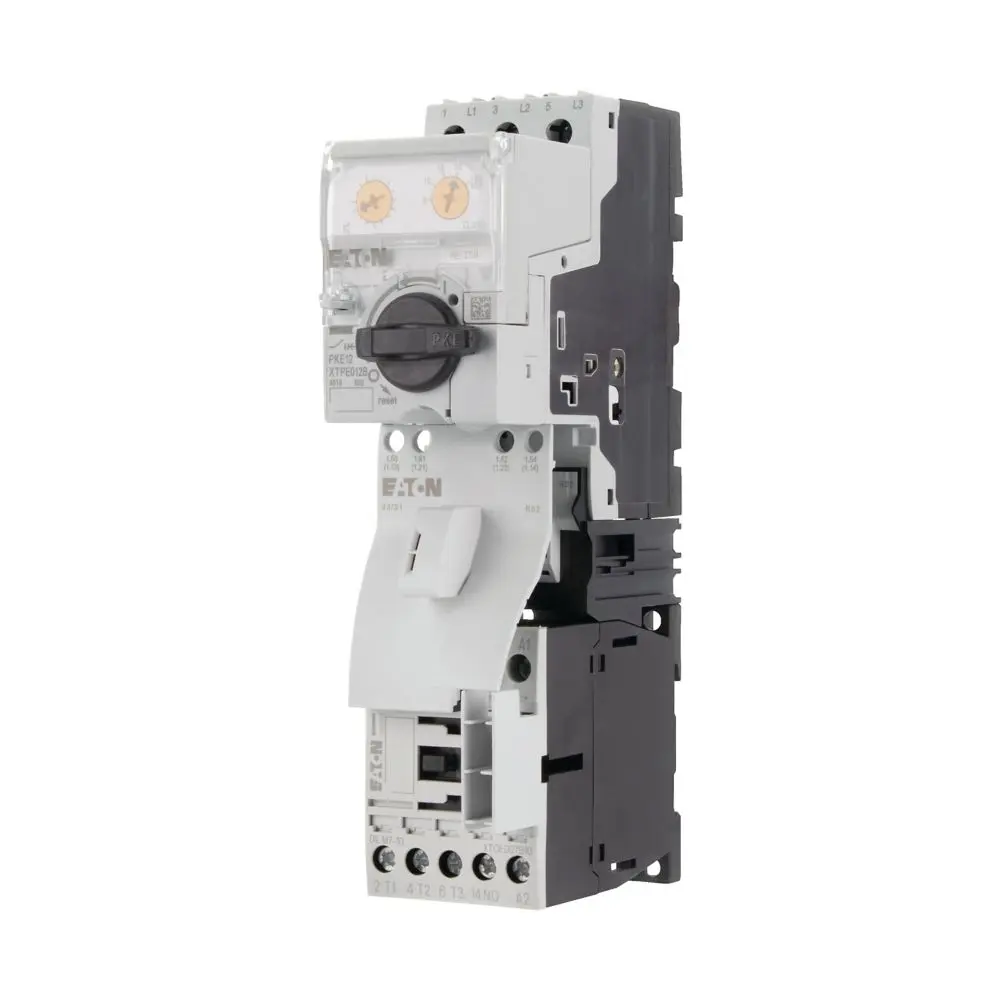

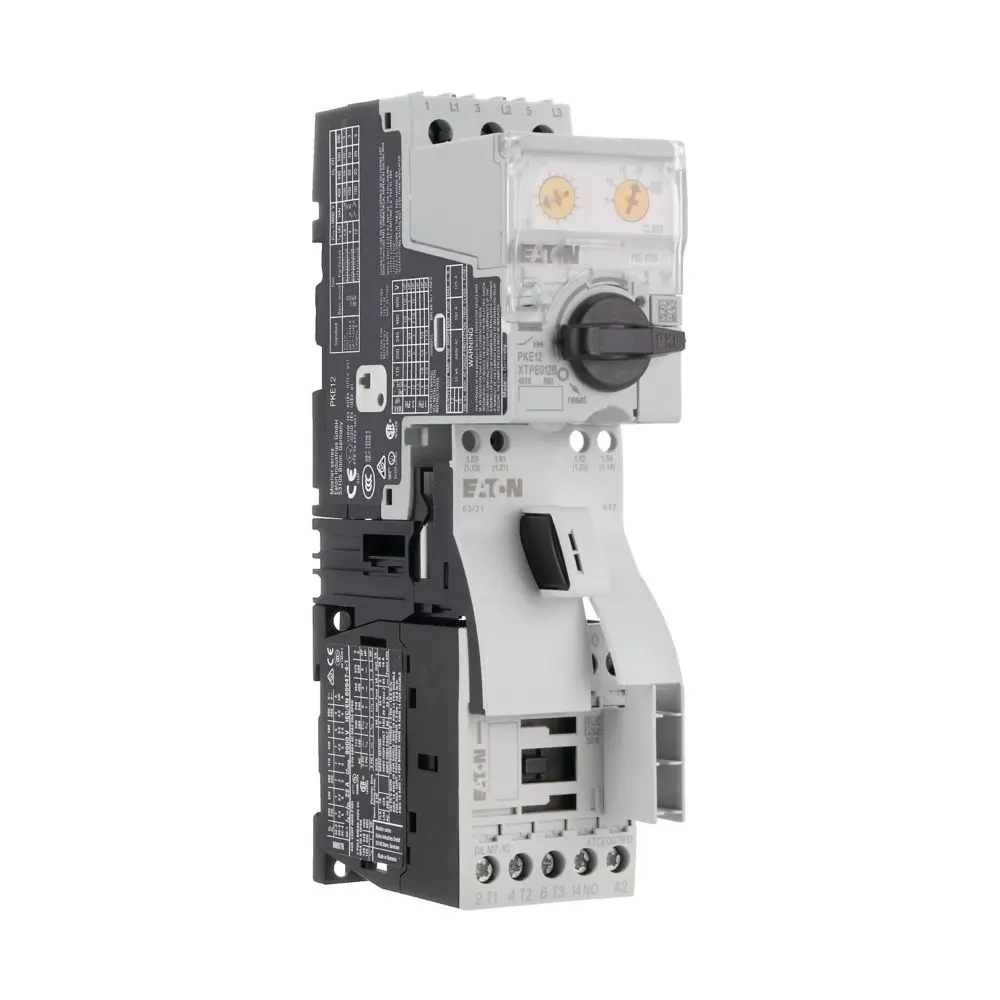

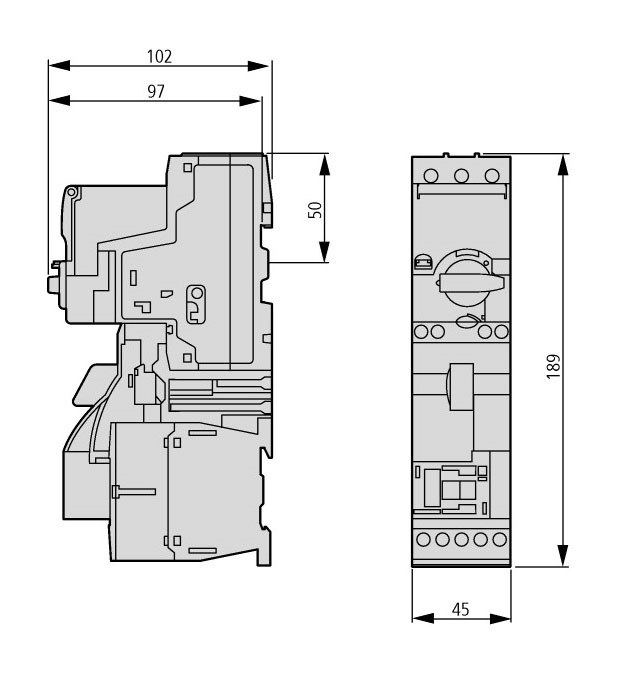

4 kW, DOL motor starter, electronic trip unit, overload protection 3–12 A, 230 V coil, IEC
The Eaton/Moeller MSC-DE-12-M9(230V50HZ) is a direct-on-line (DOL) motor starter designed for motors up to 4 kW at 400/415 V AC (AC-3). It combines a PKE motor-protective circuit breaker and a DILM9 contactor in a compact, factory-assembled starter. The overload release is adjustable from 3–12 A, with a built-in short-circuit release at 168 A. Rated short-circuit capacity is 100 kA (fuse-protected). The unit operates on 230 V 50 Hz coil voltage and features screw-type terminals for secure connections. With IE3 motor compatibility, IP20 protection, and coordination type “1” and “2” compliance, the MSC-DE-12-M9 provides reliable motor starting and protection for industrial applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Product Name | MSC-DE DOL Motor Starter |
| Catalog Number | XTSE012B009BFNL |
| Model Code | MSC-DE-12-M9 (230 V 50 Hz) |
| Type | Direct-On-Line (DOL) Starter |
| Rated Motor Power | 4 kW at 400/415 V AC (AC-3) |
| Rated Operational Current | 8.5 A at 400/415 V |
| Overload Release Setting Range | 3 – 12 A |
| Short-Circuit Release | 168 A, non-delayed |
| Rated Short-Circuit Capacity | 100 kA at 380–400 V |
| Motor-Protective Circuit Breaker | PKE12/XTU-12 |
| Contactor | DILM9-10 |
| Mounting | DIN rail (adapter-less up to 15 A) or adapter plate (≥16 A) |
| Included | 1 × MSC-DE-12-M9 DOL Motor Starter |
| Rated Operational Voltage | 230 – 415 V AC |
|---|---|
| Rated Control Supply Voltage | 230 V 50 Hz AC |
| Motor Ratings | 0.75 kW (220–230 V, 3.2 A) 1.1 kW (230 V, 4.6 A) 1.5 kW (230 V, 6.3 A / 400 V, 3.6 A) 2.2 kW (230 V, 8.7 A / 400 V, 5 A) 3 kW (400/415 V, 6.6 A) 4 kW (400/415 V, 8.5 A) |
| Auxiliary Contacts | 1 NO, expandable with DILA-XHIT… auxiliary modules |
| Impulse Withstand Voltage | 6 kV |
| Degree of Protection | IP20 |
| Pollution Degree | 3 |
| Operating Temperature | -25 °C to +55 °C |
| Connections | Screw connection |
| Compliance | IEC/EN 60947-4-1, VDE 0660, IE3 motor ready |
| Special Notes | Control wire guide supports 6 × 2.5 mm Ø or 4 × 3.5 mm Ø conductors Suitable for SmartWire-DT expansion with PKE-SWD-32 module Not compatible with NHI-E…PKZ0-C accessories |
