Eaton / Moeller Series

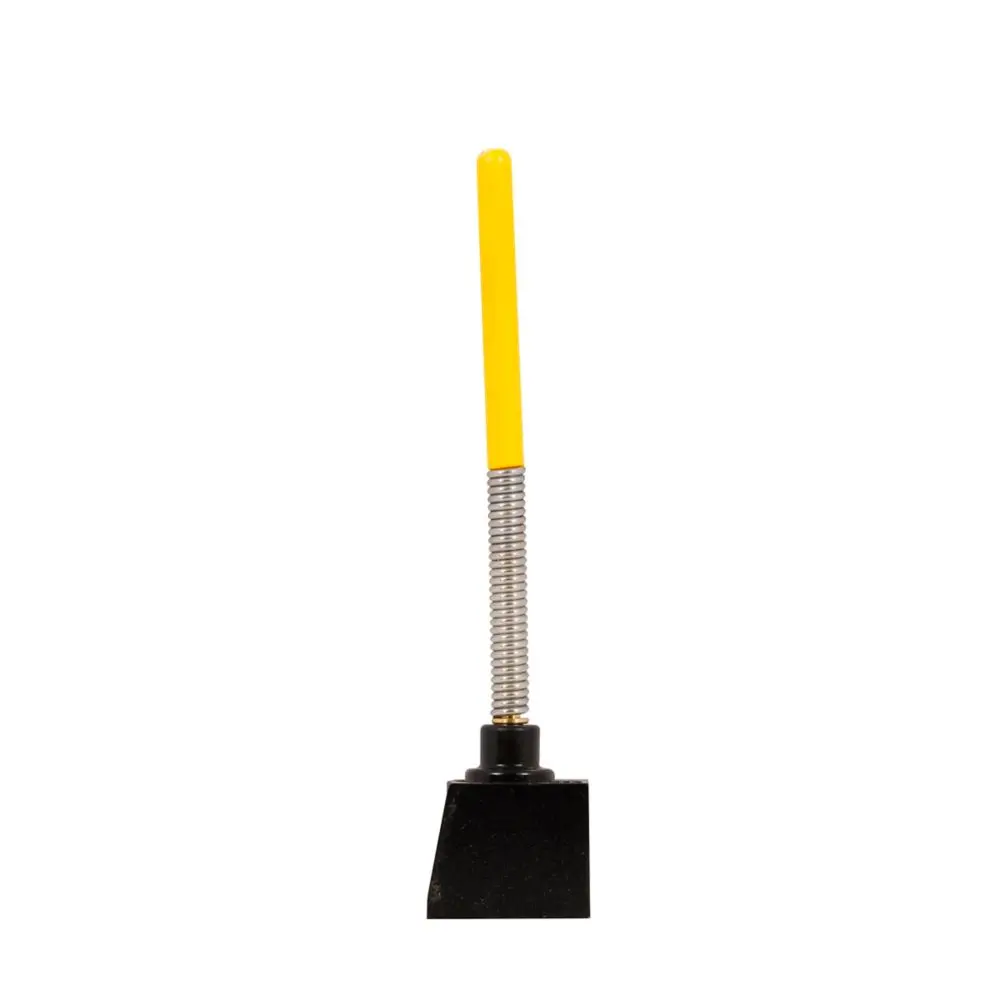

spring-rod actuator (metal), rotatable 90°, –25 °C to +70 °C, UL/CSA/CE
Eaton Moeller® series LS LSM-XS is a metal spring-rod actuator designed for LS(M)-series basic devices. It can be rotated 90° to adapt to different approach directions and is only permissible for use with snap-action contacts. This actuator is not intended for safety position switch applications. It is a non-electrical mechanical component with zero heat dissipation and meets IEC/EN 61439 requirements for corrosion resistance, thermal stability, and material performance. Operating temperature ranges from –25 °C to +70 °C, and it complies with IEC/EN 60947-5, UL 508, CSA C22.2 No. 14, and CE marking standards.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LSM-XS |
| Catalog Number | 266163 |
| Product Type | Spring-rod actuator (metal) |
| Description | Not to be used as a safety position switch |
| Contact Type | Only permissible with snap-action contact |
| For Use With | Basic devices LS(M)-series |
| Part Group Reference | LS(M)-… |
| Mounting | Operating head rotatable 90° |
| Type of Control Element | Spring-rod |
| EL Number (Norway) | 4356164 |
| Product Category | Drive head for position switches |
| Operating Temperature Range | –25 °C to +70 °C |
|---|---|
| Rated Operational Current (In) | 0 A (non-electrical component) |
| Heat Dissipation (Static/Current-dependent) | 0 W |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability of Enclosure | Meets product standard requirements |
| Resistance to Heat/Fire | Meets product standard requirements |
| UV Resistance | On request |
| Mechanical Function Verification | Meets requirements when installed per instruction leaflet (IL) |
| Compliance Standards | IEC/EN 61439; IEC/EN 60947-5 |
| Approvals | UL File E29184 (NKCR); CSA File 12528 (Class 3211-03) |
| Certifications | UL, CSA, CE |
