Eaton / Moeller Series
Adjustable roller lever, Ø18 mm, rotatable 90°, corrosion-resistant, −25 °C to +70 °C, CE/UL/CSA/IEC

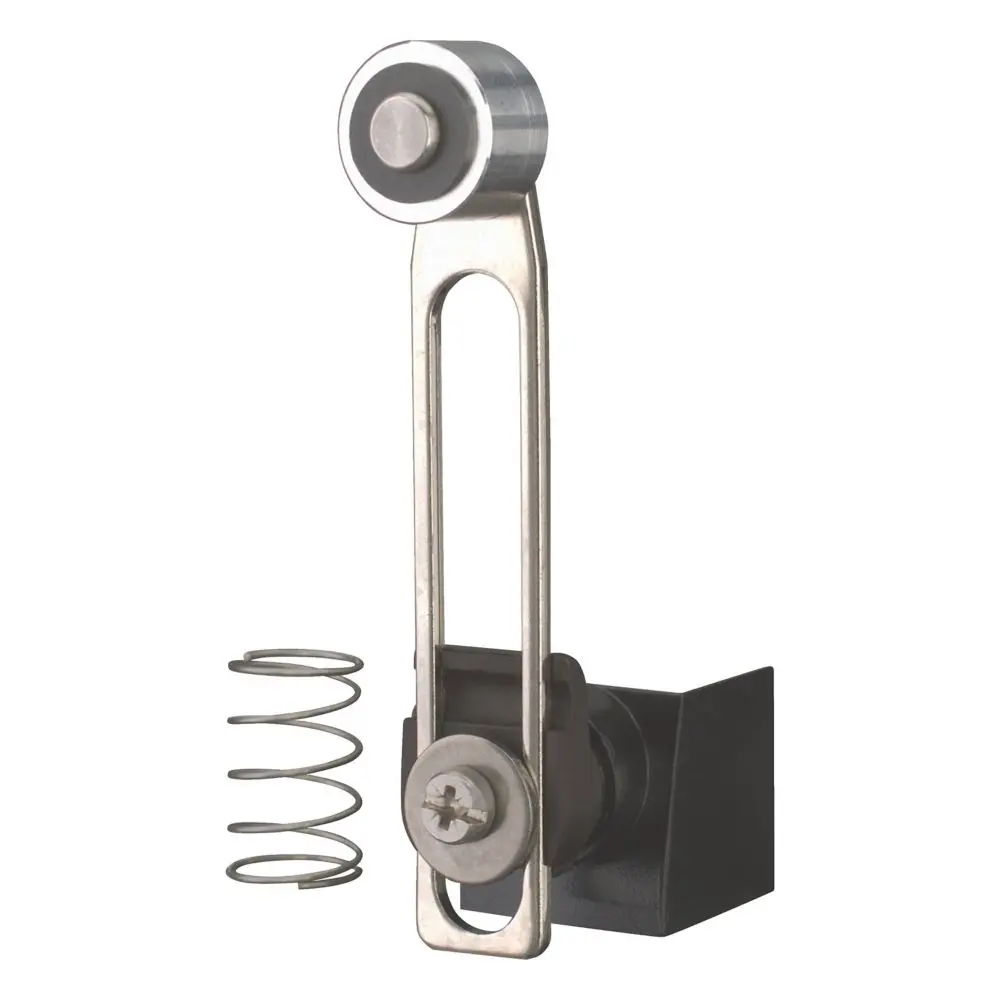

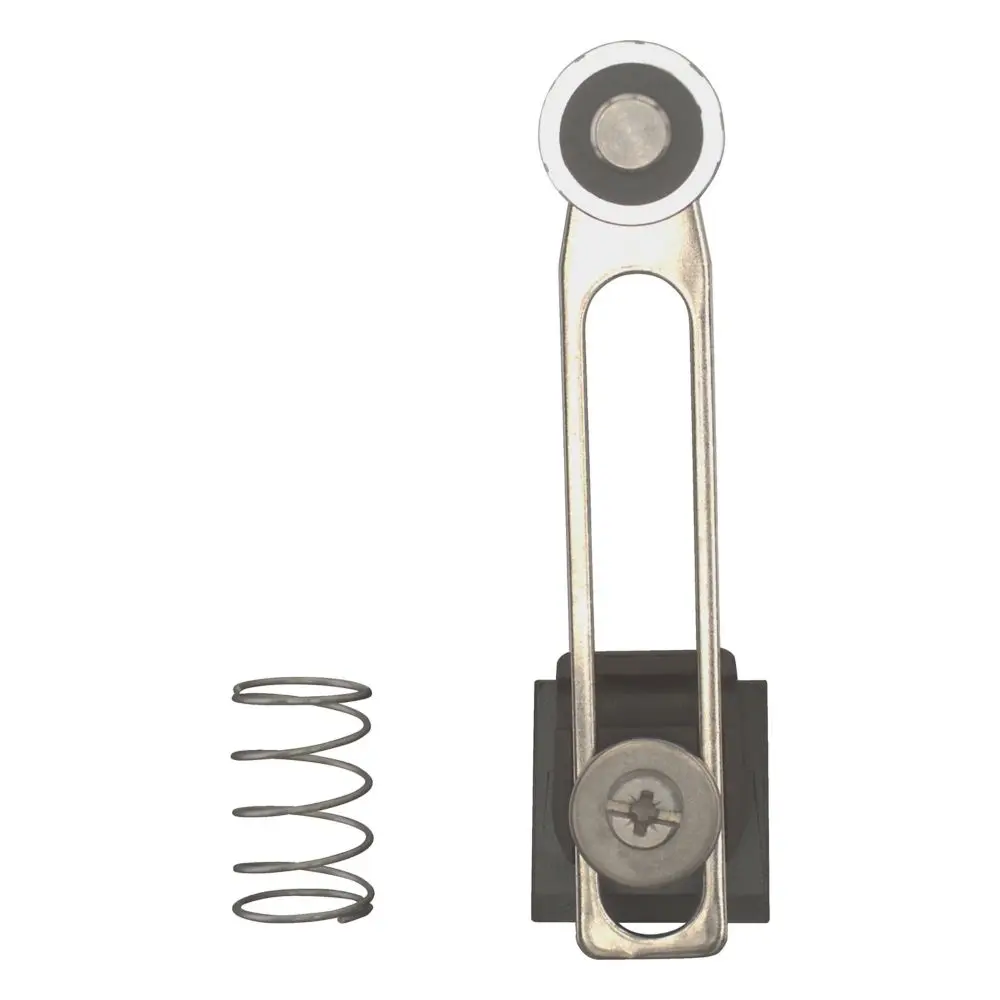

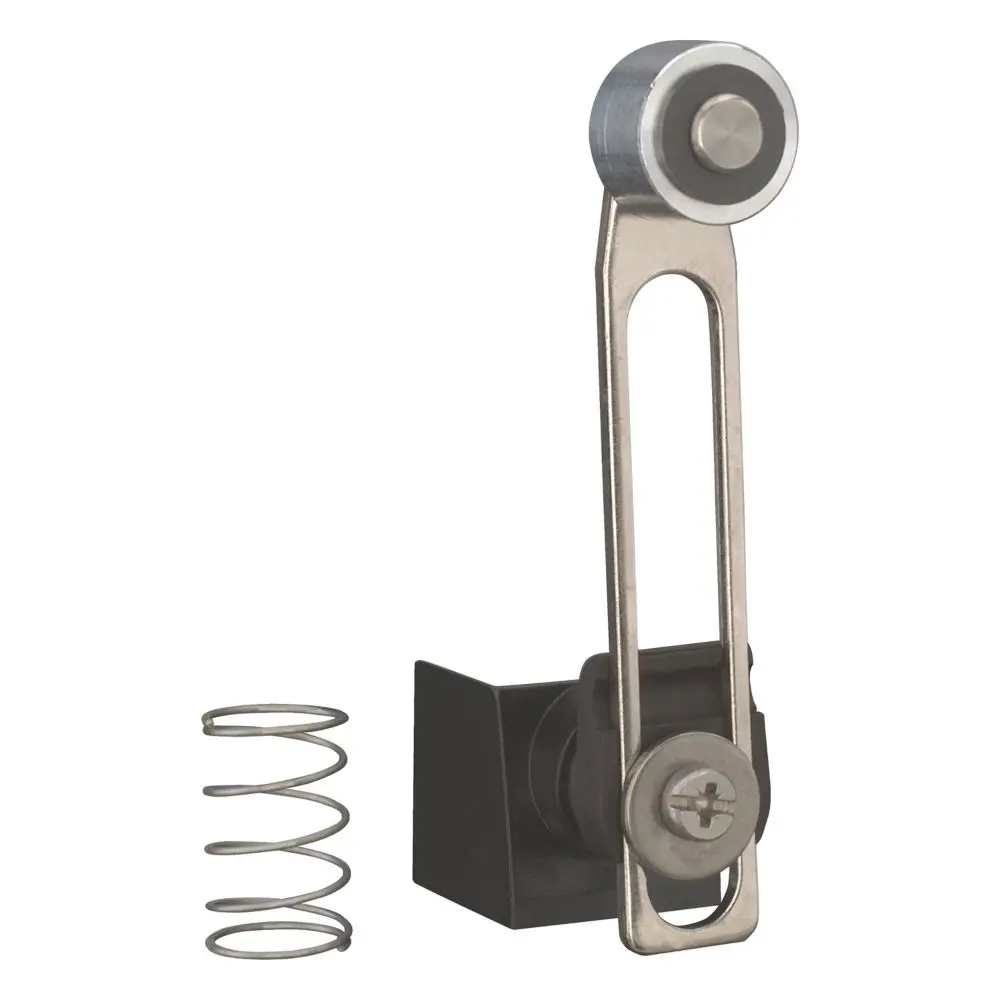

The Eaton Moeller® series LSM Adjustable Roller Lever LSM-XRLA is a compact and durable actuator head designed for LSM series safety position switches. Featuring an 18 mm diameter adjustable roller, this lever head can be rotated 90° for flexible installation and directional adaptability. It provides smooth mechanical actuation, excellent corrosion resistance, and long service life in industrial environments. The operating head is designed to meet mechanical and thermal stability requirements according to IEC/EN 60947-5 and complies with international certification standards including CE, UL, and CSA. Suitable for temperatures from −25 °C to +70 °C, it is ideal for precision position detection and machine safety applications.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Catalog Number | 266160 |
| Model Code | LSM-XRLA |
| EAN | 4015082661601 |
| Product Type | Adjustable Roller Lever |
| Actuator Type | Adjustable roller lever |
| Roller Diameter | 18 mm |
| Mounting Compatibility | For Eaton Moeller® series LSM safety switch bodies |
| Features | Rotatable 90°; corrosion-resistant; adjustable lever position |
| Length / Depth | 25 mm |
| Height | 93 mm |
| Width | 55 mm |
| Weight | 0.065 kg |
| Product Category | Operating Head |
| Global Catalog Reference | 266160 |
| Ambient Operating Temperature (min) | −25 °C |
|---|---|
| Ambient Operating Temperature (max) | +70 °C |
| Rated Operational Current (In) | 0 A (applicable to actuator head only) |
| Heat Dissipation (Static) | 0 W |
| Heat Dissipation (Dynamic) | 0 W |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability / Enclosure Test | Complies with IEC/EN 60947-5 |
| Resistance to Heat and Fire | Meets product standard requirements |
| UV Resistance | Available upon request |
| Degree of Protection (IP) | Determined by the installed LSM switch (typically IP66/IP67) |
| Mechanical Function | Meets standard requirements when installed per IL053001ZU |
| Mechanical Impact Resistance | Not applicable (switchgear-level test) |
| Markings and Inscriptions | Meets standard product marking requirements |
| Compliance / Certifications | CE; UL 508 (File E29184); CSA C22.2 No. 14 (File 012528); IEC/EN 60947-5; UL Category NKCR; CSA Class 3211-03 |
