Eaton / Moeller Series
6 A, 1 N/O + 1 N/C, Safety position switch, snap-action contacts with Cage Clamp terminals, IEC/EN

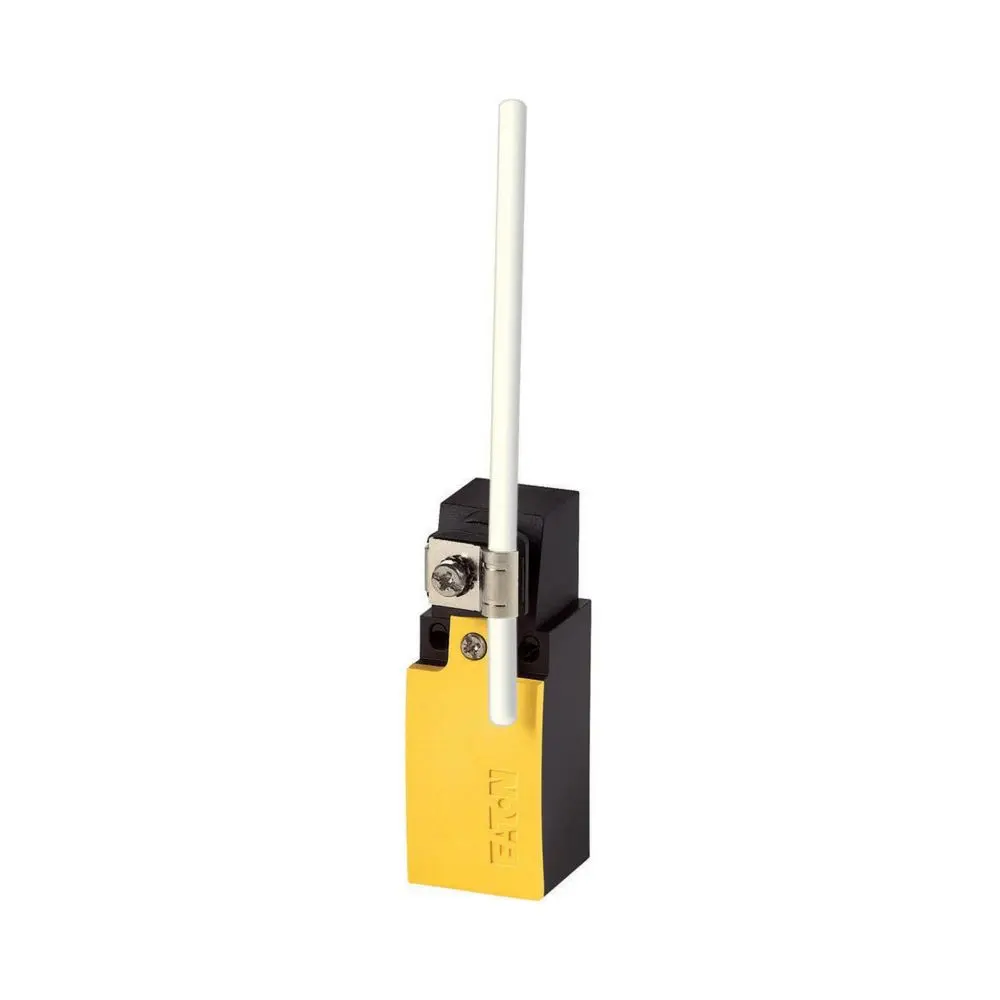

The Eaton Moeller® LS-Titan LSM-11S/RR is a complete safety position switch equipped with a rotatable actuating rod for flexible and precise mechanical actuation. It features snap-action contacts with 1 normally open (1 N/O) and 1 normally closed (1 N/C) configuration, ensuring reliable switching performance with positive opening operation for safety-critical applications. The Cage Clamp terminal connection allows quick, secure, and vibration-resistant wiring without the need for ferrules. Designed for harsh industrial environments, the LSM-11S/RR includes a yellow insulated plastic enclosure, operates over a –25 °C to +70 °C range, and provides IP66/IP67 protection. This switch complies with IEC/EN 60947 standards and delivers long mechanical life—up to 8 million operations.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Series | LS-Titan |
| Model | LSM-11S/RR |
| Product Type | Safety Position Switch |

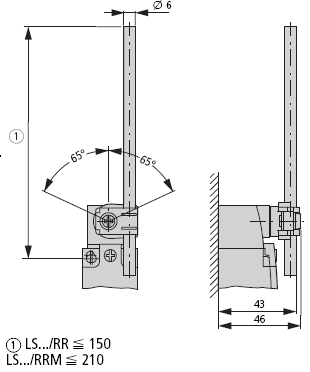

| Actuator Type | Rotatable Actuating Rod Head |
| Contact Configuration | 1 N/O + 1 N/C |
| Contact Operation | Snap Action, Positive Opening |
| Terminal Connection | Cage Clamp |
| Mounting Position | As Required |
| Mechanical Durability | Up to 8 Million Operations |
| Operating Frequency | 6000 Operations per Hour (max.) |
| Enclosure Material | Insulated Plastic |
| Enclosure Color | Yellow Cover |
| Rated Insulation Voltage (UI) | 250 V |
|---|---|
| Rated Operational Current (AC-15) | 6 A @ 24 V / 1 A @ 230 V / 4 A @ 400 V |
| Rated Operational Current (DC-13) | 3 A @ 24 V / 0.3 A @ 220 V |
| Rated Impulse Withstand Voltage (Uimp) | 2500 V AC |
| Rated Conditional Short-Circuit Current (Iq) | 1 kA (Max 4 A gG/gL Fuse) |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Protection Rating | IP66 / IP67 |
| Ambient Temperature Range | –25 °C to +70 °C |
| Control Circuit Reliability | 1 failure per 10 million switching operations (@ 24 V DC / 5 mA) |
| Actuating Torque of Rotary Drives | 0.2 Nm |
| Repetition Accuracy | 0.15 mm |
| Shock Resistance | 25 g (20 ms Half-Sinusoidal) |
| Applicable Standards / Certifications | IEC/EN 60947, CE |
