Eaton / Moeller Series

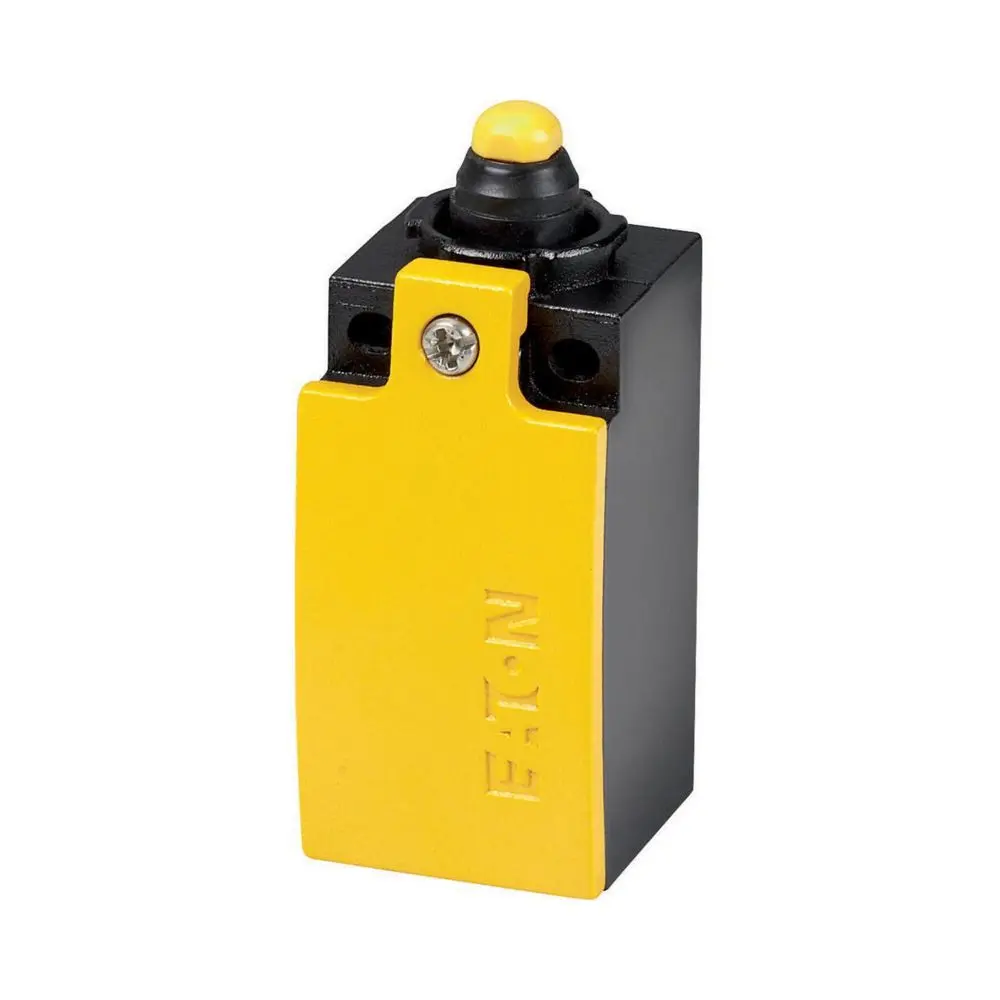

Safety position switch, expandable, IP66/IP67, 0.147 kg, -25 to +70 °C
Eaton Moeller® series LSM Safety position switch, Catalog Number 292363, Model Code LSM-11DA, EAN 4015082923631, features include expandable, forced opening, and positive opening. Rated operational current at various voltages and conditions specified.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series LSM Safety position switch |
| Catalog Number | 292363 |
| Model Code | LSM-11DA |
| EAN | 4015082923631 |
| Product Length/Depth | 33.5 mm |
| Product Height | 76.5 mm |
| Product Width | 31 mm |
| Product Weight | 0.147 kg |
| Ambient Operating Temperature | -25 °C to +70 °C |
| Actuator Type | Plunger |
| Enclosure Material | Metal |
| Enclosure Type | Cuboid |
| Operating Frequency | 6000 Operations/h |
| Pollution Degree | 3 |
| Shock Resistance | 25 g, Standard-action contact |
| Specification | Value |
|---|---|
| Type | Safety position switch |
| Features | Expandable, Forced opening, Positive opening |
| Temperature Rise | Panel builder's responsibility |
| Short-Circuit Rating | Panel builder's responsibility |
| Electromagnetic Compatibility | Panel builder's responsibility |
| Mechanical Function | Meets requirements if IL is observed |
| Corrosion Resistance | Meets product standard's requirements |
| Degree of Protection | IP66/IP67 |
| Rated Operational Current (DC-13, 110 V) | 0.6 A |
| Rated Operational Current (DC-13, 125 V) | 0.8 A |
| Rated Operational Current (DC-13, 220 V, 230 V) | 0.3 A |
| Rated Operational Current (AC-15, 125 V) | 6 A |
| Rated Insulation Voltage (UI) | 400 V |
| Control Circuit Reliability | 1 failure per 10,000,000 switching operations |
| Lifespan | 8,000,000 mechanical Operations |
