Eaton / Moeller Series
6A, 1NO+1NC, safety position switch, roller plunger, metal housing, IP66/IP67, CE/UL/CSA/IEC

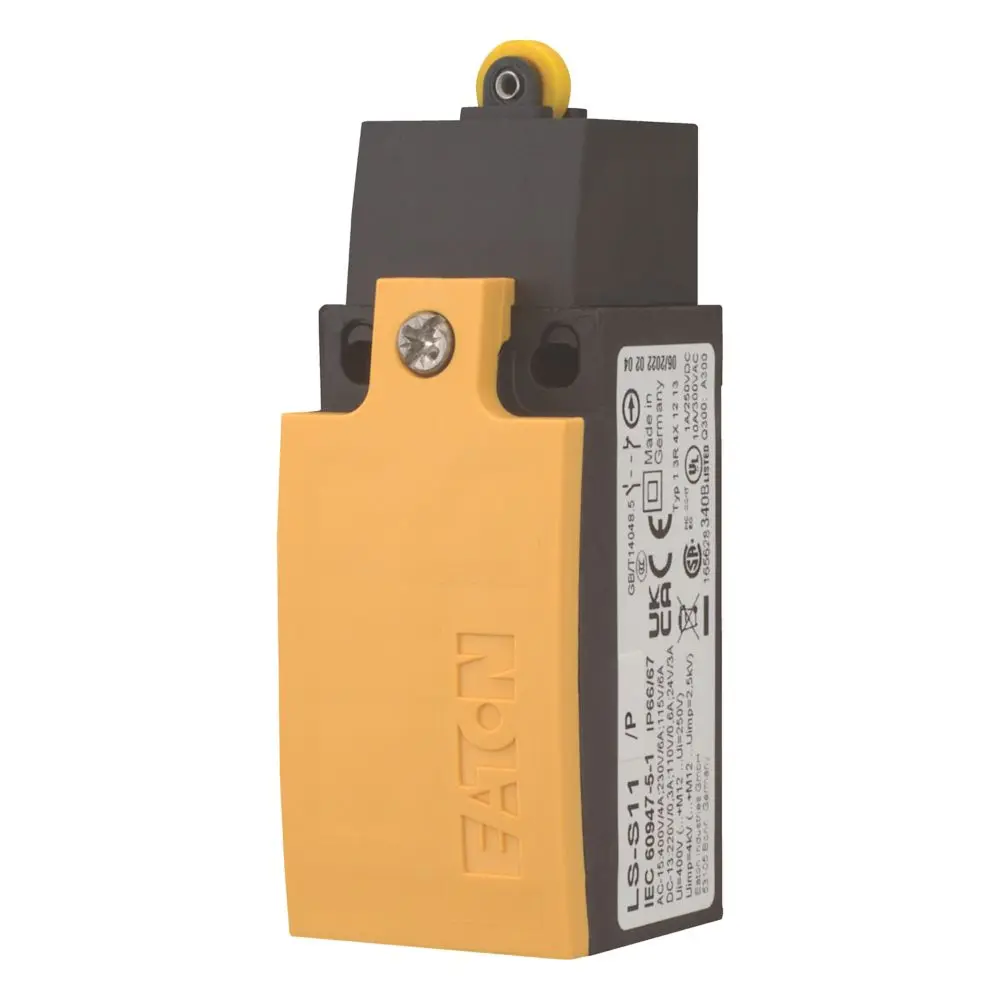

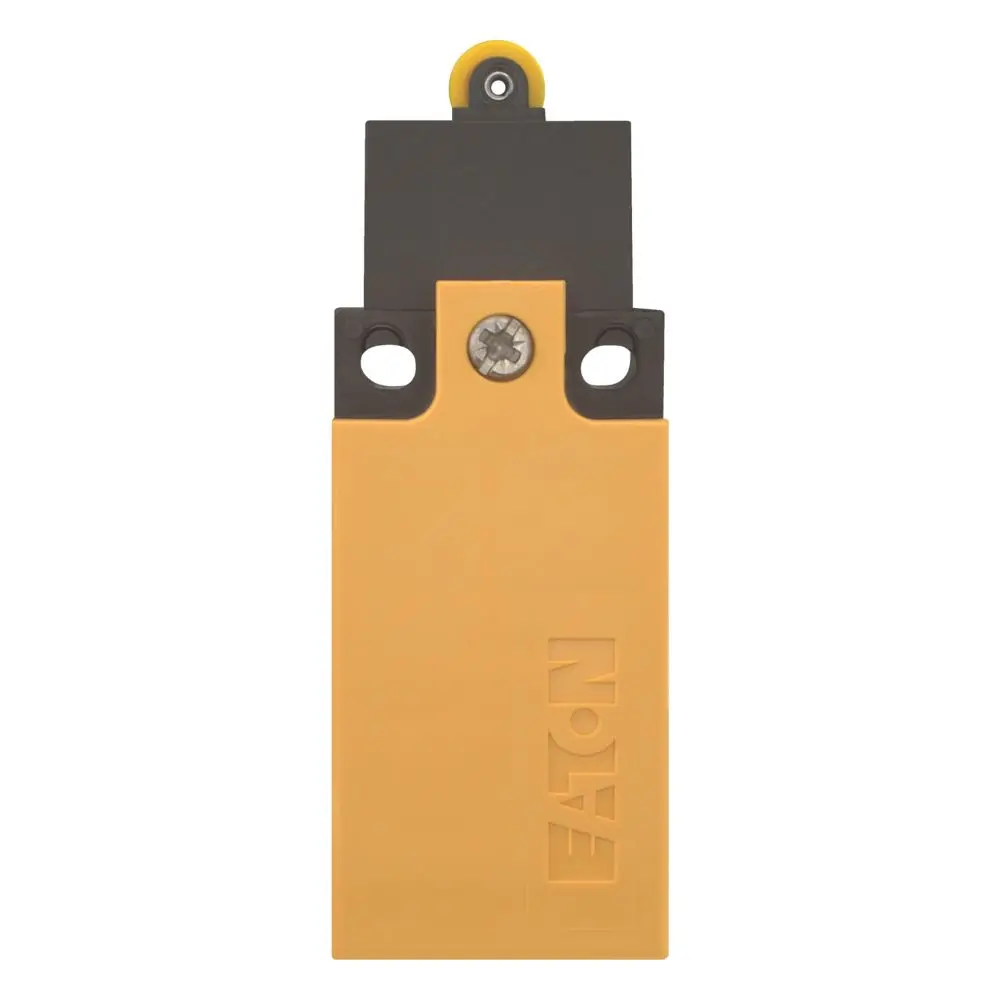

The Eaton Moeller® series LSM Safety Position Switch LSM-11/P is a durable safety switch designed for precise position detection in industrial control applications. It features a roller plunger actuator with slow-action contacts (1 N/O + 1 N/C) and positive/forced opening functionality for safety-critical systems. The switch includes a robust yellow metal housing with Cage Clamp connections and offers 8 million mechanical operations at up to 6,000 cycles per hour. Rated for 6 A at 230 V AC and 3 A at 24 V DC, it operates reliably between −25 °C and +70 °C and is protected to IP66/IP67. Certified to CE, UL 508, CSA (CSA File 012528, CSA-C22.2 No. 14), and IEC/EN 60947-5 standards (EN 50047 Form C design). The head can be rotated 90° for flexible mounting orientation.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Catalog Number | 266147 |
| Model Code | LSM-11/P |
| EAN | 4015082661472 |
| Product Type | Safety Position Switch (Complete Unit) |
| Actuator Type | Roller plunger (Roller cam straight) |
| Contacts | 1 N/O + 1 N/C (Form C) |
| Switch Function | Slow-action switch |
| Features | Positive opening; Forced opening; Rotatable head (90°) |
| Connection Type | Cage Clamp terminals |
| Mounting Position | As required |
| Housing Material | Metal (yellow finish) |
| Operating Frequency | 6,000 operations/hour |
| Mechanical Lifespan | 8 million operations |
| Dimensions (H × W × D) | 86 mm × 31 mm × 33.5 mm |
| Weight | 0.146 kg |
| Rated Insulation Voltage (UI) | 400 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 4 kV AC |
| AC-15 (24 V) | 6 A |
| AC-15 (125 V) | 6 A |
| AC-15 (230–240 V) | 6 A |
| AC-15 (380–415 V) | 4 A |
| DC-13 (24 V) | 3 A |
| DC-13 (110 V) | 0.6 A |
| DC-13 (125 V) | 0.8 A |
| Rated Conditional Short-Circuit Current (Iq) | 1 kA |
| Short-Circuit Protection | Max 6 A gG/gL fuse (contacts) |
| Degree of Protection | IP66/IP67 (NEMA Other) |
| Ambient Temperature Range | −25 °C to +70 °C |
| Operating Speed | Max 1 m/s (mechanical actuation, α = 0°/30°) |
| Shock Resistance | 25 g (20 ms half-sinusoidal) |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Repetition Accuracy | 0.15 mm |
| Terminal Capacity (Solid) | 1 × 0.5 – 2.5 mm² |
| Terminal Capacity (Flexible with Ferrule) | 1 × 0.5 – 1.5 mm² |
| Climatic Proofing | IEC 60068-2-30/-78 (damp heat, cyclic and constant) |
| Suitability | Safety functions |
| Design Standard | EN 50047 Form C; IEC/EN 60947-5 |
| Certifications | CE; UL 508 (File E29184); CSA (File 012528; CSA-C22.2 No. 14); IEC/EN 60947-5; UL NKCR; CSA 3211-03 |
