Eaton / Moeller Series
6A AC-15, 1NO+2NC, safety position switch, screw terminal, positive opening contacts, IEC/EN/UL/CSA/CE

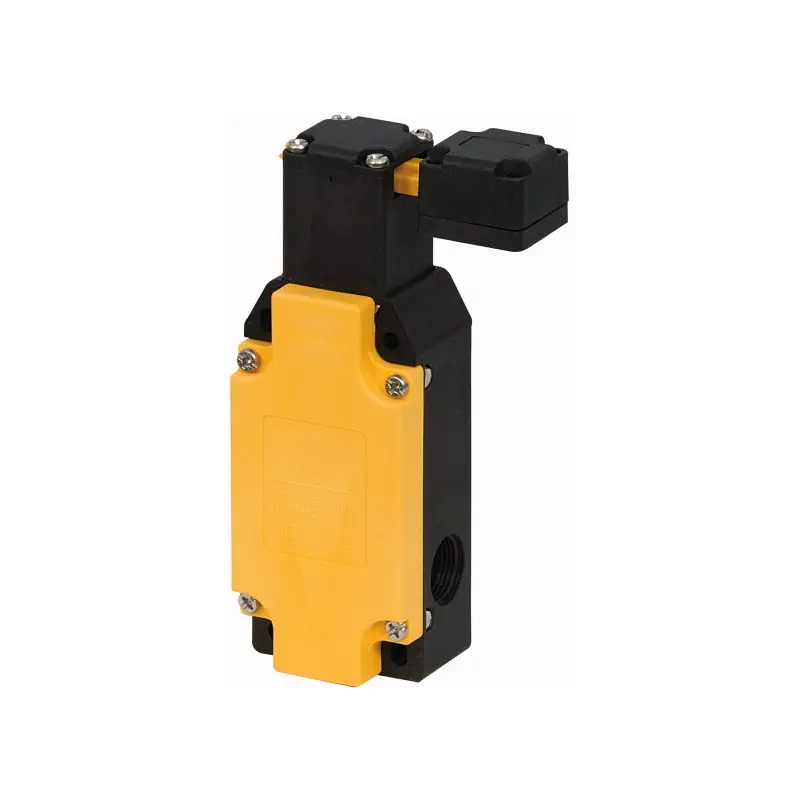

The Eaton LS4/S12-7/IB/ZB is a complete safety position switch designed for reliable safety interlocking applications. It features one normally open (1 N/O) and two normally closed (2 N/C) slow-action contacts with positive opening operation per IEC/EN 60947-5-1. Built with a durable insulated plastic housing and screw terminals, it offers IP65 protection and operates from −25 °C to +70 °C. The switch’s operating head can be rotated 90° for flexible mounting, but it must not be used as a mechanical stop. Rated at 6 A (AC-15) and 3 A (DC-13), the device complies with IEC/EN 60947-5, UL 508, CSA-C22.2 No. 14, and CE standards.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Part No. | LS4/S12-7/IB/ZB |
| Catalog No. | 106859 |
| Product Type | Safety position switch (complete unit) |
| Actuator | ZB (rotatable head 90°) |
| Contacts | 1 N/O + 2 N/C (slow-action, positive opening) |
| Housing | Insulated plastic material |
| Connection Type | Screw terminal (PH1) |
| Degree of Protection | IP65 |
| Ambient Temperature | −25 °C … +70 °C |
| Mounting Position | As required |
| Features | Positive-opening contacts, safety-rated, complete device |
| Notes | Do not use as a mechanical stop; actuator can be rotated |
| Rated Insulation Voltage (Ui) | 500 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 6 kV (AC 6000 V) |
| Overvoltage Category / Pollution Degree | III / 3 |
| Operational Current (AC-15) | 6 A at 24 V / 230 V; 4 A at 380–415 V |
| Operational Current (DC-13) | 3 A at 24 V; 0.8 A at 110 V; 0.3 A at 220 V |
| Supply Frequency | ≤ 400 Hz |
| Short-Circuit Protection | Max 10 A gG/gL fuse; Icc 1 kA (conditional) |
| Repetition Accuracy | 0.02 mm |
| Mechanical Life | 1.5 × 10⁶ operations (≤ 1800 ops/h) |
| Actuating Force (begin / end of stroke) | 15 N / 20 N (plug-in/pull-out) |
| Shock Resistance | 5 g (half-sine, 20 ms) |
| Terminal Capacity (solid) | 1×(0.75–2.5 mm²) or 2×(0.75–1.5 mm²) |
| Terminal Capacity (flex w/ ferrule) | 1×(0.5–1.5 mm²) or 2×(0.5–1.5 mm²) |
| Terminal Torque | 0.9 Nm |
| Dimensions (W × H × L) | 40 mm × 125 mm × 40 mm |
| Protection Ratings (detail) | IEC: IP65; UL/CSA Types 3R, 4X (indoor only), 12, 13 |
| Approvals / Certifications | IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE; UL listed / CSA certified |
