Eaton / Moeller Series
Safety position switch, 1 N/O, 1 NC, IP65, -25 to 70 °C, 0.227 kg

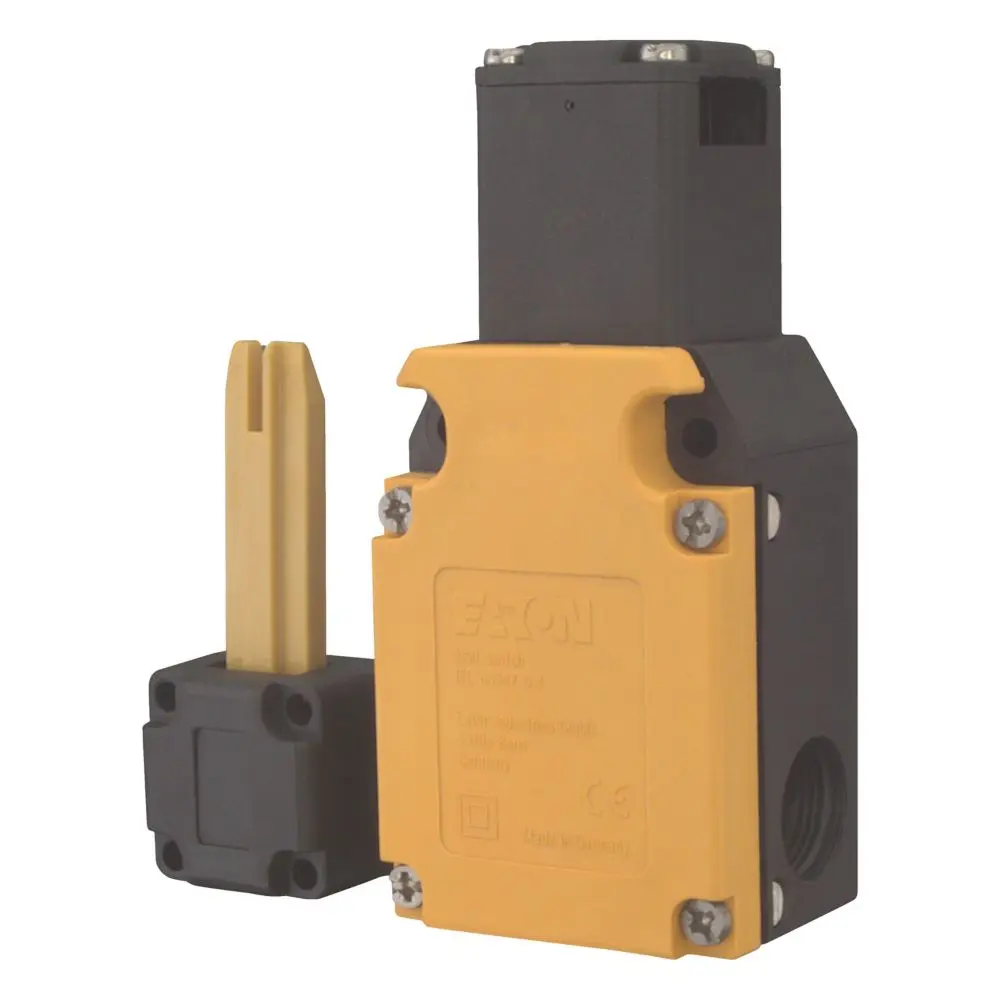

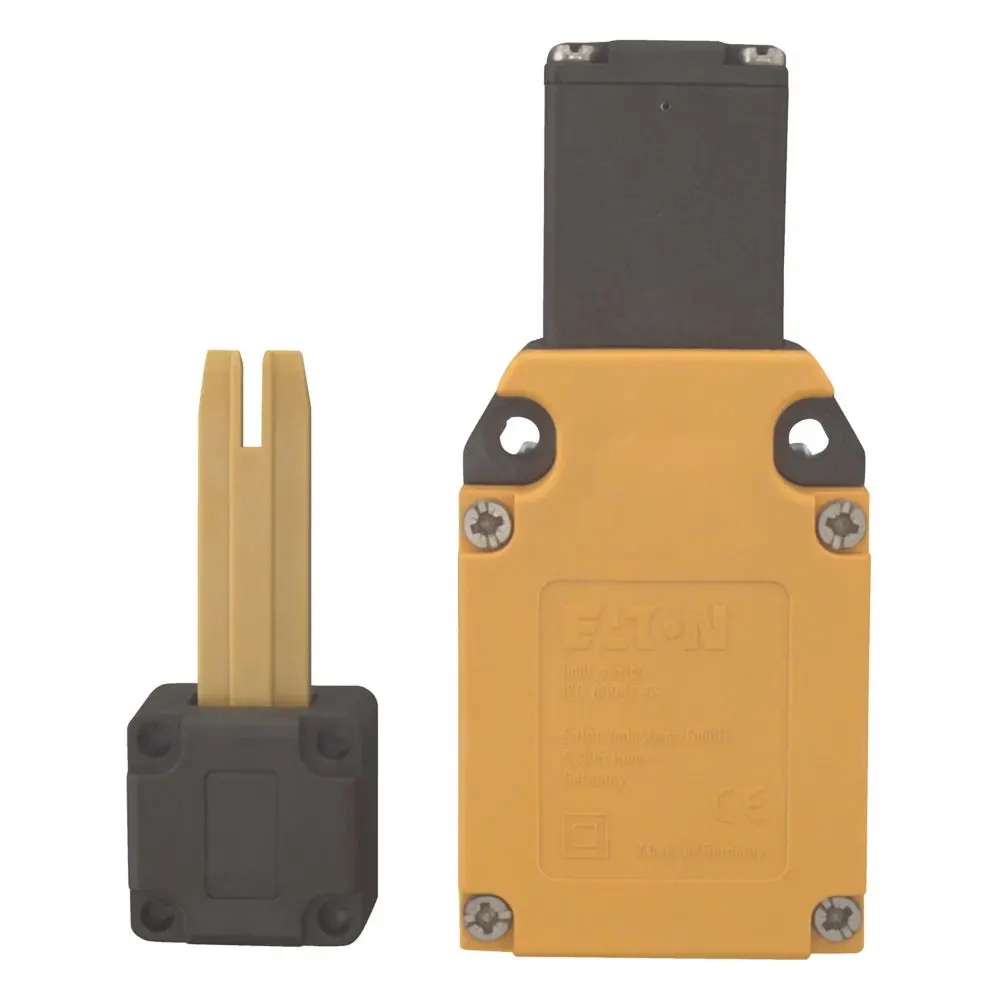

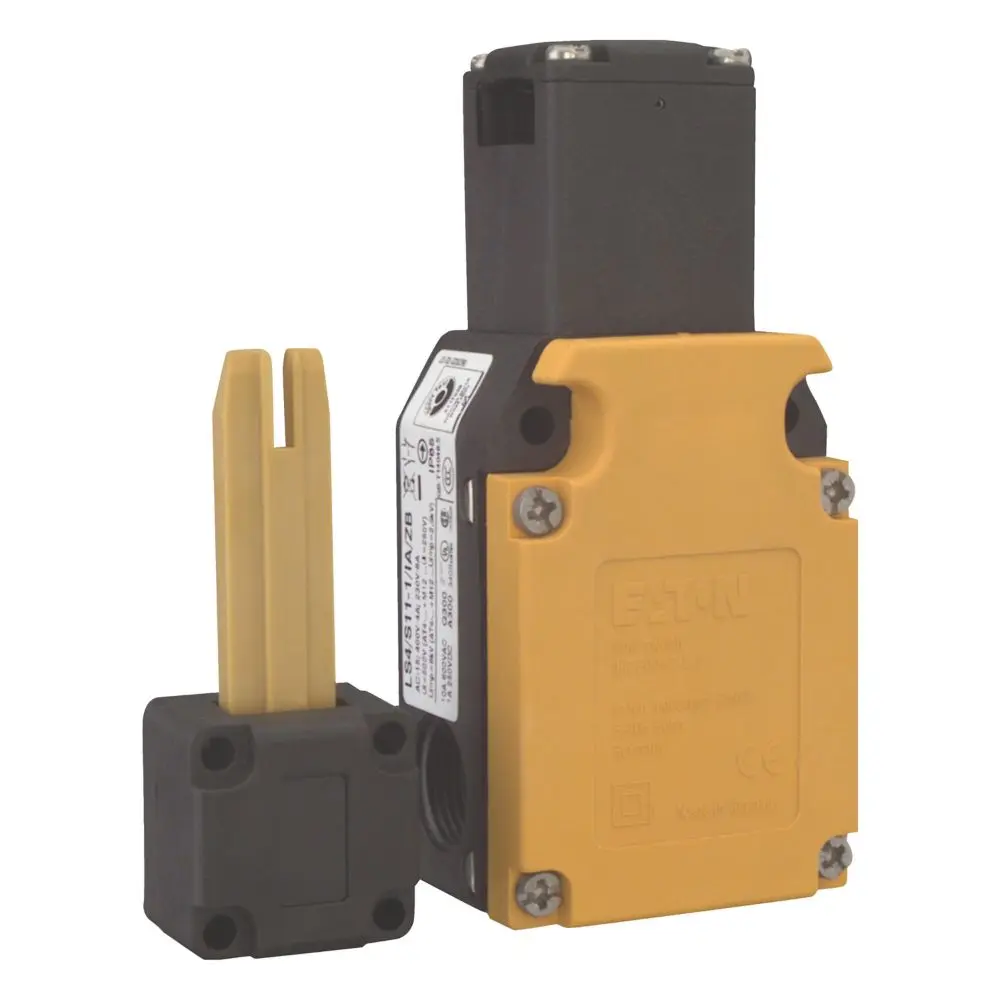

Eaton Moeller® series LS4 Safety position switch, Catalog Number 106858, Model Code LS4/S11-1/IA/ZB, EAN 4015081066186, with specifications including a product length of 42 mm, height of 130 mm, width of 65 mm, and weight of 0.227 kg. It operates within a temperature range of -25 °C to 70 °C and has a rated operational current of 10 A at 24 V.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series LS4 Safety position switch |
| Catalog Number | 106858 |
| Model Code | LS4/S11-1/IA/ZB |
| EAN | 4015081066186 |
| Product Length/Depth | 42 mm |
| Product Height | 130 mm |
| Product Width | 65 mm |
| Product Weight | 0.227 kg |
| Operating Frequency | 1800 Operations/h |
| Pollution Degree | 3 |
| Ambient Operating Temperature - Max | 70 °C |
| Ambient Operating Temperature - Min | -25 °C |
| Specification | Value |
|---|---|
| Type | Safety position switch |
| Features | Forced opening |
| Rated Operational Current (IE) at AC-15, 125 V | 6 A |
| Rated Operational Current (IE) at AC-15, 220 V, 230 V, 240 V | 6 A |
| Rated Operational Current (IE) at AC-15, 24 V | 10 A |
| Rated Operational Current (IE) at AC-15, 380 V, 400 V, 415 V | 4 A |
| Rated Insulation Voltage (UI) | 500 V |
| Degree of Protection | IP65 |
| Lifespan | 1,500,000 mechanical Operations |
| Shock Resistance | 5 g, Standard-action contact, Mechanical, Half-sinusoidal shock 20 ms |
| Repetition Accuracy | 0.02 mm (Contacts/switching capacity) |
