Eaton / Moeller Series
rounded plunger (center fixing), rotatable 90°, –40 °C to +70 °C, UL/CSA/CE

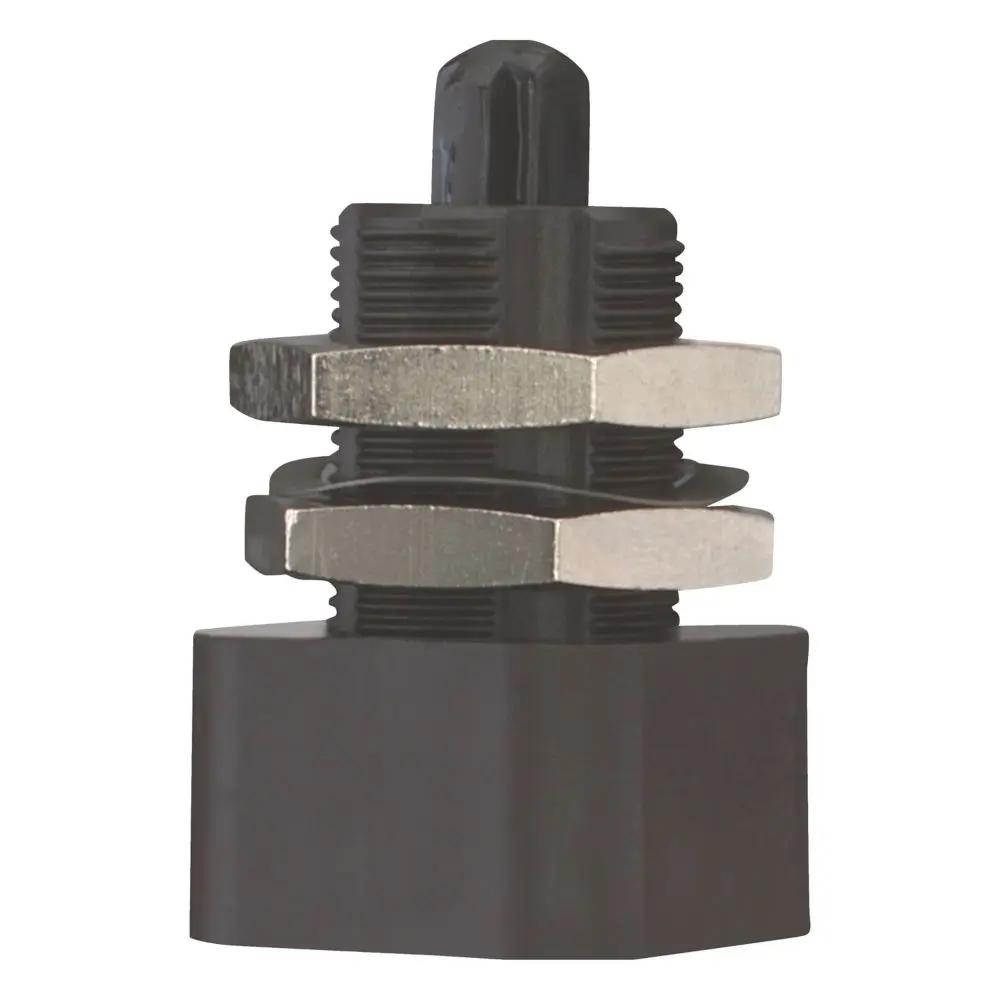

Eaton Moeller® series LS LS-XZS is a rounded plunger operating head designed for LS-series position and safety switches. The unit features a center fixing design and allows the operating head to be rotated 90° to adapt to the desired approach direction. It can be mounted in an enclosure wall or on a mounting plate with an M18 × 1 drilling. This component is non-electrical, generating no heat dissipation, and is suitable for operation in ambient temperatures between –40 °C and +70 °C. It complies with IEC/EN 60947-5 and meets product standards for corrosion resistance, thermal stability, and insulating material durability. Certified to UL 508, CSA C22.2 No. 14, and CE marking.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LS-XZS |
| Catalog Number | 114024 |
| Product Type | Rounded plunger |
| Product Subtype | Center fixing |
| Product Category | Operating head |
| Features | Head rotatable 90° to adapt to approach direction |
| Functions | Mounting in enclosure wall or mounting plate drilling (M18 × 1) |
| EAN | 4015081134465 |
| EL Number (Norway) | 4315223 |
| Length / Depth | 46 mm |
| Width | 25 mm |
| Height | 25 mm |
| Weight | 0.028 kg |
| Ambient Operating Temperature (Min) | –40 °C |
|---|---|
| Ambient Operating Temperature (Max) | +70 °C |
| Type of Control Element | Without actuator |
| Heat Dissipation (Current-dependent) | 0 W |
| Static Heat Dissipation | 0 W |
| Rated Operational Current (In) | 0 A (non-electrical component) |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability of Enclosures | Meets product standard requirements |
| Insulating Material Resistance | Meets product standard requirements |
| Resistance to Abnormal Heat/Fire | Meets product standard requirements |
| UV Resistance | On request |
| Mechanical Function | Meets requirements when installed per instruction leaflet (IL) |
| Compliance Standard | IEC/EN 60947-5 |
| Certifications | UL, CSA, CE |
