Eaton / Moeller Series
roller plunger (center fixing), rotatable 90°, –40 °C to +70 °C, UL/CSA/CE

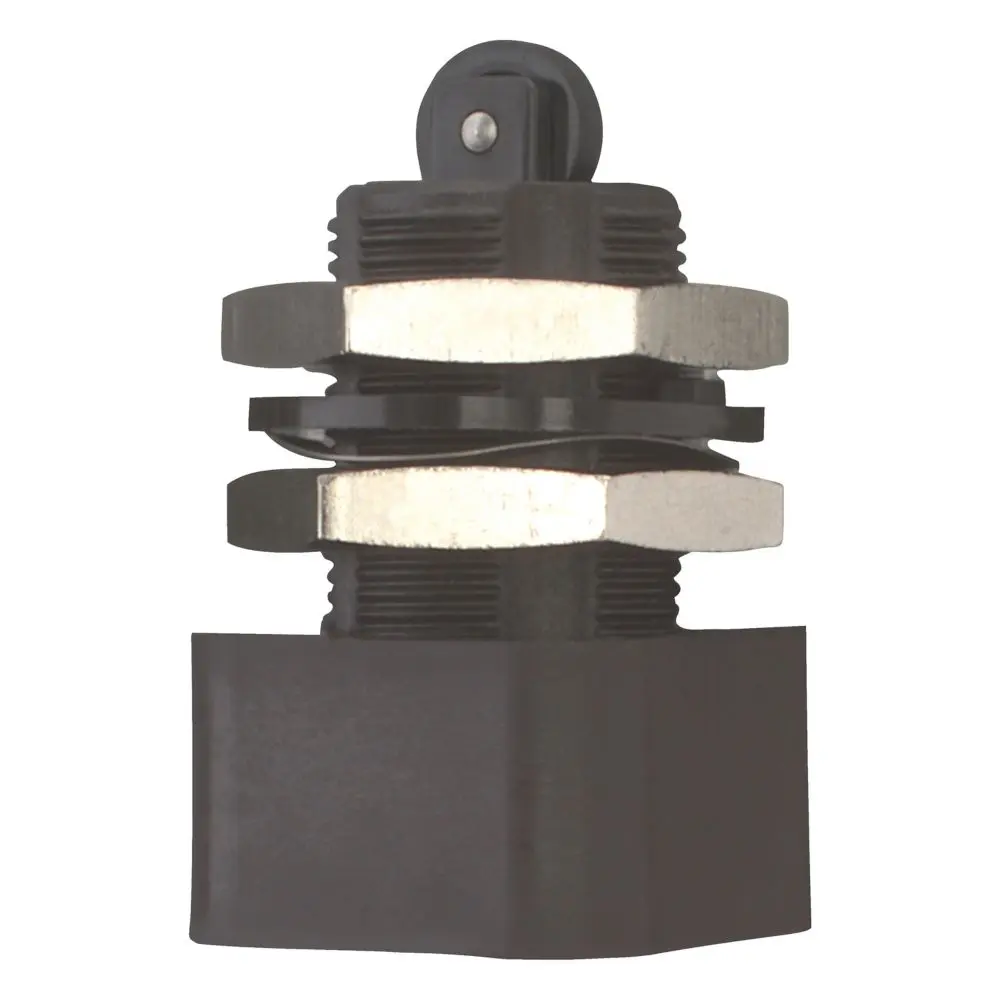

Eaton Moeller® series LS LS-XZRS is a roller plunger operating head with center fixing, designed for use with LS-series position and safety switches. The operating head can be rotated 90° for adaptation to different approach directions and is suitable for mounting in enclosure walls or mounting plate drillings (M18 × 1). It is a non-electrical mechanical component with no current carrying parts or heat dissipation. The unit operates from –40 °C to +70 °C and meets IEC/EN 60947-5 standards for thermal stability, corrosion resistance, and insulating material durability. Certified to UL 508, CSA C22.2 No. 14, IEC/EN 60947-5, and CE marking.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LS-XZRS |
| Catalog Number | 114025 |
| Product Type | Roller plunger |
| Product Subtype | Center fixing |
| Product Category | Operating head |
| Features | Head rotatable 90° for adaptation to approach direction |
| Functions | Mounting in enclosure wall or mounting plate (M18 × 1) |
| EAN | 4015081134472 |
| EL Number (Norway) | 4315224 |
| Length / Depth | 45 mm |
| Width | 25 mm |
| Height | 25 mm |
| Weight | 0.028 kg |
| Ambient Operating Temperature (Min) | –40 °C |
|---|---|
| Ambient Operating Temperature (Max) | +70 °C |
| Actuator Type | Roller cam |
| Heat Dissipation (Current-dependent) | 0 W |
| Static Heat Dissipation | 0 W |
| Rated Operational Current (In) | 0 A (non-electrical component) |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability of Enclosures | Compliant with IEC 60947-5 requirements |
| Insulating Material Resistance | Compliant with IEC 60947-5 requirements |
| UV Resistance | On request |
| Mechanical Function | Meets requirements when installed per instruction leaflet (IL) |
| Compliance Standard | IEC/EN 60947-5 |
| Certifications | UL, CSA, CE |
