Eaton / Moeller Series

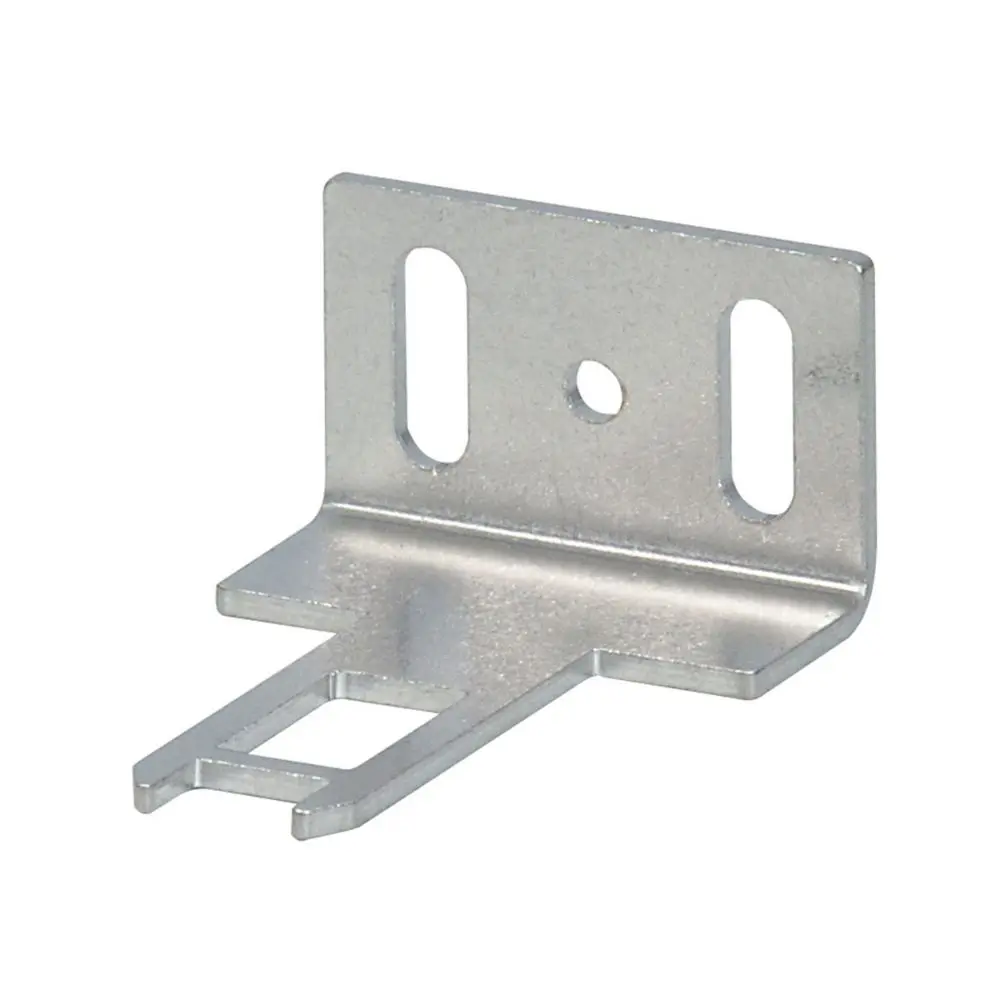

angled actuator, stainless steel, for swing doors ≥350 mm width, UL/CSA/CE
Eaton Moeller® series LS LS-XW-ZBZ is a short stainless-steel angled actuator designed for LS…ZBZ/X safety switch basic devices. It is specifically intended for swing doors with widths greater than 350 mm, ensuring accurate actuation and secure engagement. The actuator can be mounted in any position and maintains a repetition accuracy of 0.02 mm. It complies with IEC/EN 60947, operates in ambient temperatures from –25 °C to +40 °C, and withstands mechanical shocks up to 10 g. Certified to UL 508, CSA C22.2 No. 14, and CE marking.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LS-XW-ZBZ |
| Catalog Number | 106839 |
| Product Type | Angled actuator |
| Material | Stainless steel (short) |
| Function | For swing doors ≥ 350 mm width |
| Part Group Reference | LS…ZBZ/X |
| Mounting Position | As required |
| Repetition Accuracy | 0.02 mm |
| Mechanical Shock Resistance | 10 g (20 ms half-sine) |
| Operating Frequency | ≤ 800 operations per hour |
| Operating Ambient Temperature | –25 °C to +40 °C |
| Mechanical Holding Force (GS-ET-19) | XG/XW/XNG: 1700 N | XWA/XFG/XF: 1600 N | XNW: 1200 N |
| EL Number (Norway) | 4356183 |
| Rated Insulation Voltage (Ui) | 400 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 4000 V AC |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current (AC-15) | 6 A (24–240 V), 4 A (380–415 V) |
| Rated Operational Current (DC-13) | 3 A (24 V), 0.8 A (110 V), 0.3 A (220 V) |
| Short-Circuit Protection | Max. 6 A gG/gL fuse |
| Supply Frequency | Max. 400 Hz |
| Power Consumption | 8 VA (120 V AC) / 8 W (24 V DC) |
| Magnet Duty Factor | 100 % ED |
| Climatic Proofing | Damp heat constant (IEC 60068-2-78); cyclic (IEC 60068-2-30) |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability of Enclosure | Meets product standard requirements |
| Insulating Material Resistance | Meets product standard requirements |
| Resistance to Abnormal Heat/Fire | Meets product standard requirements |
| UV Resistance | On request |
| Compliance Standard | IEC/EN 60947-5; IEC/EN 61439 |
| Certifications | UL, CSA, CE |
