Eaton / Moeller Series
Adjustable roller lever, Ø40 mm rubber, rotatable 90°, corrosion-resistant, −40 °C to +70 °C, CE/UL/CSA/IEC

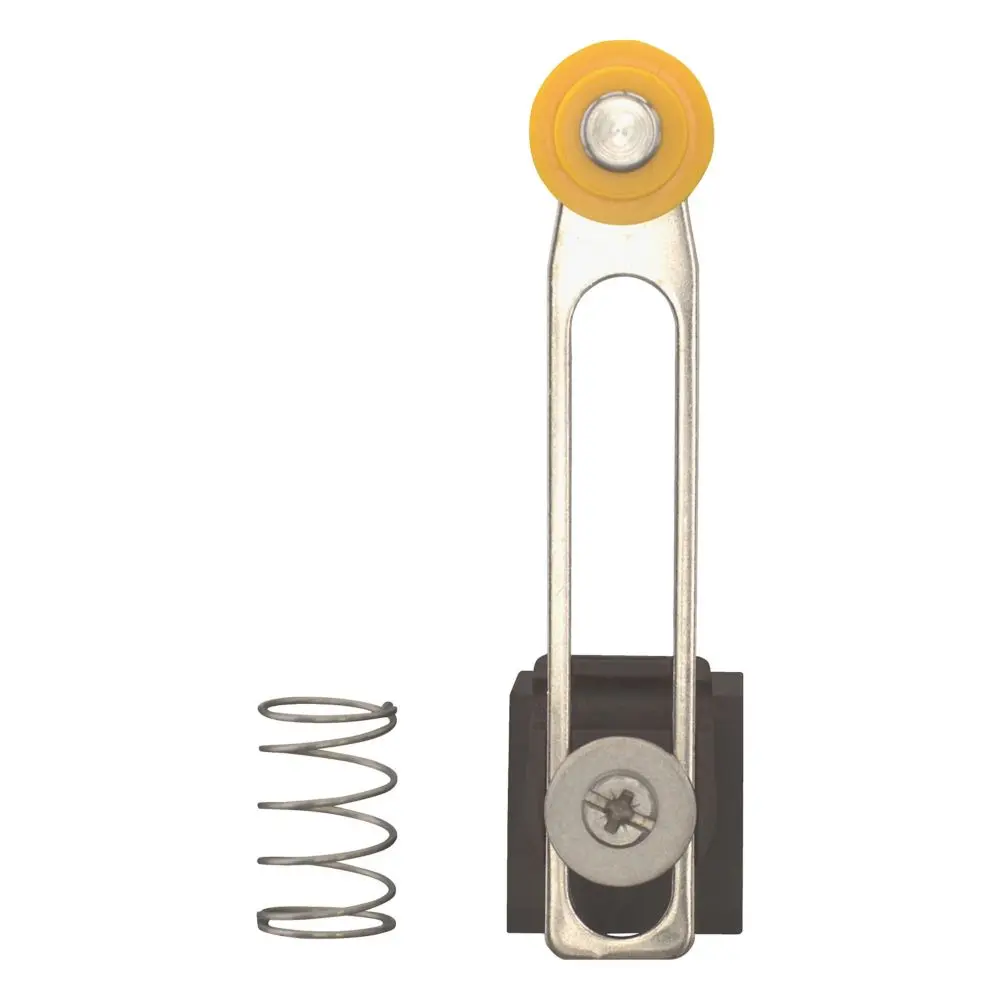

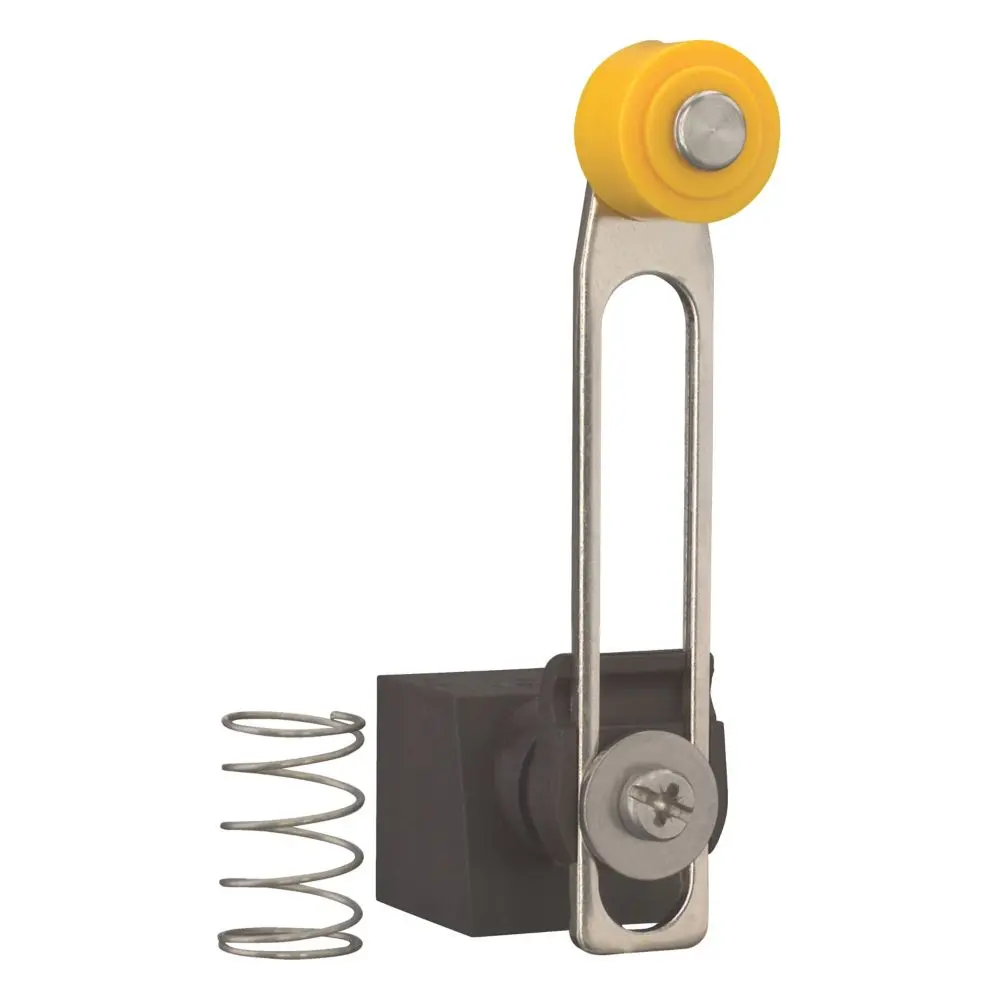

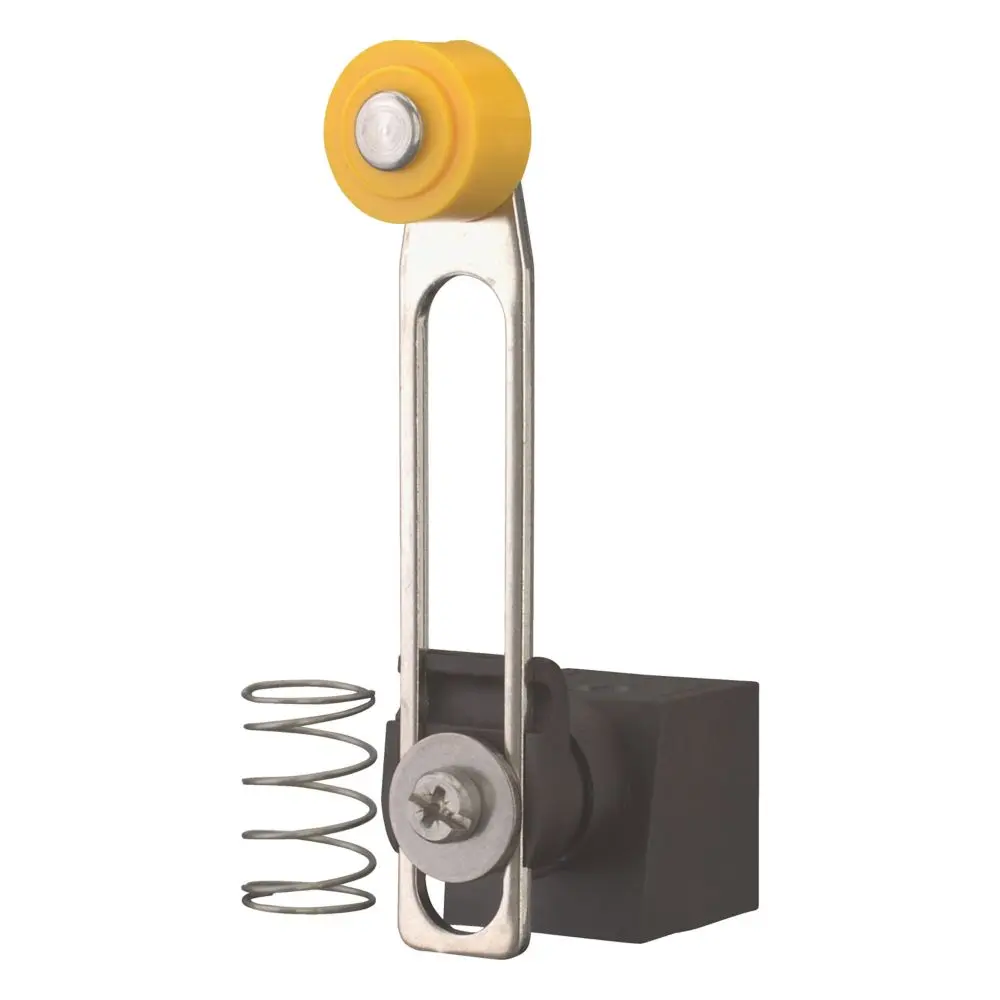

The Eaton Moeller® series LS Adjustable Roller Lever LS-XRLA40R is a durable actuator head designed for LS and LSM series position switches. It features a 40 mm rubber roller lever that can be adjusted and rotated 90° to adapt to different approach directions. Built to meet industrial and safety standards, it offers excellent mechanical durability, corrosion resistance, and operating reliability across a temperature range of −40 °C to +70 °C. The LS-XRLA40R complies with CE, UL 508, CSA C22.2 No. 14, and IEC/EN 60947-5 standards and is ideal for use in machinery safety and automation applications requiring precise mechanical actuation.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Catalog Number | 266130 |
| Model Code | LS-XRLA40R |
| EAN | 4015082661304 |
| Product Type | Adjustable Roller Lever |
| Actuator Type | Adjustable roller lever with rubber roller |
| Roller Diameter | 40 mm |
| Mounting Compatibility | Eaton Moeller® LS and LSM series switch bodies |
| Features | Head rotatable 90° for directional adaptation; rubber roller; corrosion-resistant construction |
| Product Length / Depth | 25 mm |
| Product Height | 114 mm |
| Product Width | 57 mm |
| Weight | 0.043 kg |
| Product Category | Operating Head |
| Global Catalog Reference | 266130 |
| Ambient Operating Temperature (min) | −40 °C |
|---|---|
| Ambient Operating Temperature (max) | +70 °C |
| Rated Operational Current (In) | 0 A (applicable to actuator head only) |
| Heat Dissipation (static) | 0 W |
| Heat Dissipation (dynamic) | 0 W |
| Thermal Stability / Enclosure Test | Meets IEC 60947-5 requirements |
| Corrosion Resistance | Meets product standard requirements |
| Mechanical Function | Complies when installed per Instruction Leaflet IL053001ZU |
| Resistance to Heat and Fire | Meets IEC 60947 requirements for insulating materials |
| UV Resistance | Available upon request |
| Degree of Protection (IP) | Determined by installed switch body (e.g., IP66/IP67) |
| Mechanical Impact Resistance | Meets IEC 60947-5 standards |
| Certifications / Compliance | CE; UL 508 (File E29184); CSA C22.2 No. 14 (File 012528); IEC/EN 60947-5; VDE; UL Category NKCR; CSA Class 3211-03 |
