Eaton / Moeller Series

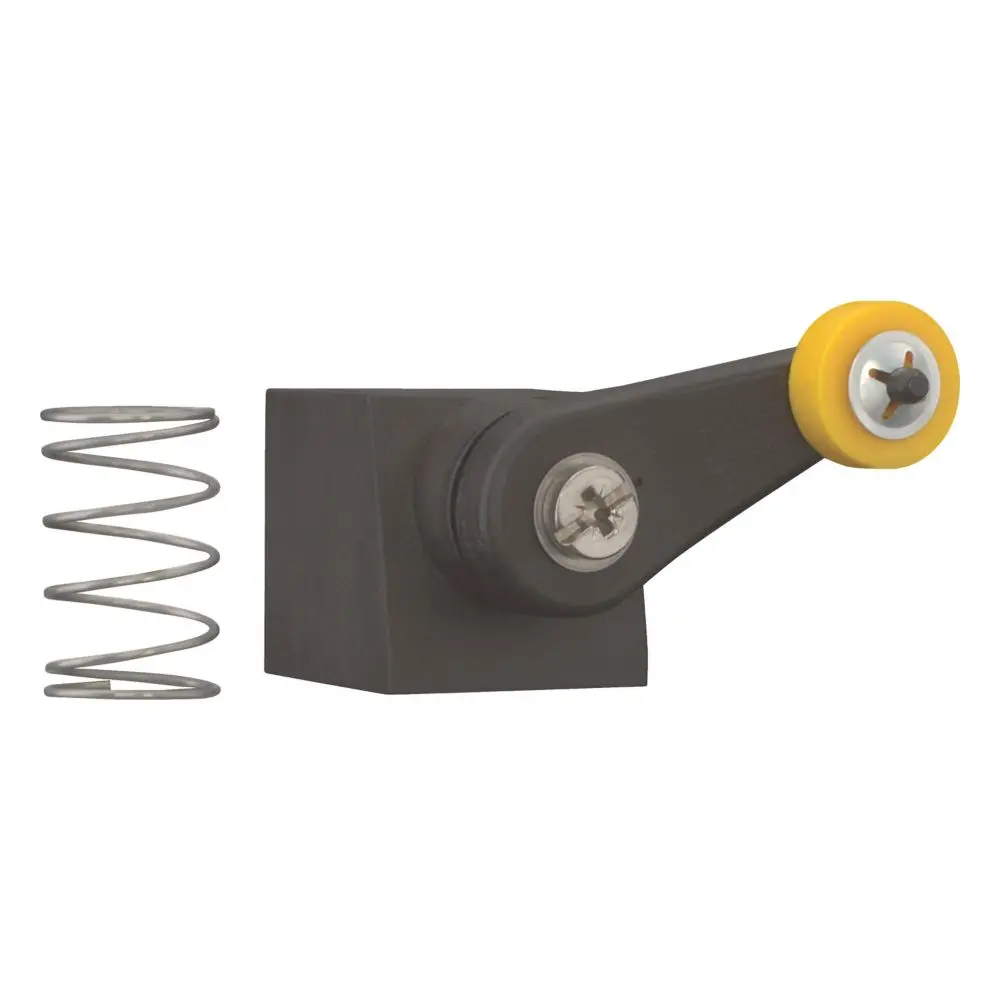

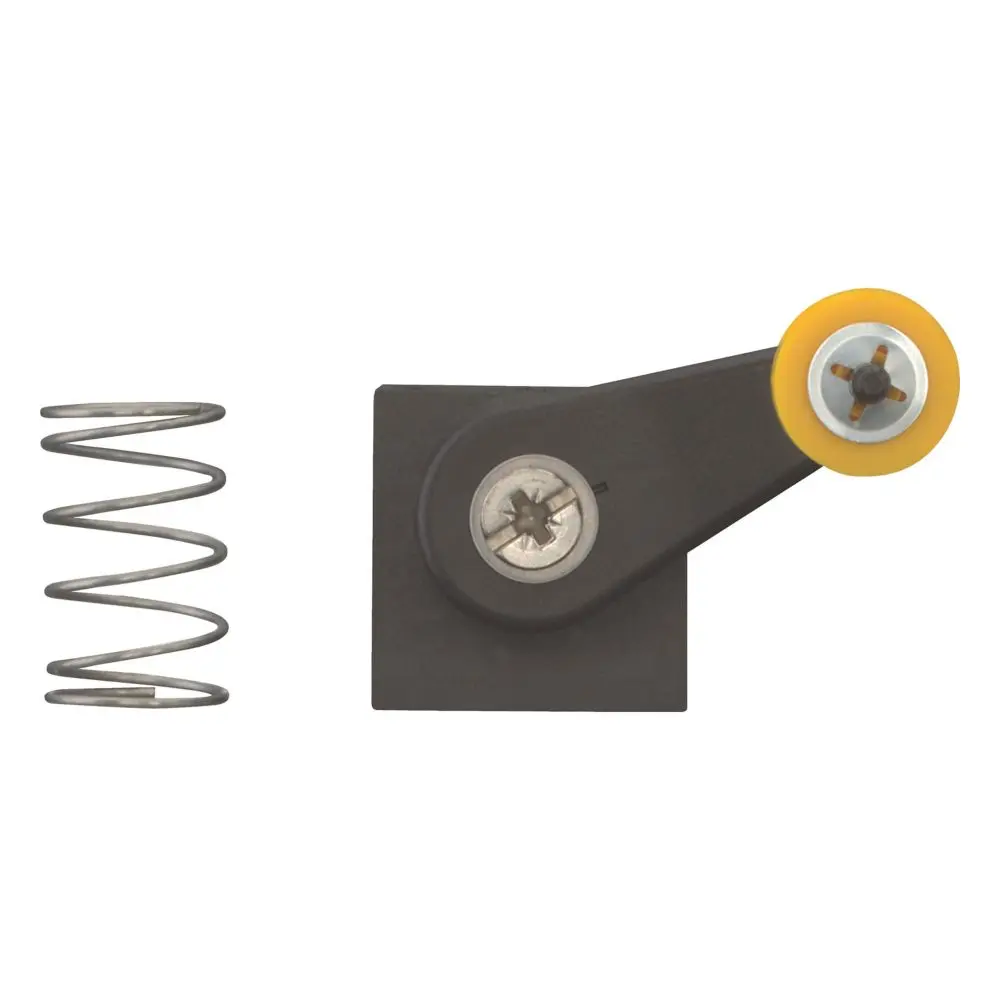

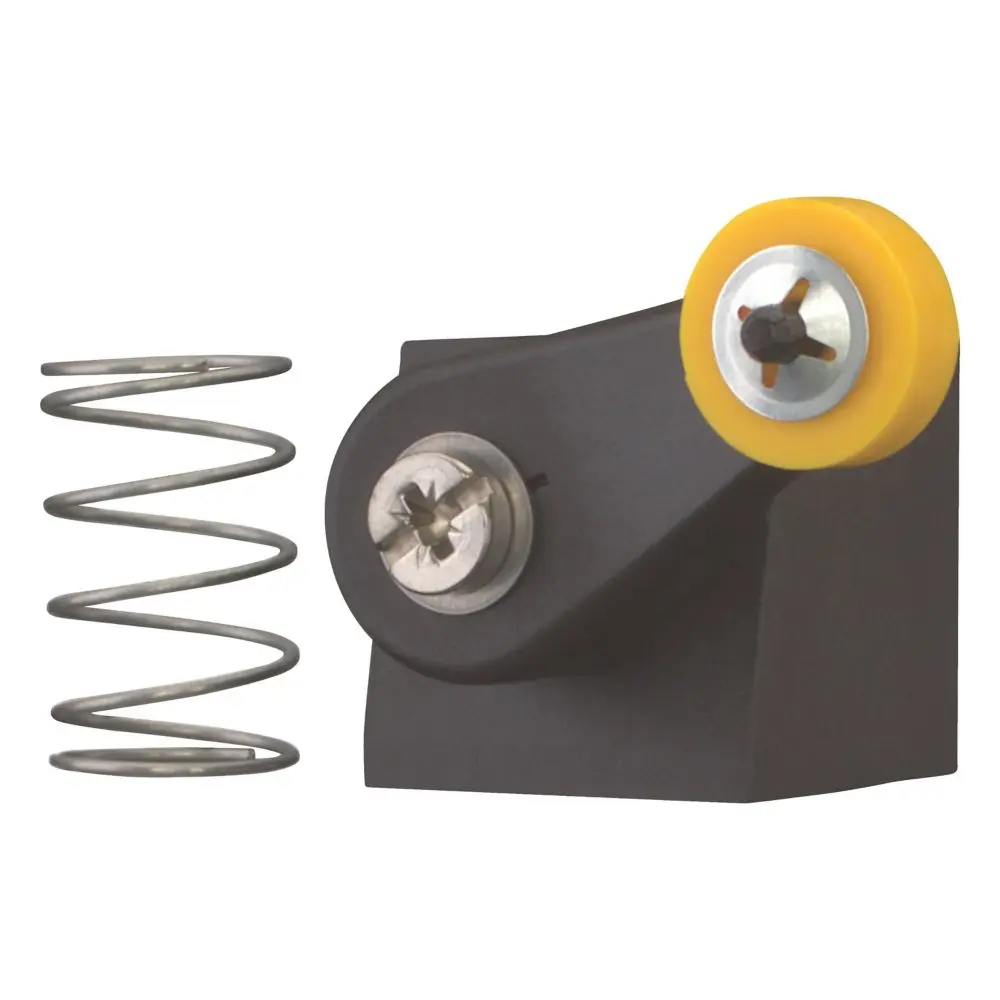

Eaton Moeller LS Rotary lever, 25mm length, 49mm height, CE marked.
Eaton Moeller® series LS Rotary lever, Catalog Number 266126, EAN 4015082661267, Length 25 mm, Height 49 mm, Width 46 mm, Weight 0.016 kg, CE Marked, compliant with EN 60947-5, IEC 60947-5, UL 508, CSA Std. C22.2 No. 14.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Product Name | Eaton Moeller® series LS Rotary lever |
| Catalog Number | 266126 |
| EAN | 4015082661267 |
| Product Length/Depth | 25 mm |
| Product Height | 49 mm |
| Product Width | 46 mm |
| Product Weight | 0.016 kg |
| Model Code | LS-XRL |
| Compliance | CE Marked |
| Certifications | EN 60947-5, IEC 60947-5, UL 508, CSA Std. C22.2 No. 14 |
| Specification | Value |
|---|---|
| Operating Head Rotation | 90° |
| Ambient Operating Temperature - Min | -40 °C |
| Ambient Operating Temperature - Max | 70 °C |
| Actuator Type | Rotary lever |
| Corrosion Resistance | Meets the product standard's requirements |
| Thermal Stability of Enclosures | Meets the product standard's requirements |
| Resistance of Insulating Materials to Normal Heat | Meets the product standard's requirements |
| Resistance of Insulating Material to Abnormal Heat/Fire | Meets the product standard's requirements |
| Resistance to Ultra-Violet (UV) Radiation | Please enquire |
| Mechanical Impact | Does not apply |
| Degree of Protection of Assemblies | Does not apply |
| Clearances and Creepage Distances | Meets the product standard's requirements |
| Protection Against Electric Shock | Does not apply |
