Eaton / Moeller Series
actuating rod, rotatable 90°, –25 °C to +70 °C, UL/CSA/CE

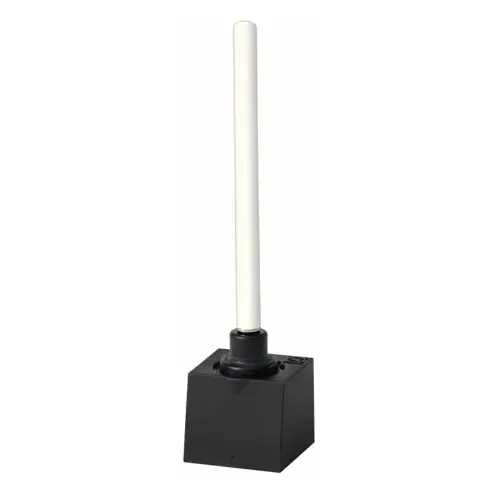

Eaton Moeller® series LS LS-XOR is an accessory actuating rod designed for use with LS-series position and safety switches. It allows 90° rotation of the operating head to adapt to different approach directions. The unit is suitable for ambient operating temperatures from –25 °C to +70 °C and meets the mechanical, thermal, and corrosion resistance requirements of IEC/EN 60947-5. The LS-XOR is a non-current-carrying mechanical component with zero heat dissipation and is compliant with UL 508, CSA C22.2 No. 14, and CE certifications. It is not to be used with LS…-CC basic devices.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LS-XOR |
| Catalog Number | 290190 |
| Product Type | Accessory |
| Product Subtype | Actuating rod |
| Product Category | Operating head |
| Features | Operating head rotatable 90° for flexible approach direction |
| EAN | 4015082901905 |
| EL Number (Norway) | 4356169 |
| Length / Depth | 25 mm |
| Width | 25 mm |
| Height | 120 mm |
| Weight | 0.035 kg |
| Ambient Operating Temperature (Min) | –25 °C |
|---|---|
| Ambient Operating Temperature (Max) | +70 °C |
| Type of Control Element | Without actuator |
| Heat Dissipation | 0 W (static and current-dependent) |
| Rated Operational Current (In) | 0 A (non-electrical component) |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability | Compliant with IEC 60947-5 requirements |
| Insulating Material Resistance | Compliant with IEC 60947-5 requirements |
| UV Resistance | On request |
| Mechanical Function | Meets requirements when installed per instruction leaflet (IL) |
| Compliance Standard | IEC/EN 60947-5 |
| Certifications | UL, CSA, CE |
