Eaton / Moeller Series
roller lever (long), rotatable 90°, –40 °C to +70 °C, UL/CSA/CE

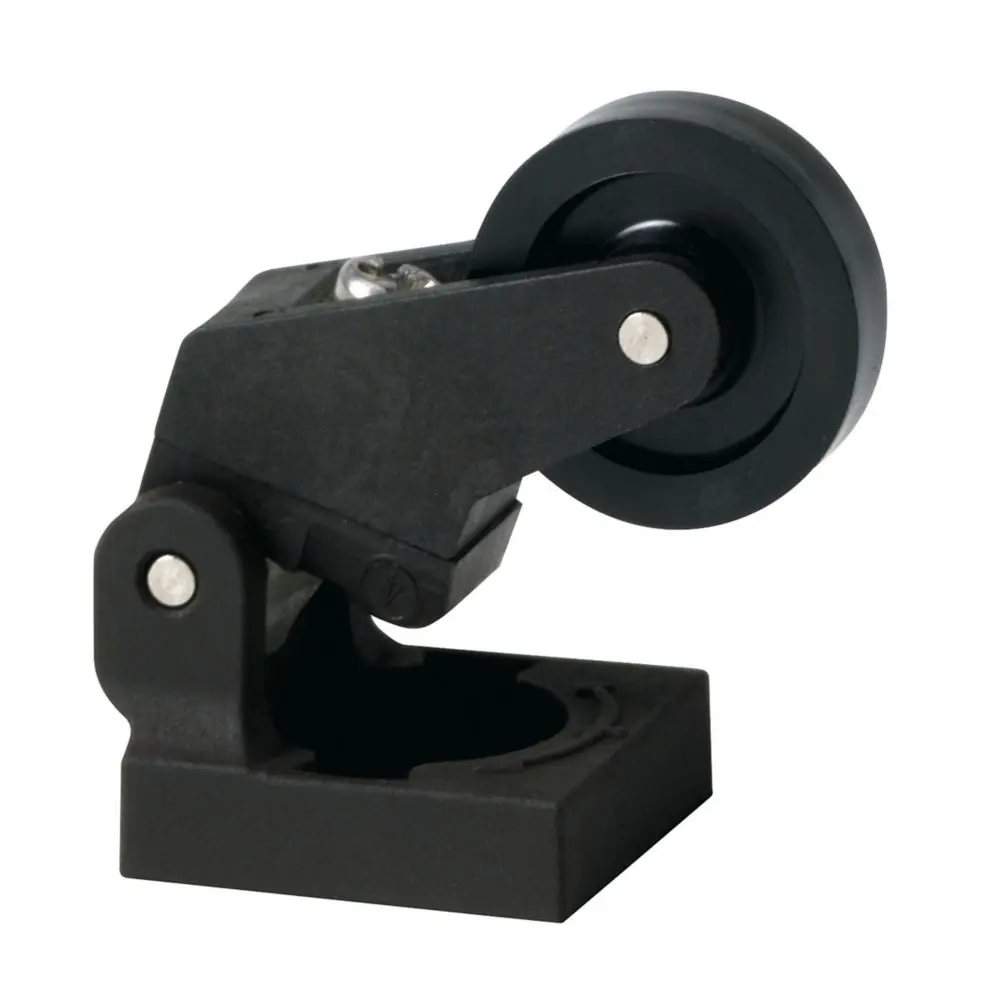

Eaton Moeller® series LS LS-XL is a long roller lever actuator designed for LS(M)-series basic position switches. Built to EN 50047 Form E standards, it allows 90° rotational adjustment of the operating head for flexible approach directions. The actuator is a non-electrical mechanical component with zero heat dissipation and meets all design verification requirements for corrosion resistance, thermal stability, and insulating material strength per IEC/EN 61439. It operates between –40 °C and +70 °C and complies with IEC/EN 60947-5, UL 508, CSA C22.2 No. 14, and CE marking.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LS-XL |
| Catalog Number | 266123 |
| Product Type | Roller lever (long) |
| Design Standard | EN 50047 Form E |
| For Use With | LS(M)-series basic devices |
| Operating Head Rotation | 90° adjustable |
| Type of Control Element | Roller lever |
| Product Category | Drive head for position switches |
| EL Number (Norway) | 4356042 |
| Operating Temperature Range | –40 °C to +70 °C |
|---|---|
| Rated Operational Current (In) | 0 A (non-electrical component) |
| Heat Dissipation (static / current-dependent) | 0 W |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability of Enclosure | Meets product standard requirements |
| Resistance to Abnormal Heat/Fire | Meets product standard requirements |
| UV Resistance | On request |
| Mechanical Function Verification | Compliant when installed per instruction leaflet (IL) |
| Compliance Standard | IEC/EN 61439 and IEC/EN 60947-5 |
| Certifications | UL, CSA, CE |
