Eaton / Moeller Series

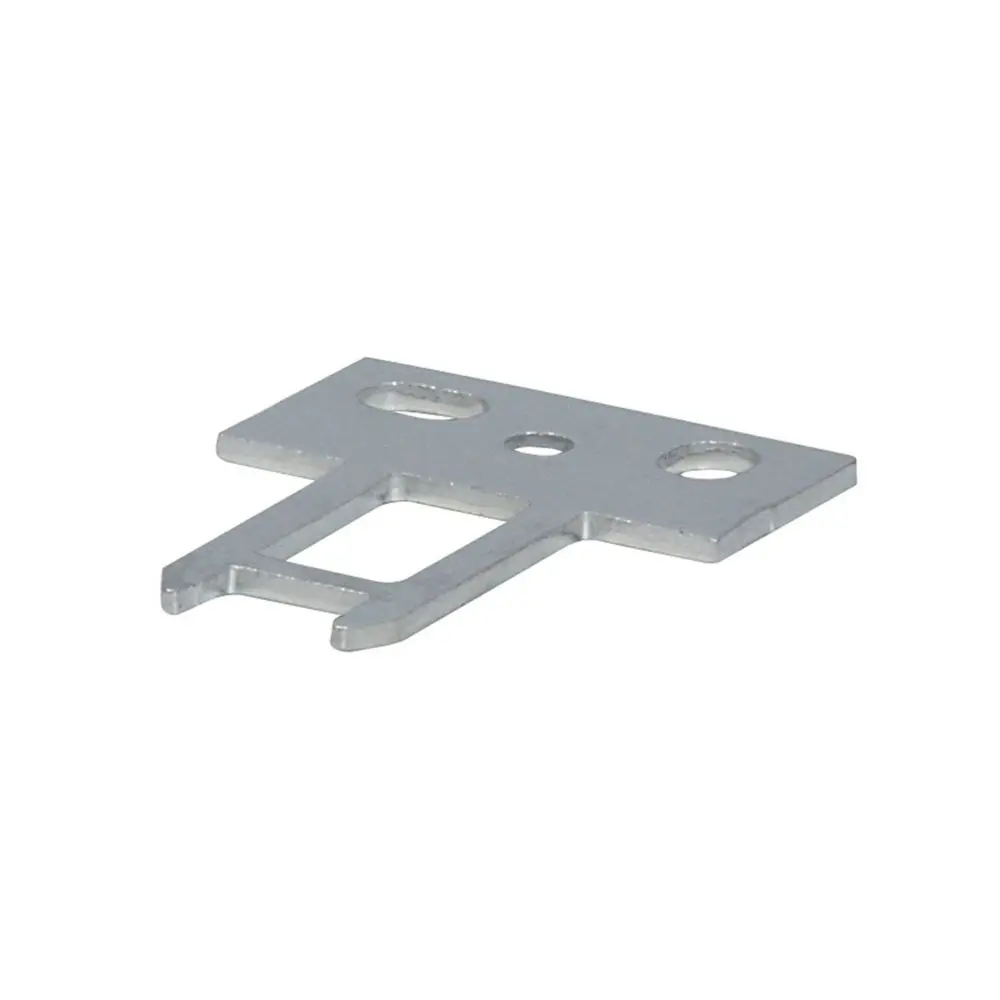

actuator (flat), stainless steel, for sliding doors, UL/CSA/CE
Eaton Moeller® series LS LS-XG-ZBZ is a stainless steel flat actuator designed for use with LS…ZBZ/X safety switch basic devices. It is suitable for sliding doors and can be mounted in any position. The actuator provides precise operation with a repetition accuracy of 0.02 mm and supports up to 800 operations per hour. It complies with IEC/EN 60947-5 and GS-ET-19 requirements for mechanical reliability, corrosion resistance, and heat stability. Certified to UL 508, CSA C22.2 No. 14, IEC/EN 60947-5, and CE marking.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LS-XG-ZBZ |
| Catalog Number | 106833 |
| Product Type | Actuator (flat) |
| Material | Stainless steel |
| Application | For sliding doors |
| Mounting Position | As required |
| Repetition Accuracy | 0.02 mm |
| Mechanical Shock Resistance | 10 g (20 ms half-sine) |
| Operating Frequency | ≤ 800 operations per hour |
| Operating Ambient Temperature | –25 °C to +40 °C |
| Mechanical Holding Force (GS-ET-19) | XG/XW/XNG: 1700 N | XWA/XFG/XF: 1600 N | XNW: 1200 N |
| Rated Insulation Voltage (Ui) | 400 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 4000 V AC |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current (AC-15) | 6 A (24–240 V), 4 A (380–415 V) |
| Rated Operational Current (DC-13) | 3 A (24 V), 0.8 A (110 V), 0.3 A (220 V) |
| Short-Circuit Protection | Max. 6 A gG/gL fuse |
| Supply Frequency | Max. 400 Hz |
| Power Consumption | 8 VA (120 V AC) / 8 W (24 V DC) |
| Magnet Duty Factor | 100 % ED |
| Climatic Proofing | Damp heat constant (IEC 60068-2-78); cyclic (IEC 60068-2-30) |
| Compliance Standard | IEC/EN 60947-5; UL 508; CSA C22.2 No. 14 |
| Certifications | UL, CSA, CE |
