Eaton / Moeller Series

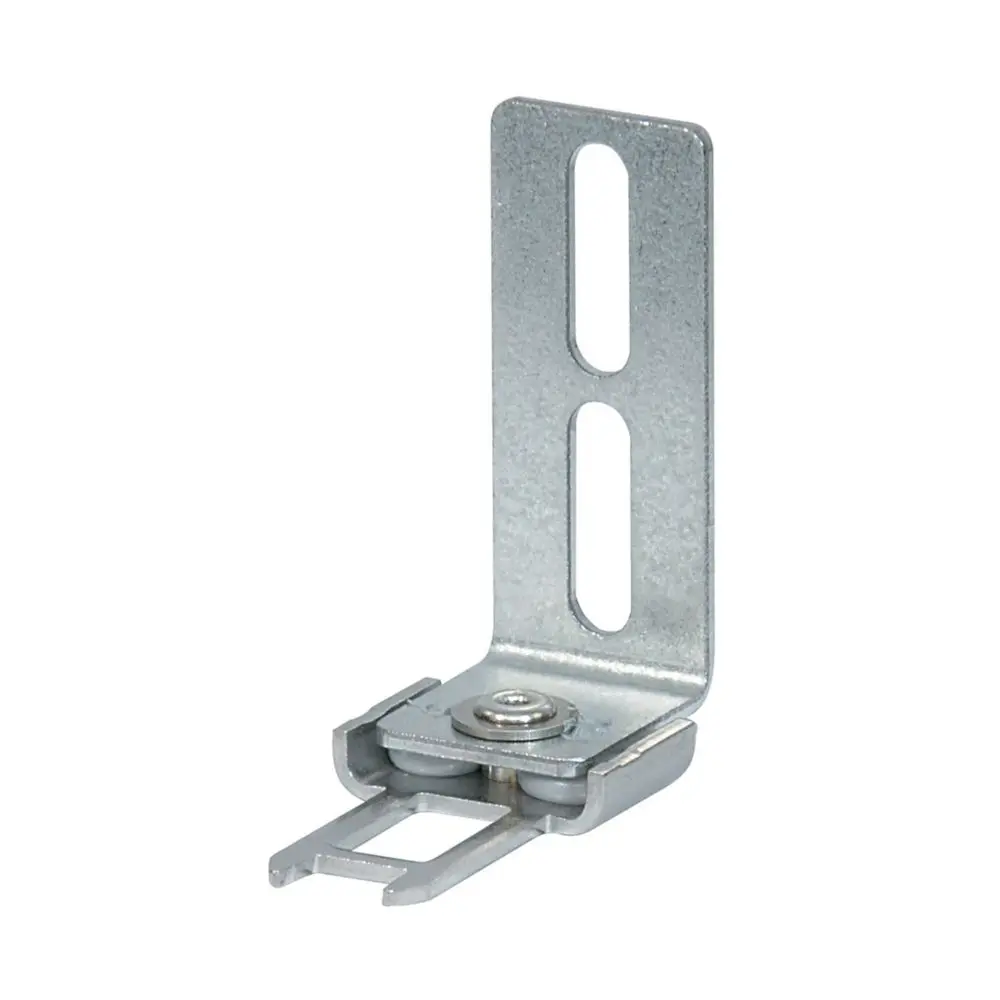

actuator (angled, flexible), stainless steel, for doors that do not close precisely, UL/CSA/CE
Eaton Moeller® series LS LS-XF-ZBZ is an angled, flexible actuator made of stainless steel for LS…ZBZ/X safety switch units. It is designed specifically for doors and guards that do not close precisely, ensuring consistent operation and engagement. The actuator can be mounted in any position and complies with IEC/EN 60947 and GS-ET-19 safety standards. It operates in ambient temperatures from –25 °C to +40 °C and provides high mechanical reliability with a repetition accuracy of 0.02 mm. Certified to UL 508, CSA C22.2 No. 14, IEC/EN 60947-5, and CE marking.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LS-XF-ZBZ |
| Catalog Number | 106832 |
| Product Type | Actuator (angled, flexible) |
| Material | Stainless steel |
| Application | For doors that do not close precisely |
| Mounting Position | As required |
| Repetition Accuracy | 0.02 mm |
| Mechanical Shock Resistance | 10 g (20 ms half-sine) |
| Operating Frequency | ≤ 800 operations per hour |
| Operating Ambient Temperature | –25 °C to +40 °C |
| Mechanical Holding Force (GS-ET-19) | XG/XW/XNG: 1700 N | XWA/XFG/XF: 1600 N | XNW: 1200 N |
| Rated Insulation Voltage (Ui) | 400 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 4000 V AC |
| Overvoltage Category / Pollution Degree | III / 3 |
| Rated Operational Current (AC-15) | 6 A (24–240 V), 4 A (380–415 V) |
| Rated Operational Current (DC-13) | 3 A (24 V), 0.8 A (110 V), 0.3 A (220 V) |
| Short-Circuit Protection | Max. 6 A gG/gL fuse |
| Supply Frequency | Max. 400 Hz |
| Power Consumption | 8 VA (120 V AC) / 8 W (24 V DC) |
| Magnet Duty Factor | 100 % ED |
| Climatic Proofing | Damp heat, constant (IEC 60068-2-78); cyclic (IEC 60068-2-30) |
| Compliance Standard | IEC/EN 60947-5; UL 508; CSA C22.2 No. 14 |
| Certifications | UL, CSA, CE |
