Eaton / Moeller Series
actuator (flat type), horizontal mounting, IEC/EN 60947, UL/CSA/CE

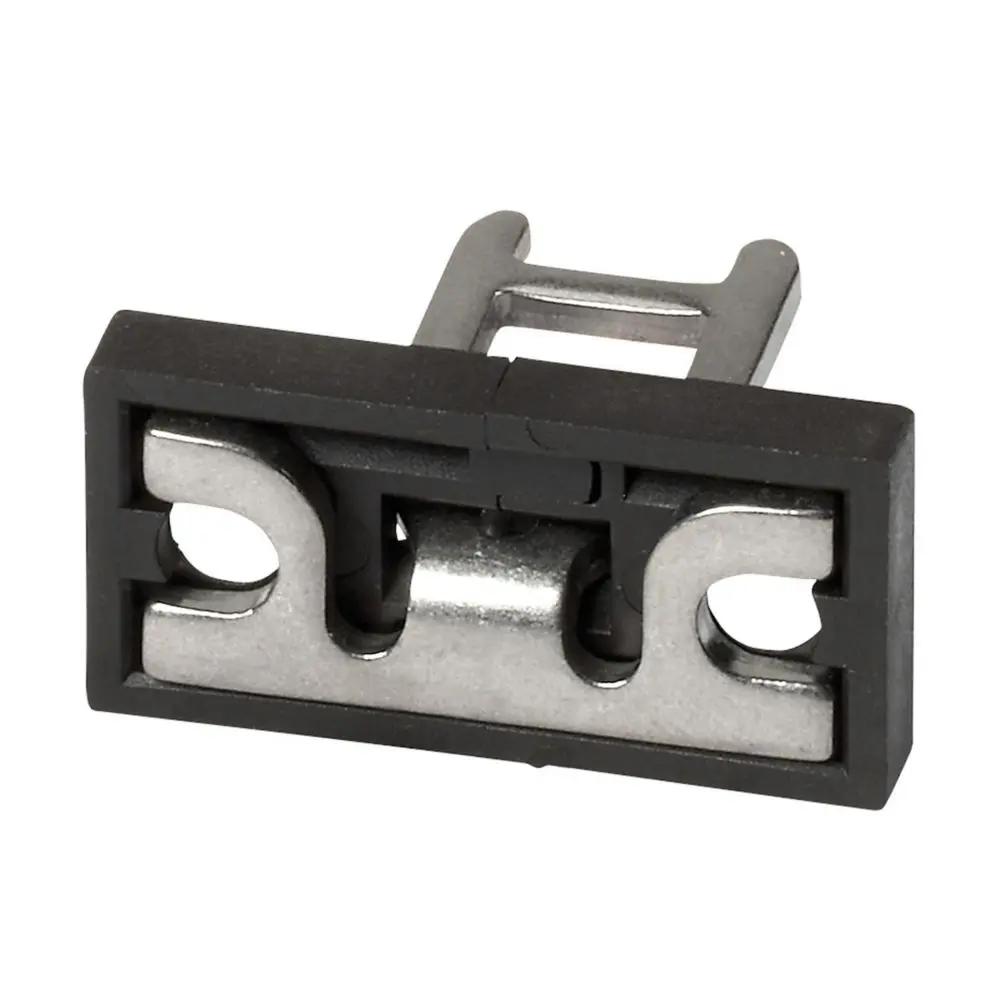

Eaton Moeller® series LS LS-XB-ZB is a flat actuator designed for LS-series safety and position switches. When inserted, the N/O contact opens, and the N/C contact closes. It can be mounted in any position and complies with IEC/EN 60947 standards. The unit features a repetition accuracy of 0.02 mm, mechanical shock resistance up to 25 g, and supports a maximum operating frequency of 1800 operations per hour. Certified to UL 508, CSA C22.2 No. 14, and CE marking.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LS-XB-ZB |
| Catalog Number | 106872 |
| Product Type | Actuator (flat type) |
| Mounting | Horizontal mounting |
| Function | With actuator inserted: N/O contact open, N/C contact closed |
| Applicable Devices | LS…ZB series |
| Mounting Position | As required |
| Repetition Accuracy | 0.02 mm |
| Mechanical Shock Resistance | 25 g (20 ms half-sine) |
| Operating Frequency | ≤ 1800 operations per hour |
| Rated Impulse Withstand Voltage (Uimp) | 6000 V AC |
|---|---|
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Operational Current (Ie, AC-15) | 10 A (24 V), 6 A (220–240 V), 4 A (380–415 V) |
| Rated Operational Current (Ie, DC-13) | 3 A (24 V), 0.8 A (110 V), 0.3 A (220 V) |
| Supply Frequency | Max. 400 Hz |
| Short-Circuit Protection | Max. 6 A gG/gL fuse |
| Terminal Capacity (Solid) | 1× (0.75–2.5) mm² / 2× (0.75–1.5) mm² |
| Terminal Capacity (Flexible w/ Ferrule) | 1× (0.5–1.5) mm² / 2× (0.5–1.5) mm² |
| Heat Dissipation (Static/Current-Dependent) | 0 W |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability of Enclosure | Meets product standard requirements |
| Insulating Material Resistance | Meets product standard requirements |
| Resistance to Abnormal Heat/Fire | Meets product standard requirements |
| UV Resistance | On request |
| Climatic Proofing | Damp heat constant (IEC 60068-2-78) / Cyclic (IEC 60068-2-30) |
| Compliance Standard | IEC/EN 60947 |
| Certifications | UL, CSA, CE |
