Eaton / Moeller Series
6A, 1NO+1NC, position switch, roller plunger, IP66/IP67, CE/UL/CSA/IEC
The Eaton Moeller® series LS-S11/P is a precision position switch designed for reliable performance in industrial automation and control systems. It features a roller plunger actuator with slow-action contacts (1 N/O + 1 N/C) and supports both forced and positive opening functions. The device offers high mechanical durability of up to 8 million operations and a rated operational current of 6 A at 400 V AC. With an IP66/IP67 protection rating, it provides superior resistance to dust and water ingress, suitable for harsh environments. Constructed with a yellow insulated plastic housing, it operates between -25 °C and +70 °C and complies with major international standards, including CE, UL 508, CSA, and IEC/EN 60947-5.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Catalog Number | 106788 |
| Model Code | LS-S11/P |
| Product Type | Position Switch (Roller Plunger) |
| Actuator Type | Roller plunger, straight cam alignment |
| Contacts | 1 N/O + 1 N/C (Form C) |
| Switch Function | Slow-action |
| Mounting Position | As required |
| Enclosure Material | Insulated plastic, yellow |
| Operating Frequency | 6,000 operations/hour |
| Mechanical Lifespan | 8 million operations |

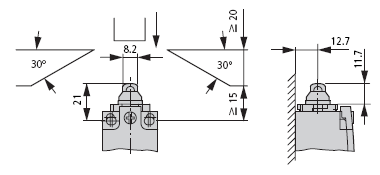

| Product Dimensions (H × W × D) | 86 mm × 31 mm × 33.5 mm |
| Weight | 0.057 kg |
| Rated Operational Current (AC-15, 400 V) | 4 A |
|---|---|
| Rated Operational Current (AC-15, 230 V) | 6 A |
| Rated Operational Current (DC-13, 24 V) | 3 A |
| Rated Operational Current (DC-13, 125 V) | 0.8 A |
| Rated Insulation Voltage (Ui) | 400 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV AC |
| Rated Conditional Short-Circuit Current (Iq) | 1 kA |
| Short-Circuit Protection | Max 6 A gG/gL fuse |
| Degree of Protection | IP66/IP67 (NEMA Other) |
| Connection Type | Screw terminals |
| Terminal Capacity (Solid) | 1 × 0.5 – 2.5 mm² |
| Terminal Capacity (Flexible with Ferrule) | 1 × 0.5 – 1.5 mm² |
| Ambient Temperature Range | −25 °C to +70 °C |
| Operating Speed | Max 1 m/s (mechanical actuation) |
| Shock Resistance | 25 g (20 ms half-sinusoidal) |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Certifications | CE, UL 508 (File E29184), CSA (File 012528), IEC/EN 60947-5 |
