Eaton / Moeller Series

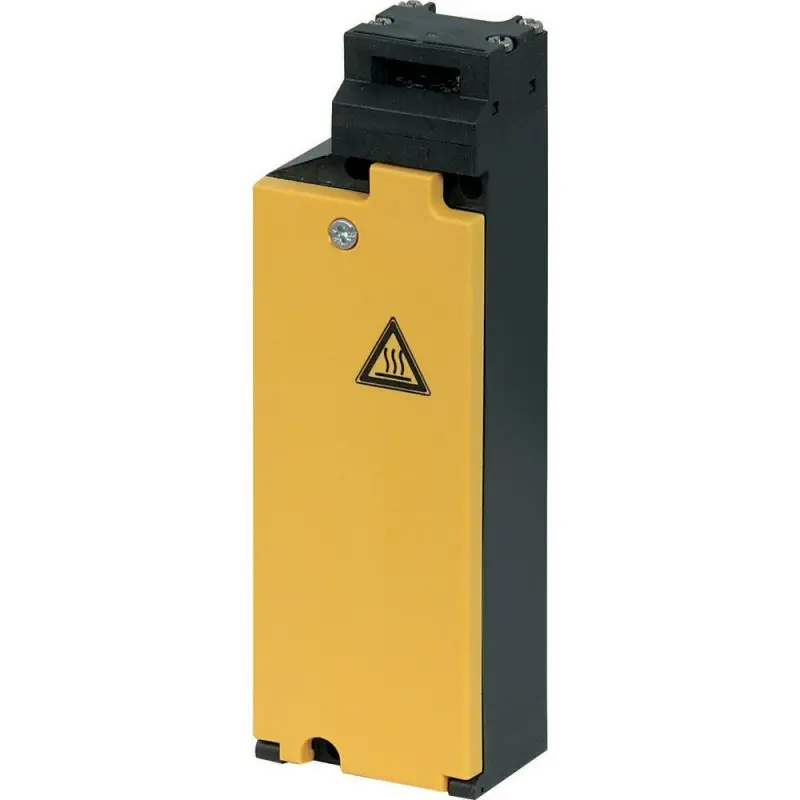

safety position switch (spring-powered interlock), 2 N/C, slow-action, forced opening, IP65, UL/CSA/CE
Eaton Moeller® series LS safety position switch LS-S02-24DFT-ZBZ/X is a basic spring-powered interlock unit with two normally closed (2 N/C) contacts and slow-action switching with positive opening to IEC/EN 60947-5-1. It includes interlock monitoring and an auxiliary release mechanism for commissioning. The insulated plastic housing provides IP65 (NEMA 13) protection when used with V-M20 (206910) cable glands (max. 9 mm thread length). The device operates at 24 V DC control voltage and functions over an ambient temperature range of –25 °C to +40 °C. It has a mechanical life of 1 million operations and a repetition accuracy of 0.02 mm. Rated operational currents reach 6 A (AC-15) and 3 A (DC-13). Certifications include UL 508, CSA C22.2 No. 14, and CE marking.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® series LS |
|---|---|
| Model | LS-S02-24DFT-ZBZ/X |
| Catalog Number | 106823 |
| Product Type | Safety position switch (spring-powered interlock) |
| Contacts | 2 N/C (slow-action, positive opening) |
| Interlock Principle | Closed-circuit (spring-powered) |
| Auxiliary Release | Yes (sealable mechanism for commissioning) |
| Enclosure Material | Plastic (insulated) |
| Connection Type | Screw terminal |
| Degree of Protection | IP65 / NEMA 13 |
| Mounting Position | As required |
| Repetition Accuracy | 0.02 mm |
| Lifespan (Mechanical) | 1 × 10⁶ operations |
| Operating Frequency | ≤ 800 operations per hour |
| Operating Temperature Range | –25 °C to +40 °C |
| Dimensions (L × W × H) | 39 mm × 60 mm × 173 mm |
| Rated Control Voltage (Us) | 24 V DC |
|---|---|
| Rated Insulation Voltage (Ui) | 400 V |
| Rated Impulse Withstand (Uimp) | 4 kV AC |
| Utilization Category & Ie | AC-15: 6 A (24–240 V), 4 A (380–415 V); DC-13: 3 A (24 V), 0.8 A (110 V), 0.3 A (220 V) |
| Supply Frequency | Max. 400 Hz |
| Short-Circuit Protection | Max. 6 A gG/gL fuse (contacts), Iq 1 kA |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Terminal Capacity (Solid) | 1×(0.75–2.5) mm² or 2×(0.75–1.5) mm² |
| Terminal Capacity (Flexible w/ Ferrule) | 1×(0.5–1.5) mm² or 2×(0.5–1.5) mm² |
| Actuating Force (Begin/End Stroke) | 25 N / 15 N |
| Mechanical Holding Force | 1700 N (XG/XW/XNG); 1600 N (XWA/XFG/XF); 1200 N (XNW) |
| Magnet Duty Factor | 100 % ED |
| Certifications | UL, CSA, CE |
