Eaton / Moeller Series
6A AC-15, 1NO+1NC, safety position switch, snap-action & positive opening, IEC/EN/UL/CSA/CE

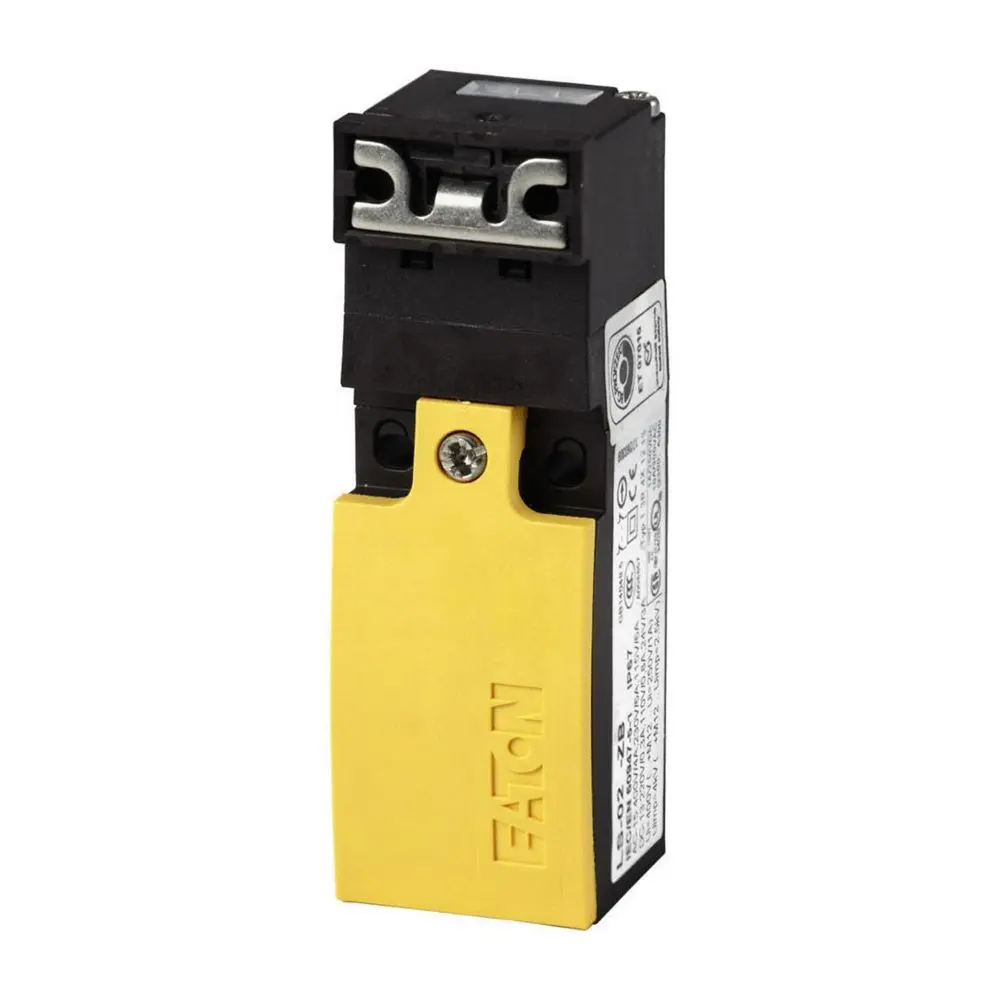

The Eaton LS-11S-ZB is a complete safety position switch with ZB actuator, insulated (plastic) housing, and spring clamp (Cage Clamp) connection. It provides 1 N/O + 1 N/C snap-action contacts with positive opening, rated to AC-15: 6 A at 24/230 V and 4 A at 400 V, and DC-13: 3 A at 24 V. It carries Ui 400 V and Uimp 4 kV, is specified to IP66 (general) and also listed as IEC IP65 with UL/CSA Type 3R/4X (indoor only)/12/13, and operates from −25 °C to +70 °C. The operating head can be rotated in 90° steps; do not use the switch as a mechanical stop. Certified to IEC/EN 60947-5, UL 508, CSA-C22.2 No. 14, CE.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Part No. | LS-11S-ZB |
| Catalog No. | 106870 |
| Product Type | Safety position switch (complete unit) |
| Actuator | ZB (rotatable head in 90° steps) |
| Contacts | 1 N/O + 1 N/C, snap-action, positive opening |
| Housing | Insulated material (plastic) |
| Connection Type | Cage Clamp (spring clamp) |
| Degree of Protection (general) | IP66 |
| Ambient Temperature | −25 °C … +70 °C |
| Notes | Do not use as a mechanical stop; head/actuator repositionable |
| Rated Insulation Voltage (Ui) | 400 V |
|---|---|
| Rated Impulse Withstand (Uimp) | 4 kV (AC 4000 V) |
| Operational Current (AC-15) | 6 A at 24 V; 6 A at 220–240 V; 4 A at 380–415 V |
| Operational Current (DC-13) | 3 A at 24 V; 0.6 A at 110 V; 0.3 A at 220 V |
| Supply Frequency | ≤ 400 Hz |
| Overvoltage Category / Pollution Degree | III / 3 |
| Short-Circuit Protection | gG/gL 6 A max fuse; Icc (conditional) 1 kA |
| Repetition Accuracy | 0.15 mm |
| Mechanical Life | 1.5 × 106 operations; ≤ 1800 ops/h |
| Actuating Force | 10 N (begin) / 5 N (end), plug-in/pull-out |
| Shock Resistance | 25 g (half-sine, 20 ms) |
| Terminal Capacities | Solid: 1×(0.5–1.5 mm²) or 2×(0.5–1.5 mm²); Flex w/ ferrule: 1×(0.5–1.5 mm²) or 2×(0.5–1.5 mm²) |
| Terminal Screw / Torque | PH1 / 0.4 Nm |
| Dimensions | 30 mm (W) × 96 mm (H) × 33.35 mm (L) |
| Protection Ratings (detail) | IEC: IP65; UL/CSA Types 3R, 4X (indoor only), 12, 13 |
| Approvals / Certifications | IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE; UL listed / CSA certified (NA) |
| IP Note | For IP65, use V-M20 (206910) cable glands (max 9 mm thread length) |
