Eaton / Moeller Series
6 A, 1 N/O + 1 N/C, Safety position switch, snap-action and positive opening contacts, M12 connector, IEC/EN

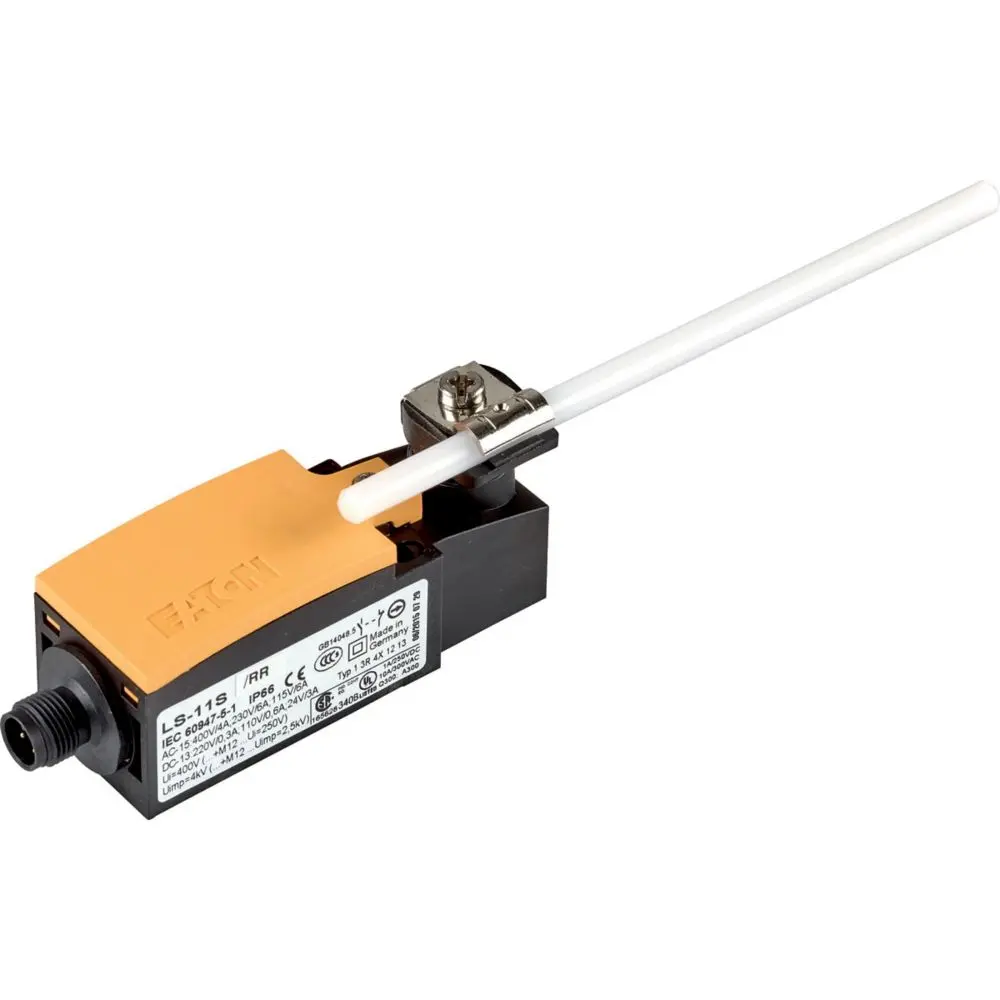

The Eaton Moeller® Series LS Position Switch LS-11S/RR-M12A is a compact, high-reliability safety position switch designed for industrial automation and machine safety applications. It features a rotatable actuating rod and snap-action contact system providing 1 N/O + 1 N/C contact configuration with positive opening for enhanced safety. This unit includes a pre-wired M12 connector for quick installation and a Cage Clamp connection system for secure wiring. The durable yellow insulated housing offers IP66 protection, suitable for harsh environments. Rated at 6 A operational current and 250 V insulation voltage, it ensures consistent performance across 8 million mechanical operations with a repetition accuracy of 0.15 mm. Operating reliably between –25 °C and +70 °C, the LS-11S/RR-M12A meets IEC/EN 60947 standards and is designed for up to 6000 operations per hour.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Catalog Number | 178144 |
| Model Code | LS-11S/RR-M12A |
| Product Type | Safety Position Switch |
| Actuator Type | Actuating Rod (Rotatable Head) |
| Contacts | 1 N/O + 1 N/C |
| Contact Type | Snap-Action with Positive Opening |
| Connection Type | Cage Clamp + M12 Connector |
| Enclosure Material | Insulated Plastic (Yellow Cover) |
| Mounting Position | As Required |
| Product Height | 155 mm |
| Product Width | 31 mm |
| Product Depth | 33.5 mm |
| Weight | 0.086 kg |
| Mechanical Lifespan | 8 Million Operations |
| Operating Frequency | 6000 Operations/h |
| Repetition Accuracy | 0.15 mm |
| Shock Resistance | 25 g (20 ms Half-Sinusoidal) |
| Accessories | M12 Connector Included |
| Rated Insulation Voltage (UI) | 250 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 2500 V AC |
| Rated Operational Current (AC-15) | 6 A @ 24 V / 1 A @ 230 V / 4 A @ 400 V |
| Rated Operational Current (DC-13) | 3 A @ 24 V / 0.3 A @ 220 V |
| Rated Conditional Short-Circuit Current (Iq) | 1 kA (Max 4 A gG/gL Fuse) |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Protection Rating | IP66 |
| Ambient Temperature Range | –25 °C to +70 °C |
| Actuating Torque of Rotary Drives | 0.2 Nm |
| Control Circuit Reliability | 1 failure per 10 million operations (@ 24 V DC / 5 mA) |
| Climatic Proofing | IEC 60068-2-30 / -2-78 (Damp Heat Cyclic and Constant) |
| Terminal Capacity (Solid) | 1 × (0.5 – 2.5 mm²) |
| Terminal Capacity (Flexible with Ferrule) | 1 × (0.5 – 1.5 mm²) |
| Operating Speed | Max 1.5 m/s (Mechanical Actuation) |
| Standards / Certifications | IEC/EN 60947 |
