Eaton / Moeller Series
6A, 1NO+1NC, miniature DIN limit switch, top push plunger, slow make-before-break with positive opening, UL/RoHS
The Eaton LS-Titan LS-11D miniature DIN limit switch is a compact, high-precision device featuring a top push plunger actuator with 1 normally open (NO) and 1 normally closed (NC) contact configuration. It employs a slow make-before-break mechanism with positive opening for reliable mechanical operation and safety compliance. The switch supports up to 6 A at 240 V AC and 3 A at 24 V DC, offering high durability and electrical reliability. Built with a polyamide PA66-GF25 enclosure, it provides robust protection and long life in industrial applications. The device maintains an accuracy of ±0.02 mm, uses Cage Clamp terminals, and meets IP66/IP67 environmental ratings. Certified to UL and RoHS, it is ideal for precise position sensing in compact or automated systems.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Series | LS-Titan |
| Catalog Number | LS-11D |
| Product Type | Miniature DIN Limit Switch |
| Switch Type | Top Push Plunger |
| Contact Configuration | 1 NO + 1 NC |
| Contact Operation | Slow make-before-break, positive opening |
| Mounting Type | DIN / panel mount |
| Accuracy | ±0.02 mm |
| Enclosure Material | Polyamide PA66-GF25 |
| Connection Type | Cage Clamps |
| Warranty | 1 year |
| Rated Operational Voltage (AC) | 240 V AC |
|---|---|
| Rated Operational Voltage (DC) | 24 V DC |
| Maximum AC Current | 6 A |
| Maximum DC Current | 3 A |
| Operating Temperature Range | −13 °F to 158 °F (−25 °C to +70 °C) |
| Environmental Protection | IP66 / IP67 |

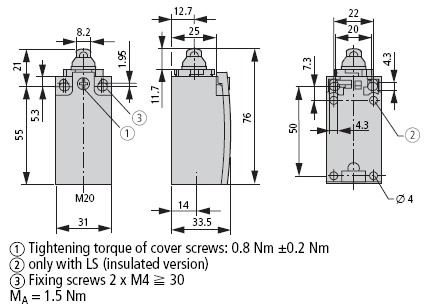

| Housing Dimensions (L × W × H) | 1.22 in × 1.32 in × 2.99 in |
| Weight | 0.1188 lb (0.054 kg) |
| Compliance | RoHS Compliant |
| Certifications | UL Listed |
