Eaton / Moeller Series
6A, 1NO+1NC, position switch, rotary lever, slow-action, IP66/IP67, CE/UL/CSA/IEC

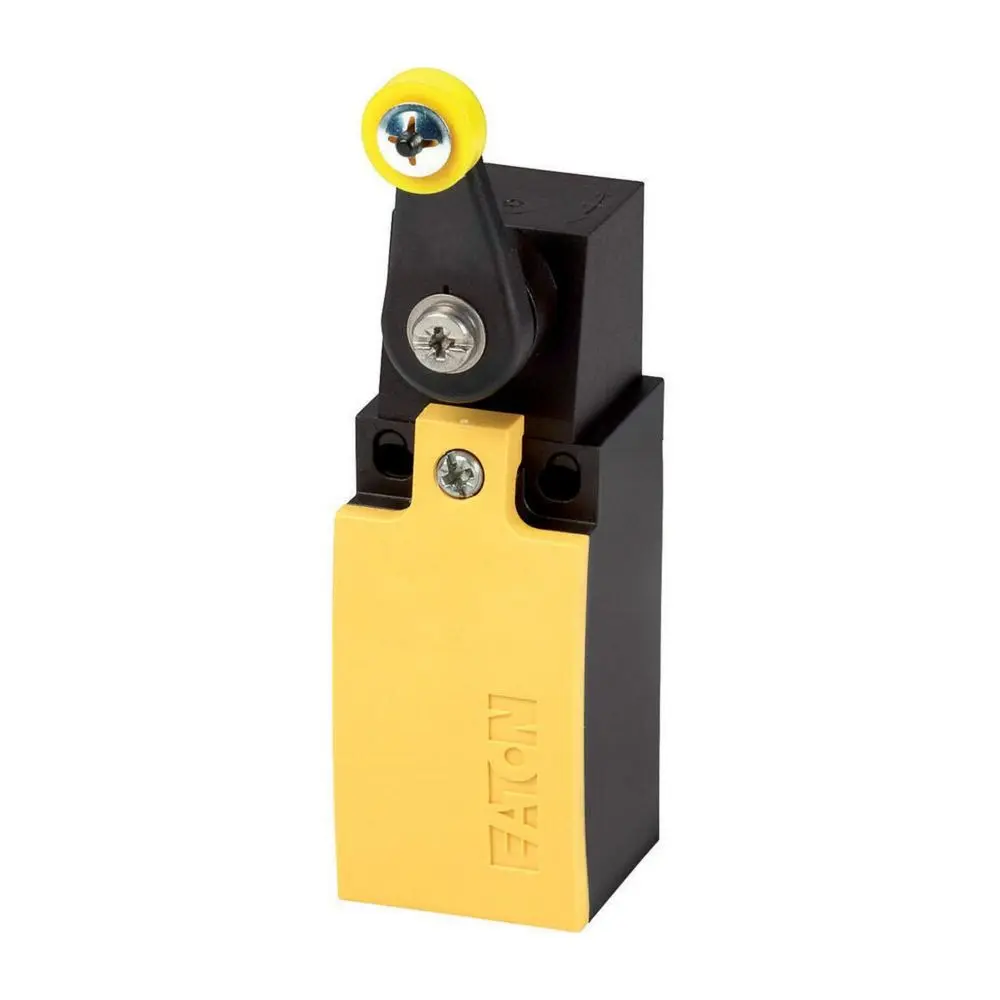

The Eaton Moeller® series LS Position Switch LS-11/RL is a rotary lever limit switch designed for mechanical position detection and safety monitoring in industrial automation systems. It features slow-action contacts (1 N/O + 1 N/C, Form A) with positive and forced opening operation for dependable safety performance. The device is built with a yellow insulated plastic housing, providing IP66/IP67 and NEMA 4X/13 protection, and operates within a temperature range of −25 °C to +70 °C. It supports up to 8 million mechanical operations at 6,000 cycles per hour, and includes Cage Clamp terminals for secure connections. Certified to CE, UL 508, CSA (C22.2 No. 14), and IEC/EN 60947-5 standards.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Catalog Number | 266111 |
| Model Code | LS-11/RL |
| EAN | 4015082661113 |
| Product Type | Position Switch (Rotary Lever) |
| Actuator Type | Rotary lever |
| Contacts | 1 N/O + 1 N/C (Form A) |
| Switch Function | Slow-action switch |
| Features | Positive opening; Forced opening; Rotatable head (90°) |
| Connection Type | Cage Clamp terminals |
| Mounting Position | As required |
| Housing Material | Plastic, insulated (yellow cover) |
| Housing Type | Cuboid |
| Operating Frequency | 6,000 operations/hour |
| Mechanical Lifespan | 8 million operations |

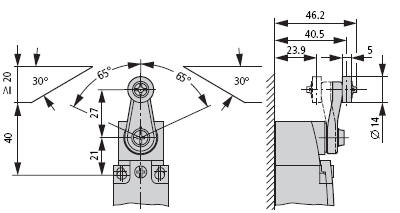

| Dimensions (H × W × D) | 110 mm × 31 mm × 33.5 mm |
| Sensor Height | 61 mm |
| Weight | 0.066 kg |
| Rated Insulation Voltage (Ui) | 400 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 4,000 V AC |
| AC-15 (24 V) | 6 A |
| AC-15 (125 V) | 6 A |
| AC-15 (230–240 V) | 6 A |
| AC-15 (380–415 V) | 4 A |
| DC-13 (24 V) | 3 A |
| DC-13 (110 V) | 0.6 A |
| DC-13 (125 V) | 0.8 A |
| DC-13 (220–230 V) | 0.3 A |
| Rated Conditional Short-Circuit Current (Iq) | 1 kA |
| Short-Circuit Protection | Max 6 A gG/gL fuse (contacts) |
| Degree of Protection | IP66/IP67; NEMA 4X, 13 |
| Ambient Temperature Range | −25 °C to +70 °C |
| Operating Speed | Max 1.5 m/s (mechanical actuation, α = 0°) |
| Shock Resistance | 25 g (20 ms half-sinusoidal) |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Repetition Accuracy | 0.15 mm |
| Terminal Capacity (Solid) | 1 × 0.5 – 2.5 mm² |
| Terminal Capacity (Flexible with Ferrule) | 1 × 0.5 – 1.5 mm² |
| Actuating Force (Start/End of Stroke) | 1.0 N / 8.0 N |
| Actuating Torque (Rotary Drives) | 0.2 Nm |
| Climatic Proofing | IEC 60068-2-30 / -78 (damp heat, cyclic and constant) |
| Control Circuit Reliability | 1 failure per 10 million operations (24 V DC / 5 mA) |
| Suitability | Safety functions |
| Design Standard | EN 50047 Form A; IEC/EN 60947-5 |
| Certifications | CE; UL 508 (File E29184); CSA (File 012528; CSA-C22.2 No. 14); IEC/EN 60947-5; UL NKCR; CSA 3211-03 |
