Eaton / Moeller Series
6A, 1NO+1NC, position switch, roller lever, slow-action, IP66/IP67, CE/UL/CSA/IEC

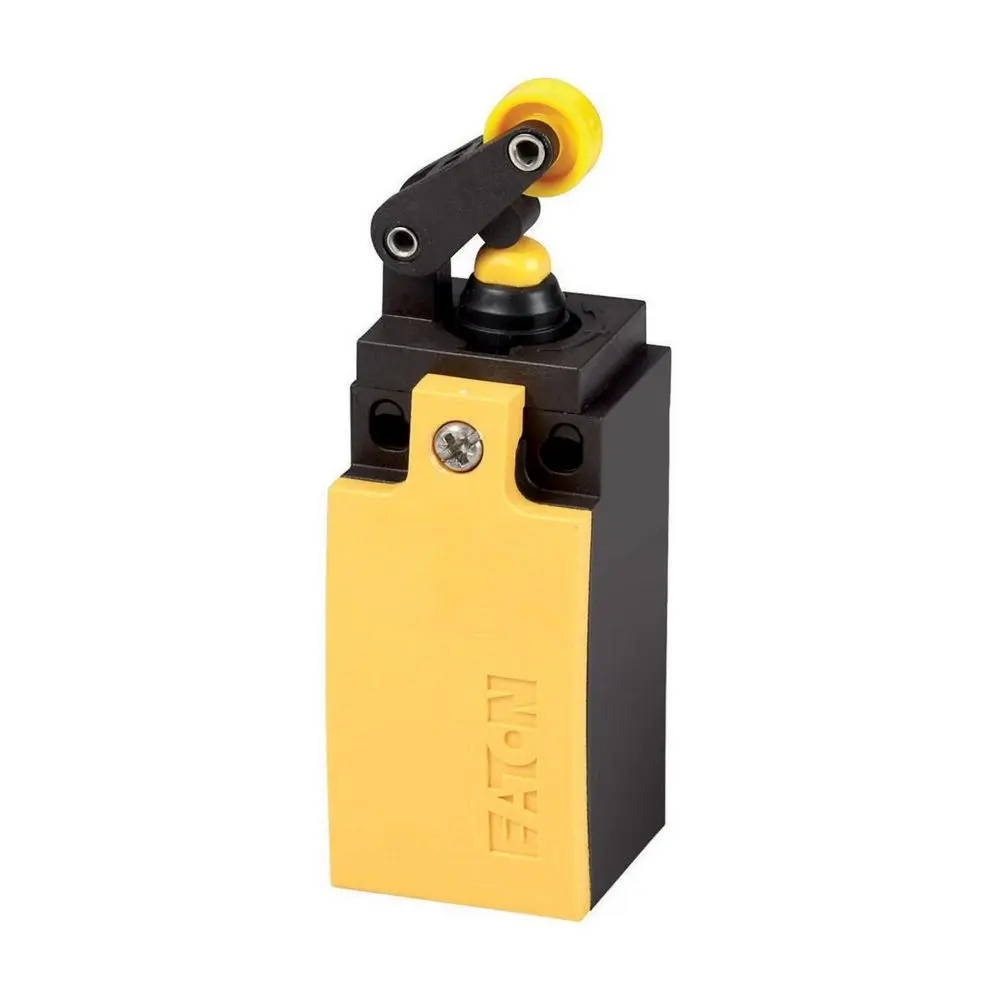

The Eaton Moeller® series LS Position Switch LS-11/LB is a high-performance roller lever switch with slow-action contacts (1 N/O + 1 N/C), designed for reliable mechanical position detection and safety control in industrial automation. It features positive and forced opening functionality for dependable operation, supporting up to 8 million mechanical cycles at a switching rate of 6,000 operations per hour. The switch offers IP66/IP67 protection, operates in a temperature range of −25 °C to +70 °C, and is housed in a yellow insulated plastic enclosure. It includes Cage Clamp terminals and a 90° rotatable head for versatile installation. Certified to CE, UL 508, CSA (CSA-C22.2 No. 14), and IEC/EN 60947-5 standards, meeting EN 50047 Form E requirements.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Catalog Number | 290175 |
| Model Code | LS-11/LB |
| EAN | 4015082901752 |
| Product Type | Position Switch (Roller Lever) |
| Actuator Type | Roller lever |
| Contacts | 1 N/O + 1 N/C (Form E) |
| Switch Function | Slow-action switch |
| Features | Positive opening; Forced opening; Rotatable head (90°) |
| Connection Type | Cage Clamp terminals |
| Mounting Position | As required |
| Housing Material | Plastic, insulated (yellow cover) |
| Operating Frequency | 6,000 operations/hour |
| Mechanical Lifespan | 8,000,000 operations |
| Dimensions (H × W × D) | 108 mm × 31 mm × 33.5 mm |
| Sensor Height | 61 mm |
| Weight | 0.062 kg |
| Rated Insulation Voltage (Ui) | 400 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 4,000 V AC |
| AC-15 (24 V) | 6 A |
| AC-15 (125 V) | 6 A |
| AC-15 (230–240 V) | 6 A |
| AC-15 (380–415 V) | 4 A |
| DC-13 (24 V) | 3 A |
| DC-13 (110 V) | 0.6 A |
| DC-13 (125 V) | 0.8 A |
| DC-13 (220–230 V) | 0.3 A |
| Rated Conditional Short-Circuit Current (Iq) | 1 kA |
| Short-Circuit Protection | Max 6 A gG/gL fuse (contacts) |
| Degree of Protection | IP66/IP67 (NEMA Other) |
| Ambient Temperature Range | −25 °C to +70 °C |
| Operating Speed | Max 1 m/s (mechanical actuation, α = 30°/45°) |
| Shock Resistance | 25 g (20 ms half-sinusoidal) |
| Overvoltage Category | III |
| Pollution Degree | 3 |
| Repetition Accuracy | 0.15 mm |
| Terminal Capacity (Solid) | 1 × 0.5 – 2.5 mm² |
| Terminal Capacity (Flexible with Ferrule) | 1 × 0.5 – 1.5 mm² |
| Actuating Force (Start/End of Stroke) | 1.0 N / 8.0 N |
| Actuating Torque (Rotary Drives) | 0.2 Nm |
| Climatic Proofing | IEC 60068-2-30 / -78 (damp heat, cyclic and constant) |
| Control Circuit Reliability | 1 failure per 10 million operations (24 V DC / 5 mA) |
| Housing Type | Cuboid |
| Suitability | Safety functions |
| Design Standard | EN 50047 Form E; IEC/EN 60947-5 |
| Certifications | CE; UL 508 (File E29184); CSA (File 012528; CSA-C22.2 No. 14); IEC/EN 60947-5; UL NKCR; CSA 3211-03 |
