Eaton / Moeller Series
6A, 2NC, safety position switch, rounded plunger, positive/forced opening, CE/UL/CSA/IEC
The Eaton Moeller® series LS-02 Safety Position Switch is a basic, expandable device with a rounded plunger actuator and two normally closed (2 NC) slow-action contacts. Designed for reliable position detection in safety-critical machinery, it features positive and forced opening contact operation and supports up to 6,000 operations per hour with a mechanical life of 8 million cycles. The insulated plastic yellow housing is IP66/IP67 rated, ensuring durability in demanding environments. The switch offers Cage Clamp connections, high electrical reliability, and is compliant with CE, UL 508, CSA C22.2 No. 14, and IEC/EN 60947-5 standards.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller® |
|---|---|
| Series | LS |
| Catalog Number | 266107 |
| Model Code | LS-02 |
| EAN | 4015082661076 |
| Product Type | Safety Position Switch |
| Actuator Type | Rounded Plunger |
| Switch Function Type | Slow-action switch |
| Contact Configuration | 2 NC |
| Safety Features | Positive and forced opening |
| Mounting Position | As required |
| Operating Frequency | 6,000 operations/hour |
| Lifespan | 8,000,000 mechanical operations |
| Ambient Operating Temperature | −25 °C to +70 °C |

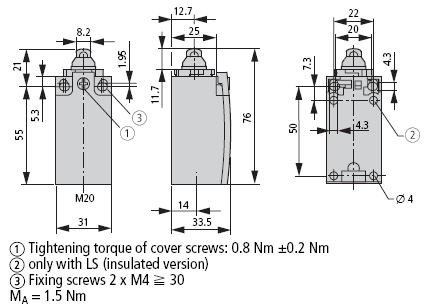

| Dimensions (L × W × H) | 33.5 × 31 × 76.5 mm |
| Product Weight | 0.05 kg |
| Pollution Degree | 3 |
| Overvoltage Category | III |
| Operating Speed (DIN Cam) | Max 1 m/s (α = 0°) / 0.5 m/s (α = 30°) |
| Suitable For | Safety functions |
| Rated Insulation Voltage (Ui) | 400 V |
|---|---|
| Rated Impulse Withstand Voltage (Uimp) | 4000 V AC |
| Rated Operational Voltage | Up to 400 V AC |
| Rated Operational Current (AC-15, 230 V) | 6 A |
| Rated Operational Current (DC-13, 24 V) | 3 A |
| Rated Conditional Short-Circuit Current (Iq) | 1 kA |
| Short-Circuit Protection | Max 6 A gG/gL fuse |
| Control Circuit Reliability | 1 failure per 10 million operations (24 V DC / 5 mA) |
| Actuating Force (Begin/End of Stroke) | 1.0 N / 8.0 N |
| Actuating Torque (Rotary Drives) | 0.2 Nm |
| Shock Resistance | 25 g (20 ms half-sine) |
| Temperature Resistance | 100 °C (roller head contact) |
| Connection Type | Cage Clamp |
| Terminal Capacity (Flexible w/ Ferrule) | 1 × 0.5–1.5 mm² |
| Terminal Capacity (Solid) | 1 × 0.5–2.5 mm² |
| Degree of Protection | IP66/IP67; NEMA Other |
| Enclosure Material | Plastic (insulated), Yellow cover |
| Certifications | CE; UL 508 (File E29184, Cat. NKCR); CSA C22.2 No. 14 (File 012528); IEC/EN 60947-5 |
