Eaton / Moeller Series
Adjustable roller lever, 150 mm length, 15°/50° actuation angle, 2.3 m/s max. lateral speed, for R-AT4 rotary drive, IEC/EN 61439

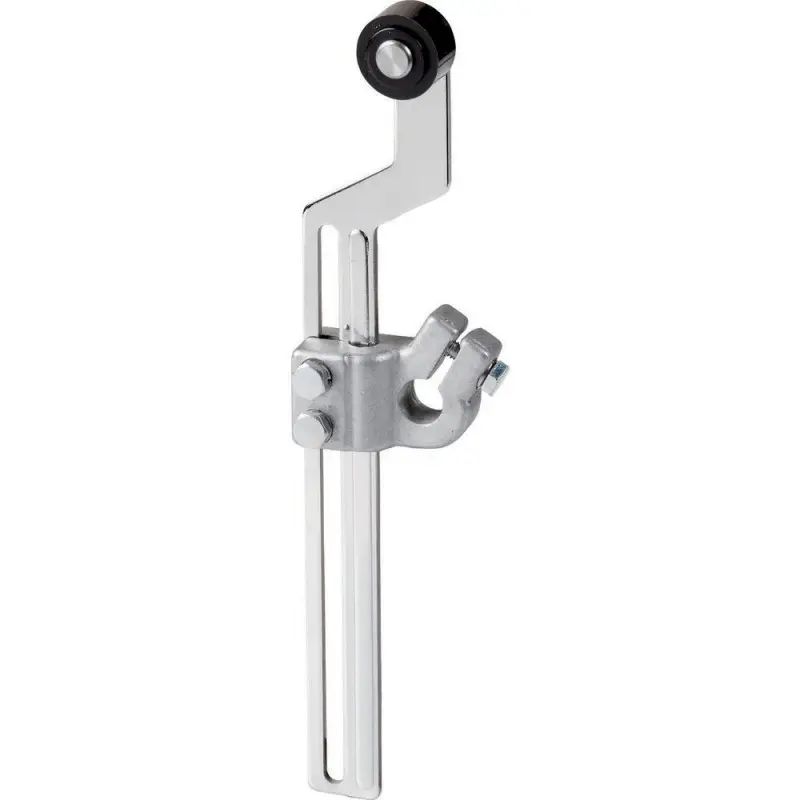

Eaton Moeller HV is an adjustable roller lever actuator designed for use with the R-AT4 rotary drive head in the AT4 position switch system. The lever offers an actuation angle of 15° or 50° and supports a maximum lateral operating speed of 2.3 m/s. With a total lever length of 150 mm, the HV provides precise mechanical motion transfer for industrial applications. Built for durability and compliance with IEC/EN 61439 standards, it withstands ambient temperatures from −25 °C to +70 °C and meets all product standard requirements for corrosion resistance, thermal stability, and mechanical performance.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Part No. | HV |
| Catalog No. | 019631 |
| Product Type | Adjustable roller lever |
| Lever Length | 150 mm |
| Angle of Actuation | 15° / 50° |
| Maximum Operating Speed (lateral) | 2.3 m/s |
| Compatible With | R-AT4 rotary drive head |
| Mounting Type | Direct coupling to rotary head |
| Type of Control Element | Adjustable roller lever |
| Degree of Protection (IP) | Dependent on mounting enclosure (up to IP65) |
|---|---|
| Operating Ambient Temperature | −25 °C to +70 °C |
| Material | Metal lever with insulated mounting interface |
| Rated Operational Current (In) | 0 A (non-current-carrying mechanical component) |
| Heat Dissipation | 0 W (non-electrical component) |
| Resistance Properties | Corrosion-resistant, thermally stable, heat and fire resistant |
| UV Resistance | Available on request |
| Compliance | IEC/EN 61439 verified for mechanical and thermal performance |
