Eaton / Cutler-Hammer
1200A, 2P, breaker, fixed thermal-magnetic, UL 489
The Eaton HLDDC21200 is a two-pole, 1200 amp molded case circuit breaker from the Series C PVGard product line, specifically designed for DC and solar power applications. It features a fixed thermal and fixed magnetic trip mechanism housed in an L-frame, offering high reliability in PV systems. With a voltage rating of 250 Vdc and an interrupting capacity of 50 kAIC at 250 Vdc, this breaker is ideal for demanding direct current protection scenarios. It includes line and load terminals and is UL 489 certified for safety and performance.
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton |
|---|---|
| Model | HLDDC21200 |
| Series | Series C PVGard |
| Product Type | Molded Case Circuit Breaker |
| Frame Size | L-frame |
| Trip Type | Fixed Thermal, Fixed Magnetic (T186) |
| Poles | 2 |
| Amperage | 1200 A |
| Breaker Type | HLD |
| Operator | Complete Breaker (Line and Load Terminals) |
| Voltage Rating | 250 Vdc |
|---|---|
| Insulation Voltage | Not specified |
| Interrupting Capacity | 50 kAIC at 250 Vdc |
| Terminals | Line and Load |
| Class | Vdc |
| Certifications | UL 489 |
| Dimensions (H × W × D) | 8.25 × 8.25 × 4.06 in |
| Weight | 35 lb |
| 250 Vdc Maximum—Two Poles in Series | |

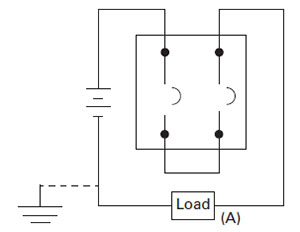

Suitable for use on ungrounded systems, or grounded systems that have one end of load (A) connected to grounded terminal, opposite poles in series connection. |

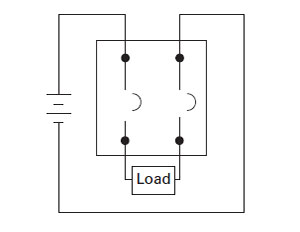

Suitable for use on ungrounded systems only. |
| 500 Vdc or 600 Vdc Maximum—Three Poles in Series | |

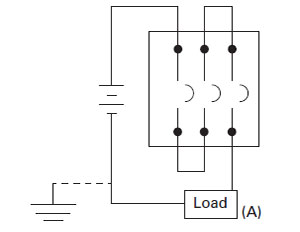

Suitable for use on ungrounded systems, or grounded systems that have one end of load (A) connected to grounded terminal, opposite poles in series connection. |

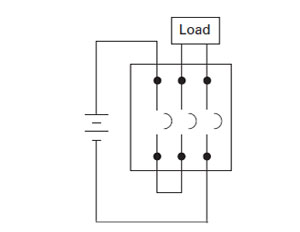

Suitable for use on ungrounded systems only. |
| 750 Vdc Maximum—Four Poles in Series | |
|
Suitable for use on ungrounded systems, or grounded systems that have one end of load (A) connected to grounded terminal, opposite poles in series connection. |
Suitable for use on ungrounded systems only. |
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
