Eaton / Moeller Series
15A, 1 pole, C-Char, AC, UL-listed, IP20, IP40
Eaton FAZ-C15/1-NA Overcurrent Switch, 15A, 1 pole, C-Char, AC. Rated operational voltage 277/480 Y AC, 48 V DC. Suitable for North America, UL-listed.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Specification | Value |
|---|---|
| Part No. | FAZ-C15/1-NA |
| Article No. | 102089 |
| Catalog No. | FAZ-C15/1-NA |
| Application | Switchgear for export to North America (UL-listed) |

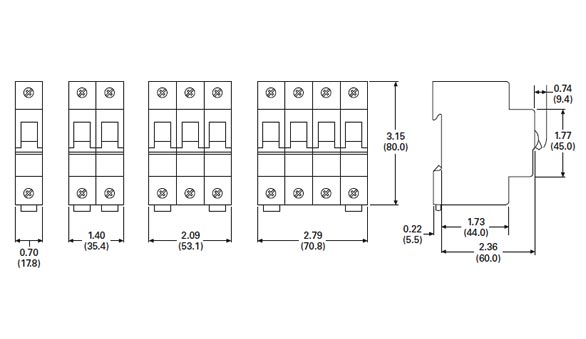

| Mounting Width per Pole | 17.7 mm |
| Terminal Protection | Finger and back-of-hand proof to BGV A2 |
| Mounting Position | As required |
| Standard Front Dimension | 45 mm |
| Enclosure Height | 105 mm |
| Specification | Value |
|---|---|
| Number of Poles | 1 pole |
| Tripping Characteristic | C |
| Rated Current | 15 A |
| Rated Switching Capacity | 15 kA |
| Rated Operational Voltage AC | 277/480 Y |
| Rated Operational Voltage DC | 48 V |
| Mechanical Lifespan | > 20000 Operations |
| Degree of Protection | IP20, IP40 (when fitted) |
| Operating Ambient Temperature | -25°C to 75°C |
