Eaton / Moeller Series
0.5A, 1P, C-curve
Eaton/Moeller FAZ-C0.5/1-RT-SP miniature circuit breaker, 0.5A, 1-pole, C-curve (5–10× In) tripping characteristic, equipped with ring-tongue terminals for secure connections in industrial applications. UL 489 listed and CSA certified for branch circuit protection with a 10 kAIC interrupting capacity (UL/CSA) and 15 kAIC (IEC 60947-2). Current-limiting thermal-magnetic design ensures rapid short-circuit interruption and reduced let-through energy. Compact 17.7 mm width per pole for DIN rail mounting, with trip-free operation, captive screws, and contact position indicator. Ideal for equipment protection in motor control circuits, PLC I/O, power supplies, and other sensitive loads.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Model | FAZ-C0.5/1-RT-SP |
|---|---|
| Obsolete Eaton Part Number | WMZT1CX0T |
| Type | Miniature Circuit Breaker with Ring-Tongue Terminals |
| Amperage | 0.5A |
| Poles | 1 |

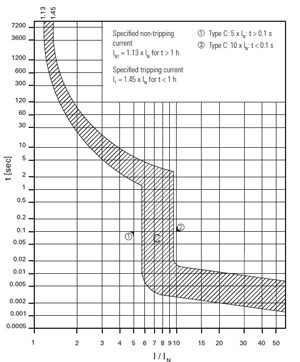

| Trip Curve | C Curve (5–10× In) |
| Voltage Rating | 277/480 VAC, 125 VDC per pole |
| Interrupting Capacity | 10 kAIC (UL/CSA), 15 kAIC (IEC) |
| Protection Type | Thermal-Magnetic, Current Limiting |
| Mounting | DIN Rail |
| Module Width | 17.7 mm per pole |
| Terminal Type | Ring-Tongue |
| Standards | UL 489, CSA C22.2 No.5, IEC 60947-2 |
| Certifications | UL Listed, CSA Certified, CE Marked |
| Applications | Branch Circuit Protection, Motor Control, PLC I/O, Power Supplies, Control Instrumentation |
