Eaton / Moeller Series

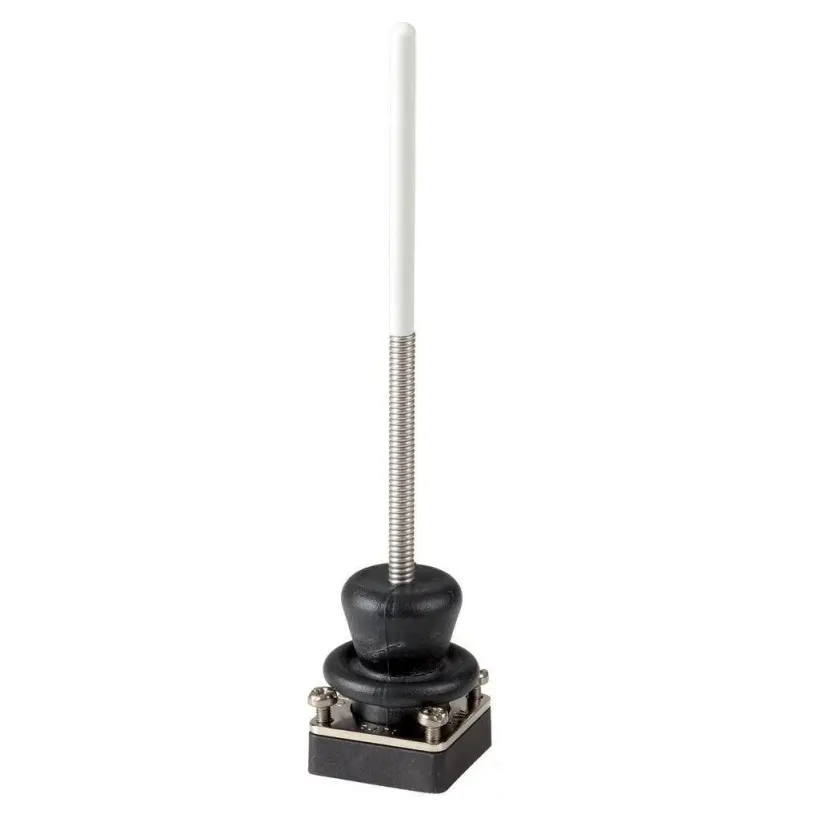

Spring-rod actuator, 130 mm length, 1 m/s max. lateral speed, 90° rotatable, for I-AT4 and IA-AT4 enclosures, snap-action contact only
Eaton Moeller F2-AT4 is a spring-rod actuator designed for use with I-AT4 and IA-AT4 insulated enclosures in the AT4 system series. It features a 130 mm flexible rod and supports a maximum lateral operating speed of 1 m/s. The actuator head can be rotated at 90° intervals for different approach directions, allowing flexible installation. The F2-AT4 is approved for use only with snap-action contacts and is compliant with IEC/EN 61439 design-verification requirements for mechanical durability, corrosion resistance, and thermal stability. It operates reliably within ambient temperatures from −25 °C to +70 °C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Part No. | F2-AT4 |
| Catalog No. | 036214 |
| Product Type | Spring-rod actuator |
| Rod Length | 130 mm |
| Maximum Operating Speed (lateral) | 1 m/s |
| Head Rotation | 90° intervals (adjustable) |
| Compatible With | I-AT4, IA-AT4 enclosures |
| Mounting Type | For flush mounting in insulated enclosure |
| Type of Control Element | Spring-rod |
| Permitted Contact Type | Snap-action contact only |
| Degree of Protection (IP) | Dependent on mounting enclosure (up to IP65) |
|---|---|
| Operating Ambient Temperature | −25 °C to +70 °C |
| Material | Insulated (plastic housing) |
| Rated Operational Current (In) | 0 A (non-current-carrying mechanical component) |
| Heat Dissipation | 0 W (non-electrical component) |
| Resistance Properties | Corrosion-resistant, thermally stable, heat and fire resistant |
| UV Resistance | Available on request |
| Compliance | IEC/EN 61439 verified for mechanical and thermal performance |
