Eaton / Moeller Series

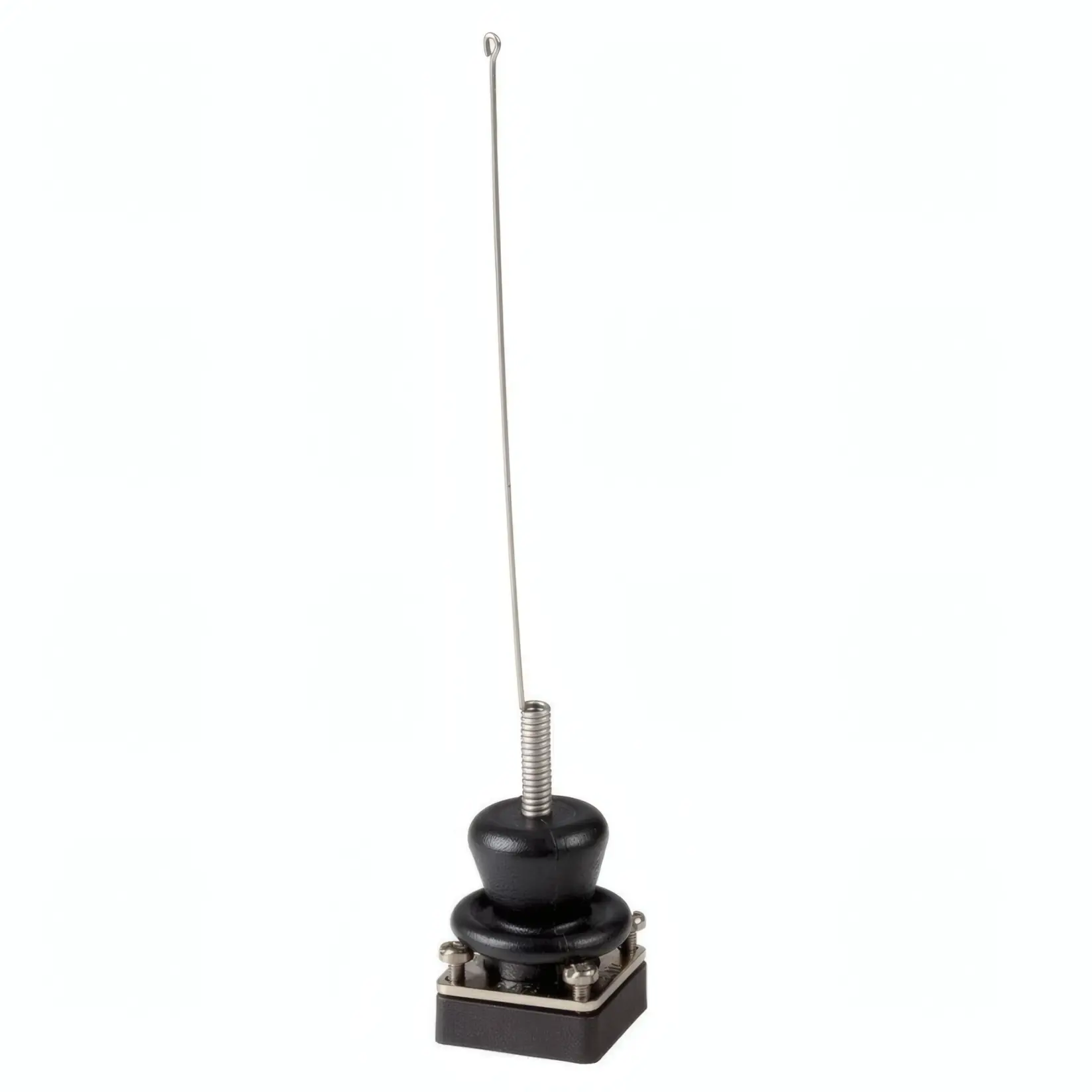

Spring-rod actuator, 160 mm length, 2 m/s max. lateral speed, 90° rotatable, for I-AT4 and IA-AT4 enclosures, snap-action contact only
Eaton Moeller F-AT4 is a spring-rod actuator designed to complete insulated enclosures I-AT4 and IA-AT4 within the AT4 system range. It features a 160 mm flexible rod suitable for applications requiring deflection-based actuation and supports a maximum lateral operating speed of 2 m/s. The actuator head can be rotated in 90° increments to match different approach directions. This unit is permissible only for use with snap-action contacts and complies with IEC/EN 61439 mechanical and material verification standards. The F-AT4 provides reliable mechanical performance in ambient temperatures from −25 °C to +70 °C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Part No. | F-AT4 |
| Catalog No. | 090792 |
| Product Type | Spring-rod actuator |
| Rod Length | 160 mm |
| Maximum Operating Speed (lateral) | 2 m/s |
| Head Rotation | 90° intervals (adjustable) |
| Compatible With | I-AT4, IA-AT4 enclosures |
| Mounting Type | For flush mounting in insulated enclosure |
| Type of Control Element | Spring-rod |
| Permitted Contact Type | Snap-action contact only |
| Degree of Protection (IP) | Dependent on mounting enclosure (up to IP65) |
|---|---|
| Operating Ambient Temperature | −25 °C to +70 °C |
| Material | Insulated (plastic housing) |
| Rated Operational Current (In) | 0 A (non-current-carrying mechanical component) |
| Heat Dissipation | 0 W (non-electrical component) |
| Resistance Properties | Corrosion-resistant, thermally stable, heat and fire resistant |
| UV Resistance | Available on request |
| Compliance | IEC/EN 61439 verified for mechanical and thermal performance |
