Eaton / Moeller Series
Spring-rod actuator, sideways operation, rotatable 90°, for AT0 series, snap-action compatible, IEC/EN 61439

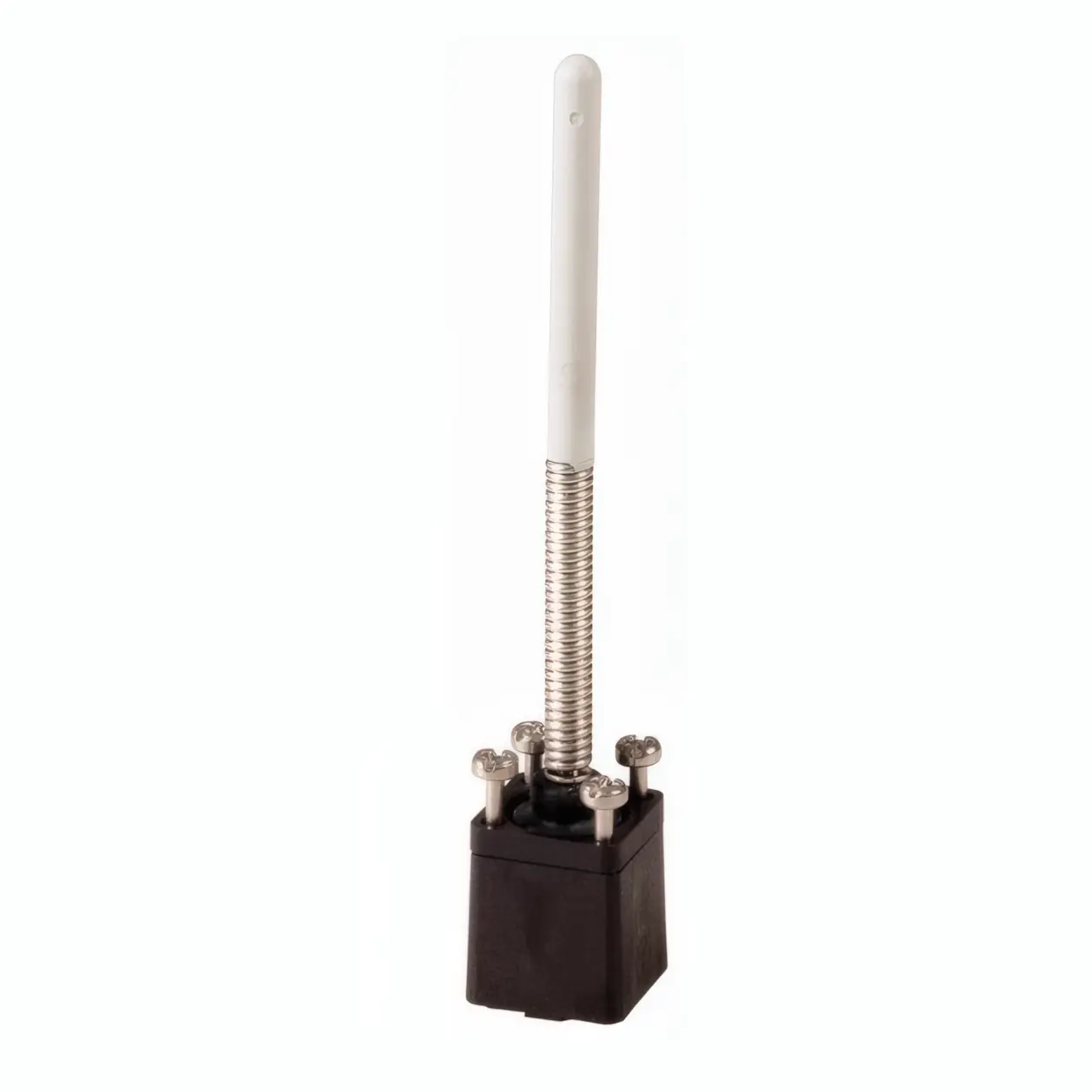

The Eaton Moeller F-AT0 is a spring-rod actuator head designed for use with Eaton AT0 series basic position switches. It enables sideways mechanical actuation and is compatible only with snap-action contact units. The spring rod allows flexible, multidirectional movement, ideal for applications requiring sensitive position detection. The actuator head can be rotated in 90° intervals to adapt to various approach directions. Built for industrial environments, the F-AT0 meets IEC/EN 61439 design verification requirements and offers reliable performance under operating temperatures from −25 °C to +70 °C.
Country of Origin: DE
We source directly from Eaton - 100% genuine, new-in-box certified parts.
| Brand | Eaton Moeller |
|---|---|
| Model | F-AT0 |
| Catalog Number | 050772 |
| Product Type | Spring-Rod Actuator |
| Part Group Reference | AT0 |
| Product Range | Operating Heads |
| Mode of Operation | Sideways |
| Actuator Type | Spring-Rod |
| Compatible Contact Mechanism | Snap-action Contact Only |
| Head Rotation | Rotatable 90° Intervals |
| Safety Rating | Not for use as a safety position switch |
| Degree of Protection | As per AT0 base unit (up to IP65) |
|---|---|
| Operating Temperature (Min) | −25 °C |
| Operating Temperature (Max) | +70 °C |
| Corrosion Resistance | Meets product standard requirements |
| Thermal Stability | Complies with IEC/EN 61439 |
| Resistance to Heat and Fire | Meets standard requirements |
| UV Resistance | On request |
| Clearances & Creepage Distances | Meets product standard requirements |
| Mechanical Function | Complies with design and instruction leaflet (IL) |
| Compliance Standards | IEC/EN 61439 | EN 50047 |
| ETIM Classification | EG000026 – Sensors / EC001483 – Drive Head for Position Switches |
| eCl@ss Code | 27-27-06-04 [BAA083012] |
| Certifications | CE |
